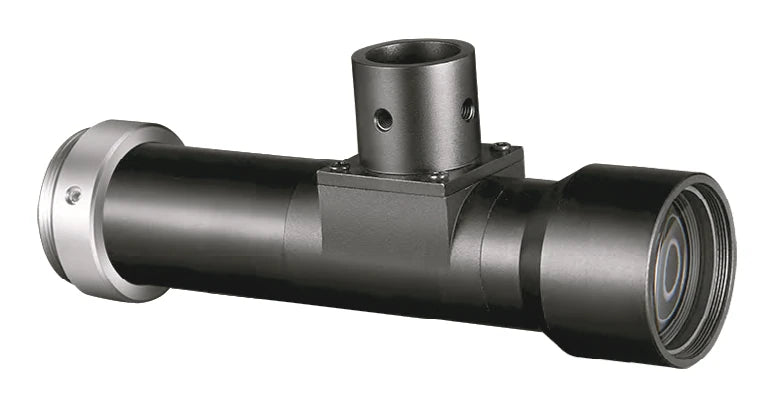

Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long (LS-TCL-2857)
  • Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long (LS-TCL-2857)

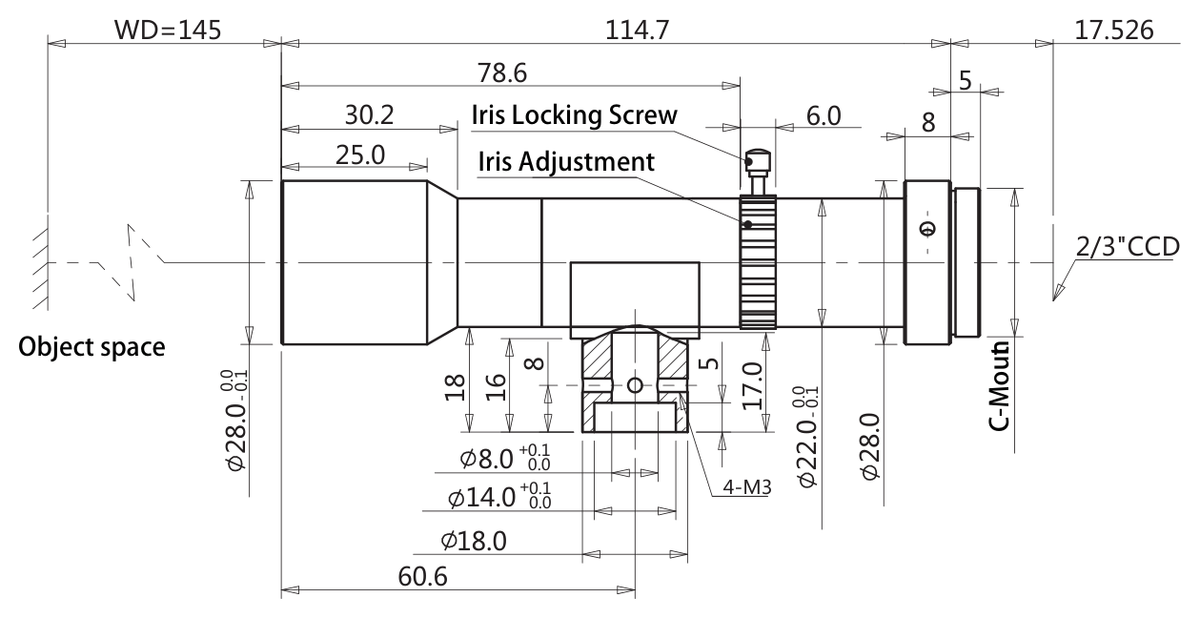

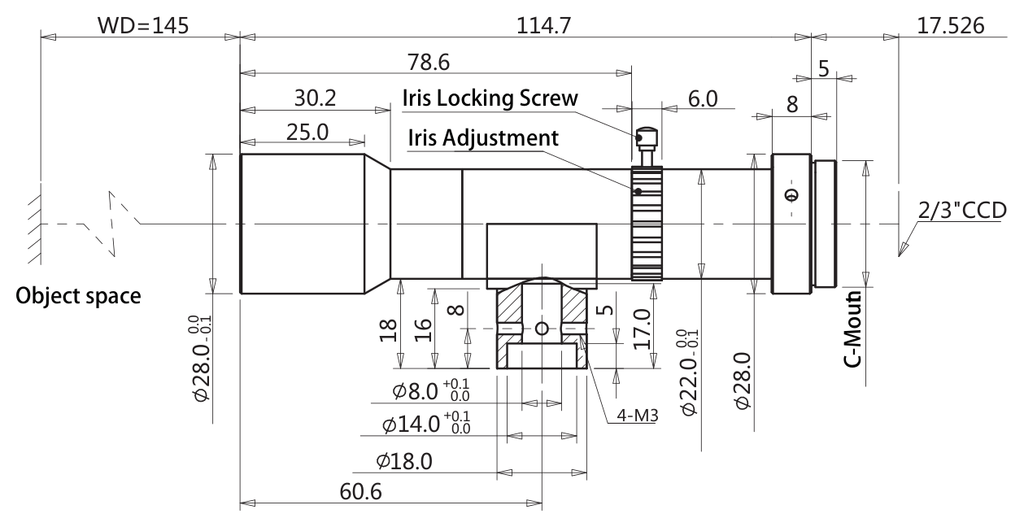

  • LS-TCL-2857 dimensions (mm)

Telecentric lenses

Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long (LS-TCL-2857)

Model LS-TCL-2857

  • Magnification0.7x
  • MountC-mount
  • Sensor2/3"
  • Working distance145±2
  • Aperture16.8
  • Resolution16.2
$1,089.00

Ships in 2-3 weeks

0.6 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long (LS-TCL-2857)LS-TCL-2857

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2857
NA0.0207

Optics

Magnification (x)0.7
Working distance (mm)145±2
Aperture (F/#)16.8
Telecentricity typical (max) (deg)<0.1
Distortion typical (max) (%)<0.6
MTF30 (lp/mm)55
Depth of field (mm)2.7
Field of view with ICX625/655 (8.47x 7.10 sensor) (mm x mm)12.1x10.1
Coaxial lightYes
IrisYes

Sensor and imaging

Max sensor size (dia. mm)11.0(2/3")
Resolution (μm)16.2

Mechanical

MountC
Length (mm)114.7
Shipping weight0.60 kg
