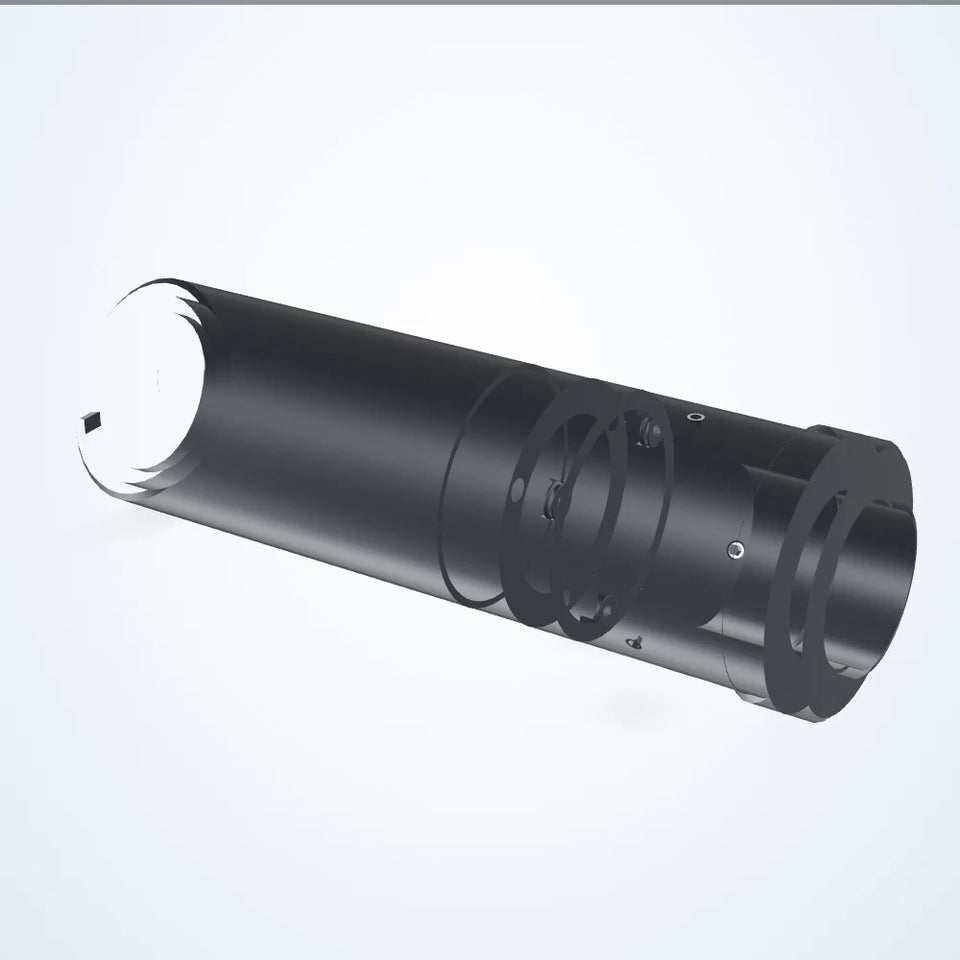

Telecentric lens series, 1/1.2", C-mount (S14)

Telecentric lenses

Telecentric lens series, 1/1.2", C-mount (S14)

  • 12 models
  • from $2,349.00
  • Series LS-TCL-S14

The Telecentric lens series, 1/1.2", C-mount (S14) is a range of 12 telecentric lenses from LumaSpec Vision, from $2,349.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 12 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.045×, 0.056×, 0.074×, 0.087×, 0.114×, 0.134×, 0.166×, 0.19×, 0.222×, 0.295×, 0.424×, 0.639×
Mount
C-mount
Image circle
11-16 mm
Type
Object-side telecentric
Magnification
Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x
Working distance
Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
Sensor format
1/1.2"

All 12 models in the Telecentric lens series, 1/1.2", C-mount (S14)

Link
LS-TCL-02230.639×11 μm44.3 mm125.4 x 37.7 x 37.7 mm$2,349.00quoteView
LS-TCL-02240.424×16 μm67.2 mm150.2 x 44 x 44 mm$2,489.00quoteView
LS-TCL-02250.295×24 μm102.6 mm177.6 x 61 x 61 mm$2,749.00quoteView
LS-TCL-02260.222×23 μm132.4 mm215.9 x 75 x 75 mm$2,879.00quoteView
LS-TCL-02270.19×27 μm157.8 mm238.7 x 80 x 80 mm$3,139.00quoteView
LS-TCL-02280.166×31 μm181.9 mm259.8 x 100 x 100 mm$3,399.00quoteView
LS-TCL-02290.134×38 μm226.8 mm305.4 x 116 x 116 mm$3,919.00quoteView
LS-TCL-02300.114×45 μm278.6 mm342.7 x 143 x 143 mm$4,739.00quoteView
LS-TCL-02310.087×58 μm334.6 mm428.3 x 180 x 180 mm$5,909.00quoteView
LS-TCL-02320.074×69 μm396 mm487.8 x 200 x 200 mm$7,229.00quoteView
LS-TCL-02330.056×91 μm527.6 mm628.2 x 260 x 260 mm$11,619.00quoteView
LS-TCL-02340.045×113 μm492.9 mm788.4 x 322 x 322 mm$15,619.00quoteView
