Telecentric lenses

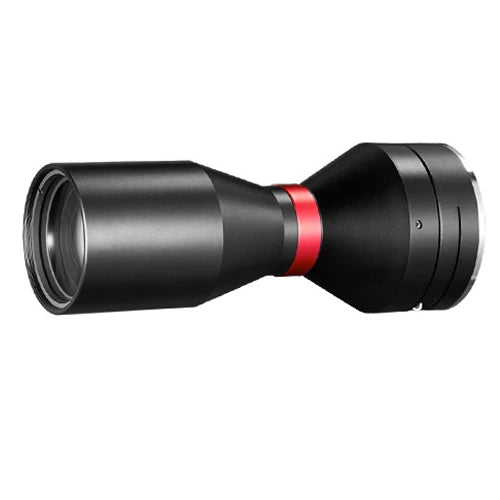

Bi-telecentric lens (VCM175B series)
- 10 models
- from $999.00
- Series LS-VCM175B
The Bi-telecentric lens (VCM175B series) is a range of 10 telecentric lenses from LumaSpec Vision, from $999.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.291x, WD 238 mm, 1.75", F-mount, 0.322x, WD 208 mm, 1.75", F-mount, 0.362x, WD 230 mm, 1.75", F-mount, 0.402x, WD 178 mm, 1.75", F-mount, 0.452x, WD 187 mm, 1.75", F-mount, 0.517x, WD 138 mm, 1.75", F-mount, 0.603x, WD 128 mm, 1.75", F-mount, 0.69x, WD 118 mm, 1.75", F-mount, 0.801x, WD 111 mm, 1.75", F-mount, 1.117x, WD 72 mm, 1.75", F-mount
- Mount
- F-mount
- Image circle
- 22-30 mm
- Type
- Bi-telecentric
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 4/3" - APS-C
- Magnification
- 0.3-0.6x, 0.6-1x
Features
- Optimized for 4/3"~35mm F-Mount cameras
- Perfectly suitable for 4K and 8K line scan cameras
- FOV ranges from 26mm to 300mm
- Very high resolution, low distortion and homogeneous image quality
- Yield constant magnification over defined depth of field
- Customized mounts available.
All 10 models in the Bi-telecentric lens (VCM175B series)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-VCM175B-26-AL | 1.117x, WD 72 mm, 1.75", F-mount | 72±2 | 15 | $999.00 | View | |
| LS-VCM175B-36-AL | 0.801x, WD 111 mm, 1.75", F-mount | 0.801 | 111±2 | 13.6 | $1,039.00 | View |
| LS-VCM175B-42P-AL | 0.69x, WD 118 mm, 1.75", F-mount | 0.690 | 118±2 | 11.3 | $1,109.00 | View |
| LS-VCM175B-48-AL | 0.603x, WD 128 mm, 1.75", F-mount | 0.603 | 128±2 | 11.4 | $1,199.00 | View |
| LS-VCM175B-56-AL | 0.517x, WD 138 mm, 1.75", F-mount | 0.517 | 138±2 | 8.5 | $1,299.00 | View |
| LS-VCM175B-64-AL | 0.452x, WD 187 mm, 1.75", F-mount | 0.452 | 187±2 | 13.6 | $1,409.00 | View |
| LS-VCM175B-72-AL | 0.402x, WD 178 mm, 1.75", F-mount | 0.402 | 178±2 | 8.5 | $1,519.00 | View |
| LS-VCM175B-80P-AL | 0.362x, WD 230 mm, 1.75", F-mount | 0.362 | 230±2 | 8.5 | $1,619.00 | View |
| LS-VCM175B-90-AL | 0.322x, WD 208 mm, 1.75", F-mount | 0.322 | 208±2 | 8.5 | $1,749.00 | View |
| LS-VCM175B-100P-AL | 0.291x, WD 238 mm, 1.75", F-mount | 238 ± 3 | 8.5 | $2,269.00 | View |
