Telecentric lenses

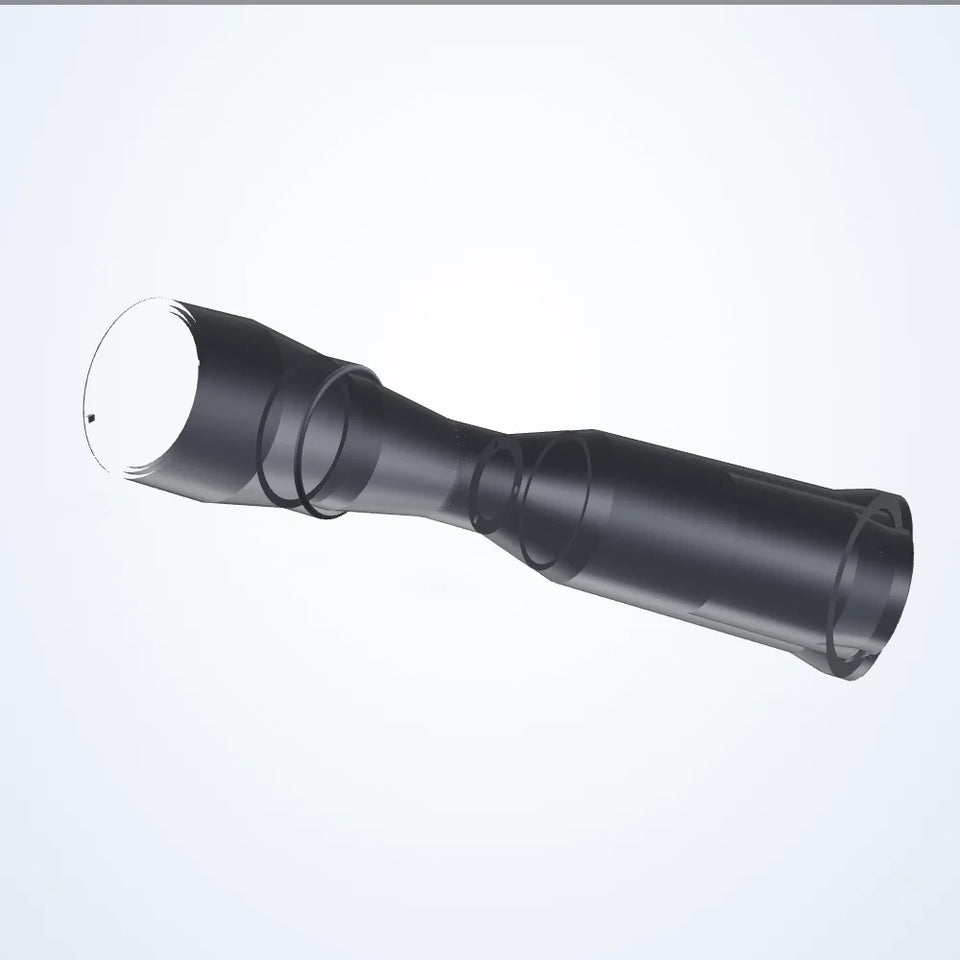

Telecentric lens series (S12)

27 models
from $4,869.00
Series LS-TCL-S12

The Telecentric lens series (S12) is a range of 27 telecentric lenses from LumaSpec Vision, from $4,869.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 27 models Series datasheet (PDF)

The series at a glance

Sizes / versions: 0.1×, 0.115×, 0.144×, 0.196×, 0.233×, 0.306×, 0.376×, 0.465×, 0.531×, 0.635×, 0.75×, 0.838×, 1.208×, 1.825×
Mount: M42, F-mount
Image circle: 30-45 mm
Type: Object-side telecentric
Magnification: 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
Working distance: Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
Sensor format: APS-H / Full frame

All 27 models in the Telecentric lens series (S12)

						Link
LS-TCL-0193	0.75×	14 μm	35mm Full Frame	125.6 mm	$4,869.00quote	View
LS-TCL-0147	1.825×	6 μm	APS-H	42.3 mm	$5,479.00quote	View
LS-TCL-0148	1.825×	6 μm	APS-H	42.3 mm	$5,479.00quote	View
LS-TCL-0149	1.208×	8 μm	APS-H	66.7 mm	$5,639.00quote	View
LS-TCL-0150	1.208×	8 μm	APS-H	66.7 mm	$5,639.00quote	View
LS-TCL-0151	0.838×	9 μm	APS-H	101.9 mm	$6,239.00quote	View
LS-TCL-0152	0.838×	9 μm	APS-H	101.9 mm	$6,239.00quote	View
LS-TCL-0153	0.635×	12 μm	APS-H	131.1 mm	$6,399.00quote	View
LS-TCL-0154	0.635×	12 μm	APS-H	131.1 mm	$6,399.00quote	View
LS-TCL-0155	0.531×	13 μm	APS-H	136.5 mm	$6,549.00quote	View
LS-TCL-0156	0.531×	13 μm	APS-H	136.5 mm	$6,549.00quote	View
LS-TCL-0157	0.465×	15 μm	APS-H	157.6 mm	$6,699.00quote	View
LS-TCL-0158	0.465×	15 μm	APS-H	157.6 mm	$6,699.00quote	View
LS-TCL-0159	0.376×	19 μm	APS-H	199 mm	$6,849.00quote	View
LS-TCL-0160	0.376×	19 μm	APS-H	199 mm	$6,849.00quote	View
LS-TCL-0161		17 μm			$7,009.00quote	View
LS-TCL-0162	0.306×	17 μm	APS-H	256 mm	$7,009.00quote	View
LS-TCL-0163	0.233×	22 μm	APS-H	303.9 mm	$7,159.00quote	View
LS-TCL-0164	0.233×	22 μm	APS-H	303.9 mm	$7,159.00quote	View
LS-TCL-0165	0.196×	26 μm	APS-H	358.5 mm	$7,609.00quote	View
LS-TCL-0166	0.196×	26 μm	APS-H	358.5 mm	$7,609.00quote	View
LS-TCL-0167		35 μm			$11,489.00quote	View
LS-TCL-0168	0.144×	35 μm	APS-H	475.9 mm	$11,489.00quote	View
LS-TCL-0169	0.115×	44 μm	APS-H	542.8 mm	$16,669.00quote	View
LS-TCL-0170	0.115×	44 μm	APS-H	542.8 mm	$16,669.00quote	View
LS-TCL-0171	0.1×	51 μm	2.4"	500 mm	$42,869.00quote	View
LS-TCL-0172	0.1×	51 μm	2.4"	500 mm	$42,869.00quote	View
