0.838× telecentric lens, APS-H, F-mount (LS-TCL-0151)

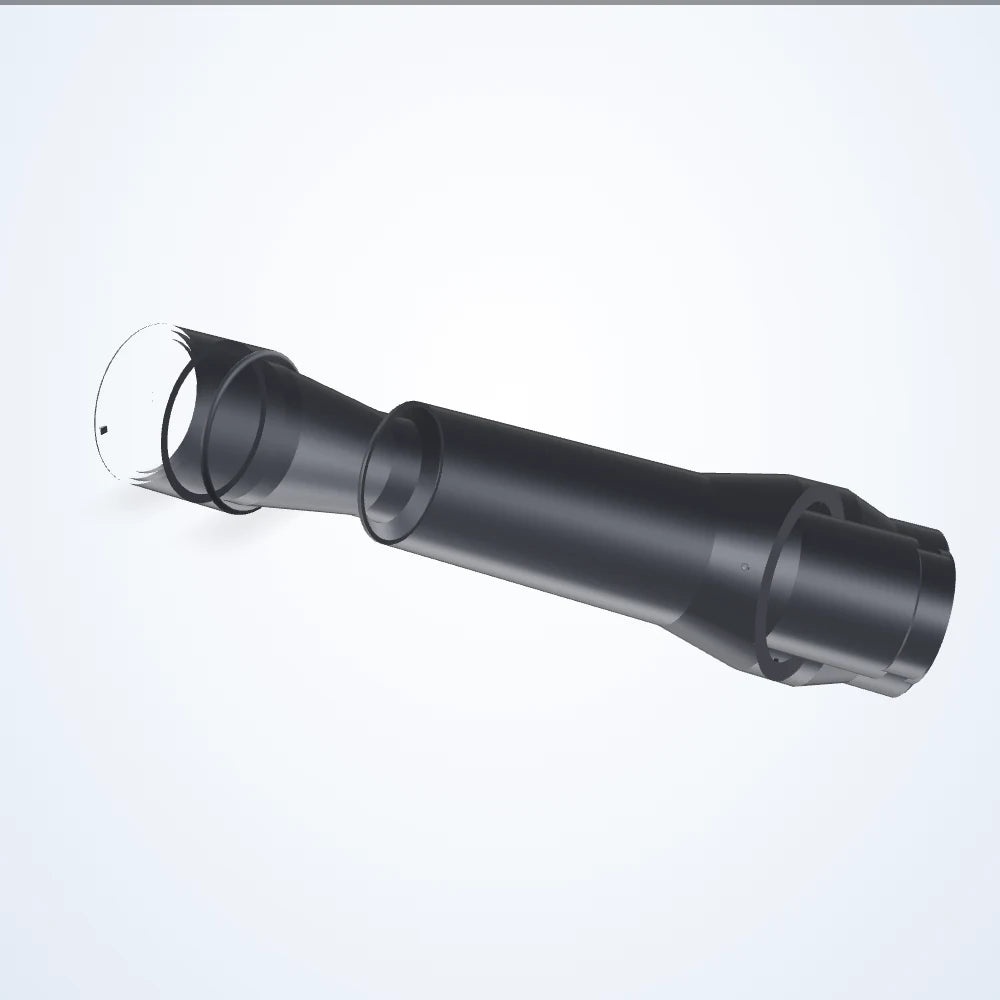

  • 0.838× telecentric lens, APS-H, F-mount (LS-TCL-0151)

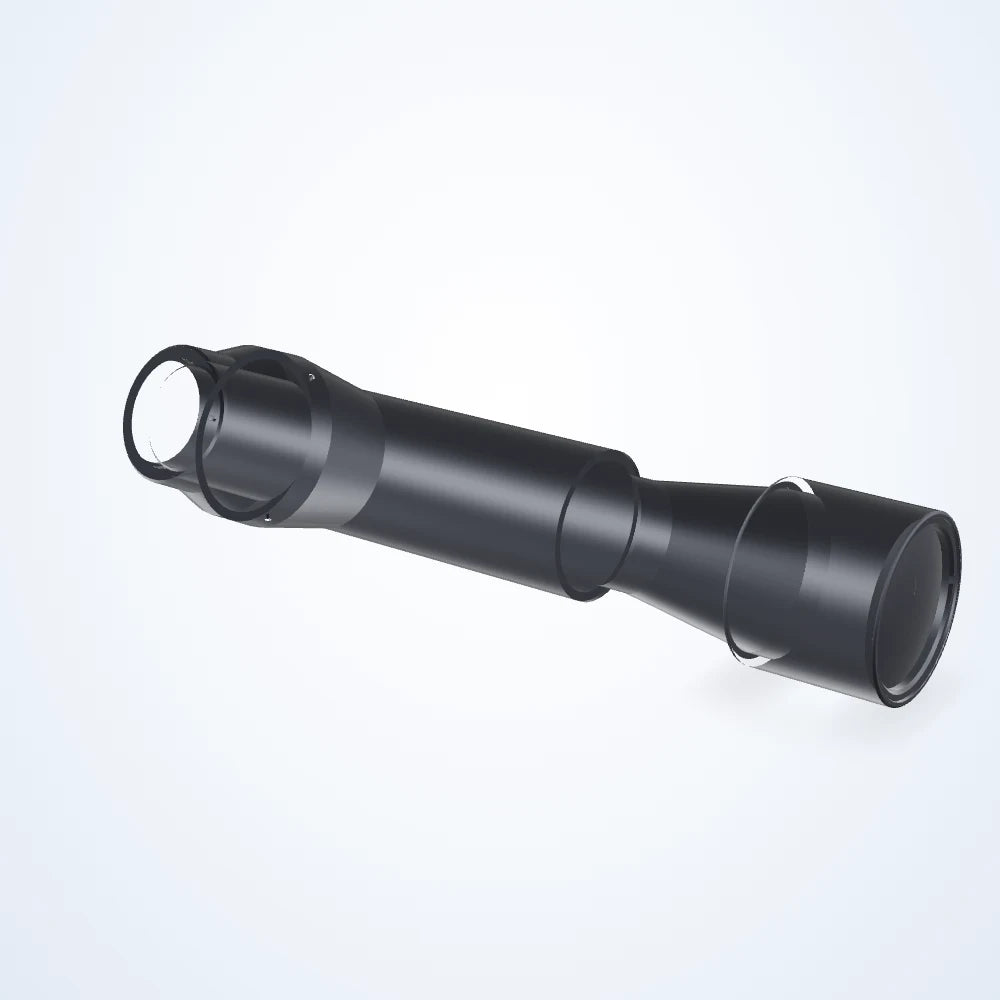

  • 0.838× telecentric lens, APS-H, F-mount (LS-TCL-0151) - view 2

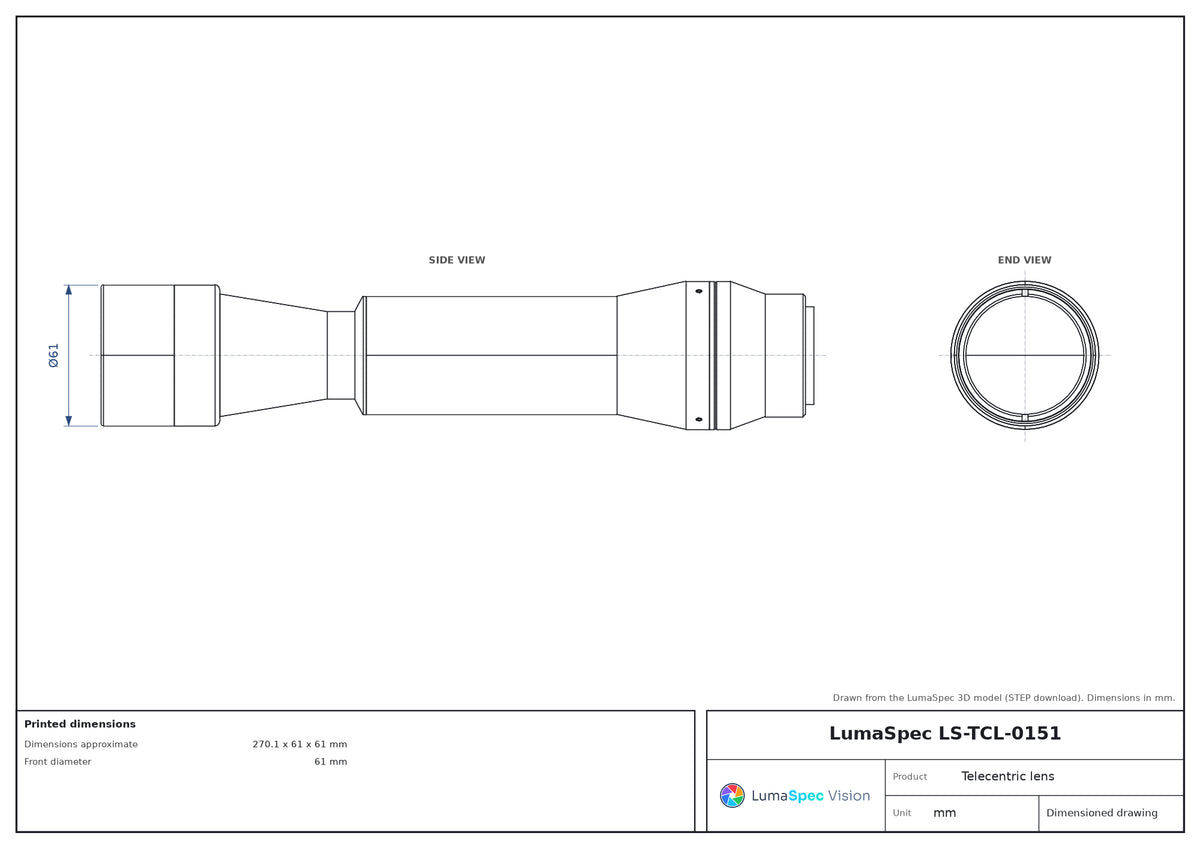

  • LS-TCL-0151 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.838× telecentric lens, APS-H, F-mount (LS-TCL-0151)

Model LS-TCL-0151

  • Magnification0.838×
  • MountF-mount
  • SensorAPS-H
  • Working distance101.9 mm
  • Resolution9 μm
$6,239.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 101.9 mm; depth of field 1.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0151
Aps-c IMX34226.68 x 20.01 mm
Aps-h python 25K27.49 x 27.49 mm
Lens typeTelecentric
Line 4k-7µm34.21 mm
Python 16K22 x 22 mm
Working ƒ/nf/12

Optics

Magnification0.838×
Working distance101.9 mm
Depth of field1.4 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle33.5 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor formatAPS-H
Resolution (pixel size)9 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate270.1 x 61 x 61 mm
Front diameter61 mm
Weight781 Grams
