0.144× telecentric lens, APS-H, F-mount (LS-TCL-0167)

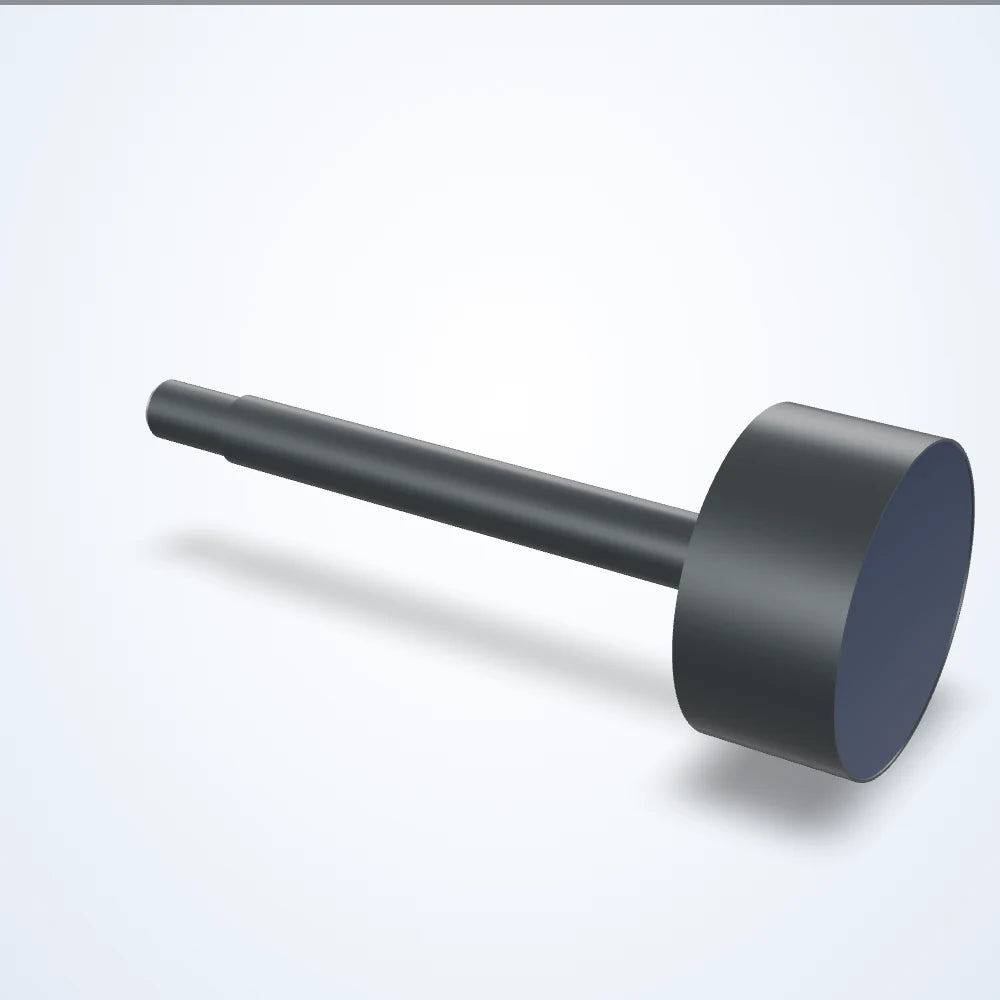

  • 0.144× telecentric lens, APS-H, F-mount (LS-TCL-0167)

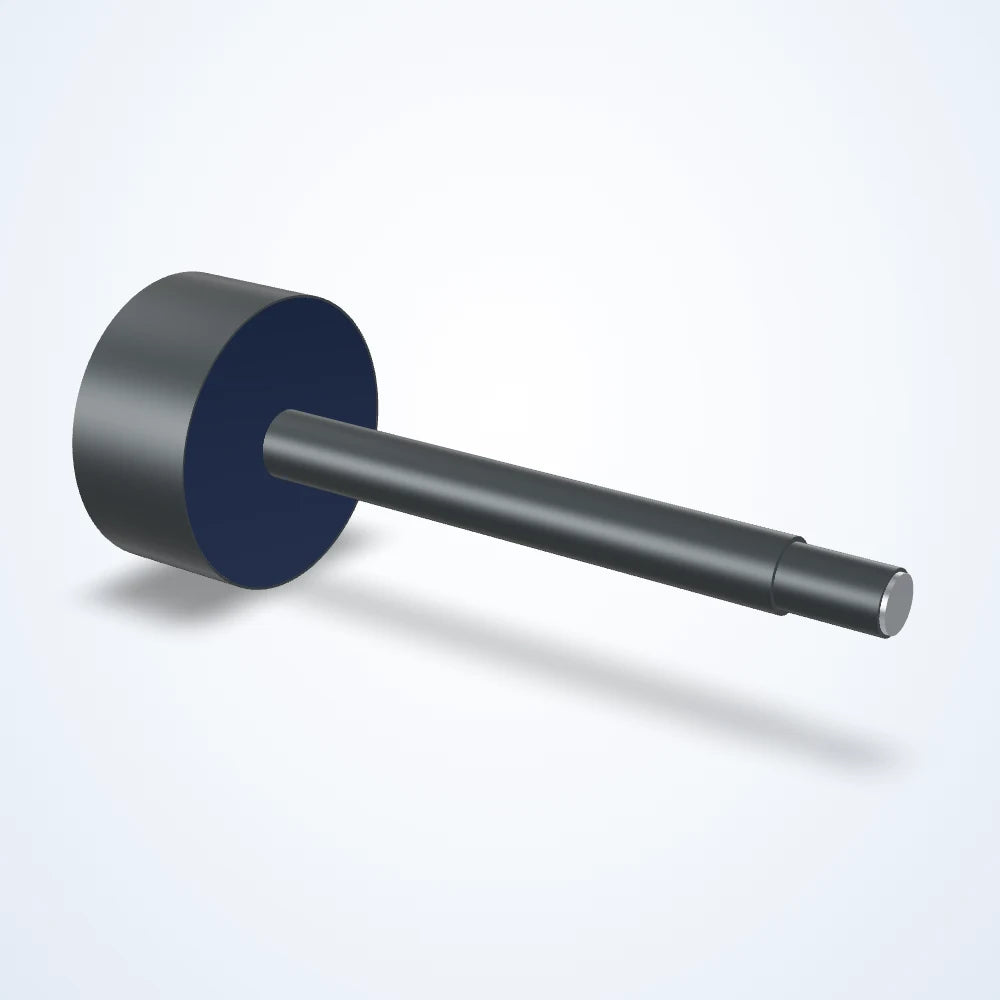

  • 0.144× telecentric lens, APS-H, F-mount (LS-TCL-0167) - view 2

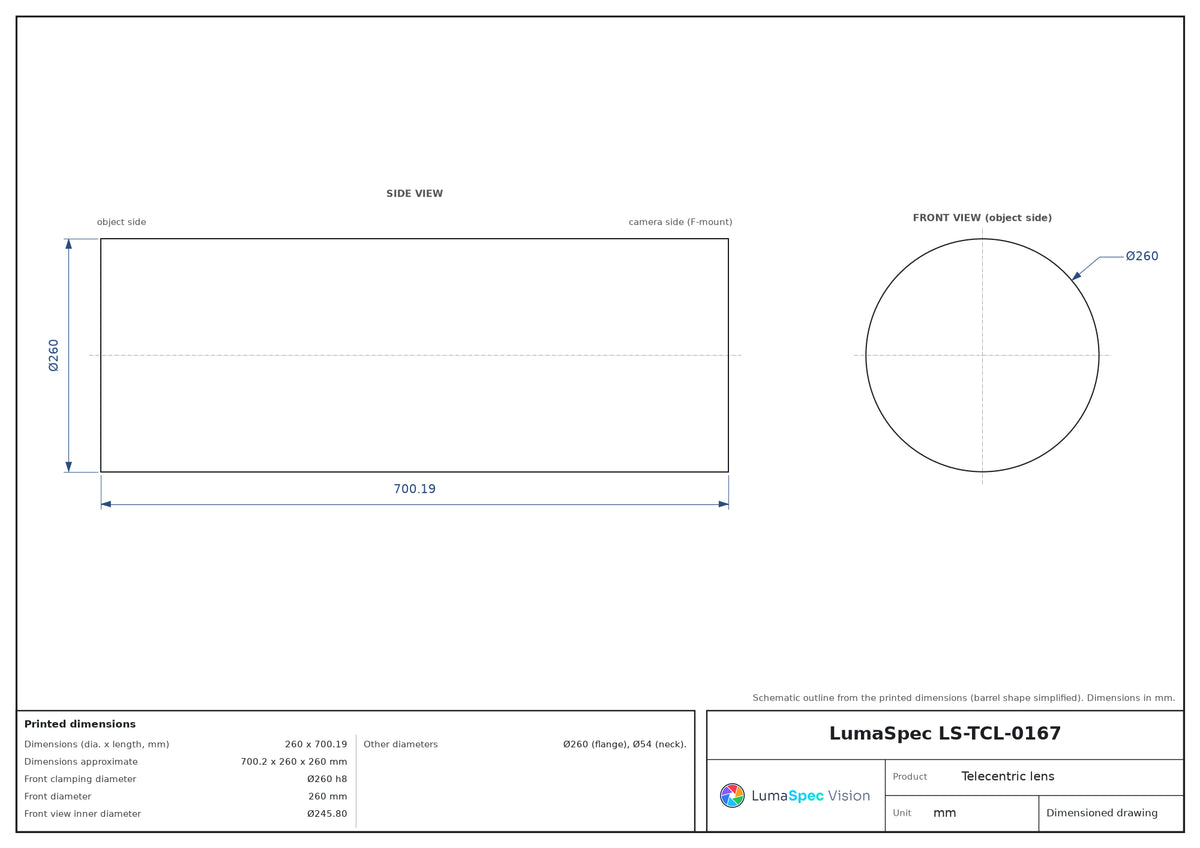

  • LS-TCL-0167 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.144× telecentric lens, APS-H, F-mount (LS-TCL-0167)

Model LS-TCL-0167

  • MountF-mount
  • SensorAPS-H
  • Resolution35 μm
  • Sensor formatAPS-H
$11,489.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0167
Aps-c IMX342155.28 x 116.46 mm
Aps-h python 25K160 x 160 mm
Flange distance46.5 mm (F-mount)
Front flange holesM5 x4 and Ø8 x4 on Ø240 circle
Lens typeTelecentric
Line 4k-7µm199.1 mm
Phase adjustmentyes
Python 16K128 x 128 mm
Working ƒ/nf/8

Optics

Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Image circle33.5 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Resolution (pixel size)35 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions (dia. x length, mm)260 x 700.19
Dimensions approximate700.2 x 260 x 260 mm
Front clamping diameterØ260 h8
Front diameter260 mm
Front view inner diameterØ245.80
Other diametersØ260 (flange), Ø54 (neck), Ø61 h8 (rear clamping), Ø64 (mount ring)
Rear protrusion behind mount4.3 mm
Weight (g)10330
