0.531× telecentric lens, APS-H, F-mount (LS-TCL-0155)

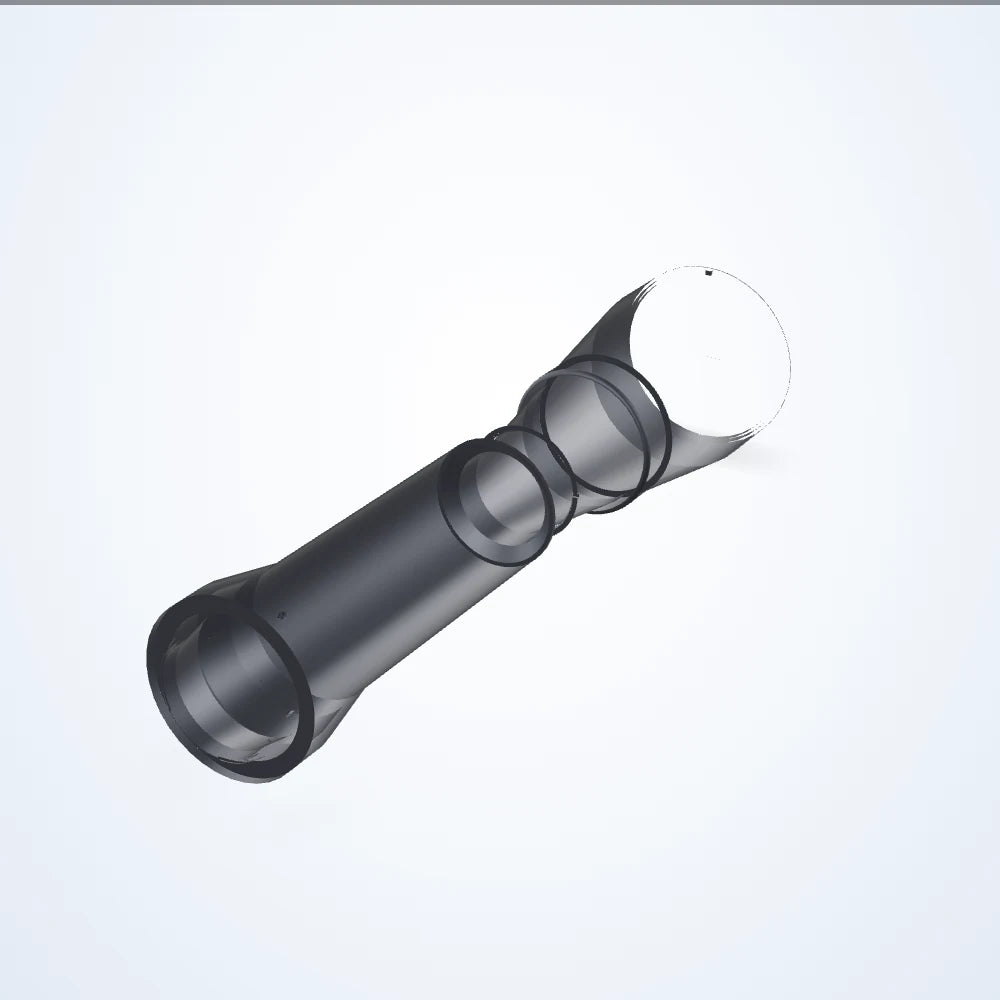

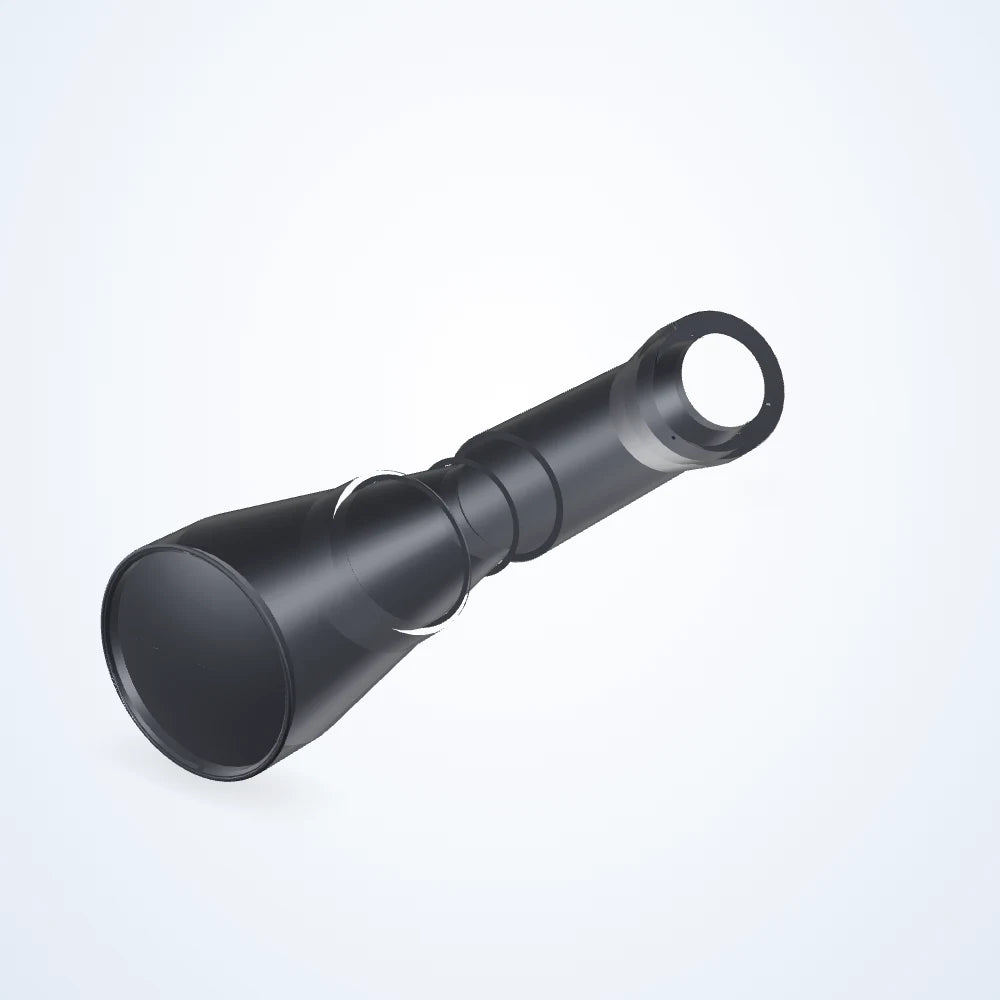

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.531× telecentric lens, APS-H, F-mount (LS-TCL-0155)

Model LS-TCL-0155

Magnification0.531×
MountF-mount
SensorAPS-H
Working distance136.5 mm
Resolution13 μm

$6,549.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 136.5 mm; depth of field 3.2 mm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0155
Aps-c IMX342	42.11 x 31.58 mm
Aps-h python 25K	43.39 x 43.39 mm
Lens type	Telecentric
Line 4k-7µm	53.99 mm
Python 16K	34.71 x 34.71 mm
Working ƒ/n	f/11

Optics

Magnification	0.531×
Working distance	136.5 mm
Depth of field	3.2 mm
Distortion maximum (%)	< 0.1
Distortion typical (%)	< 0.08
Filter thread	No Filter Threads
Image circle	33.5 mm
Telecentricity maximum	0.10°
Telecentricity typical	< 0.08°

Sensor and imaging

Sensor format	APS-H
Resolution (pixel size)	13 μm

Environment and compliance

Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Mechanical

Mount	F-mount

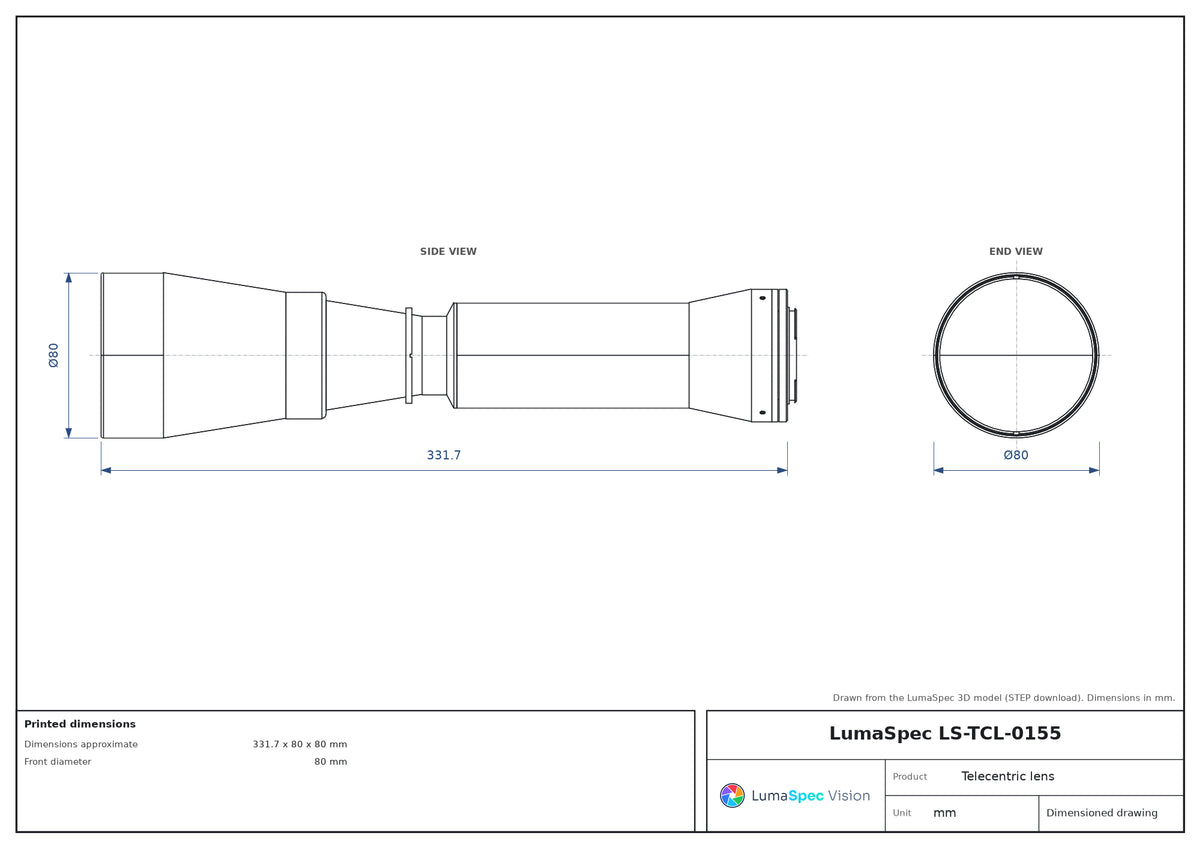

Dimensions approximate	331.7 x 80 x 80 mm
Front diameter	80 mm
Weight	1167 Grams
