0.376× telecentric lens, APS-H, F-mount (LS-TCL-0159)

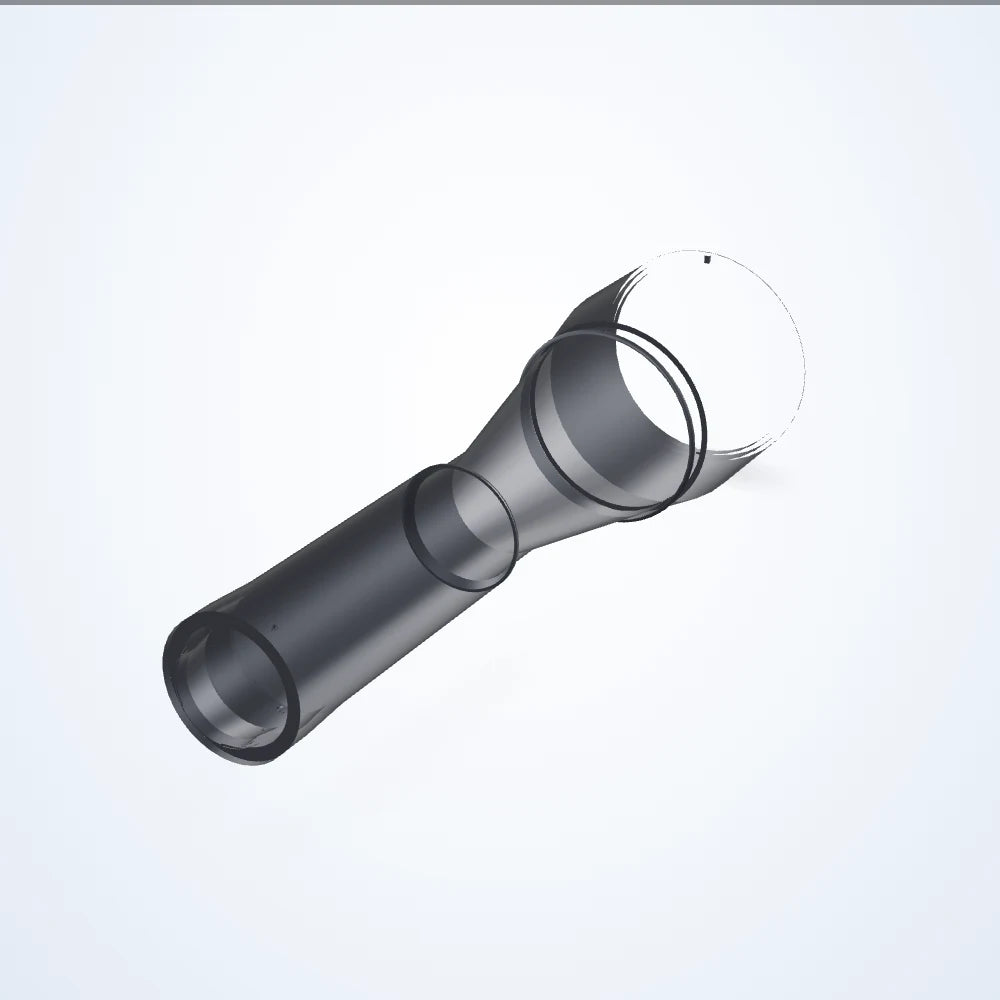

  • 0.376× telecentric lens, APS-H, F-mount (LS-TCL-0159)

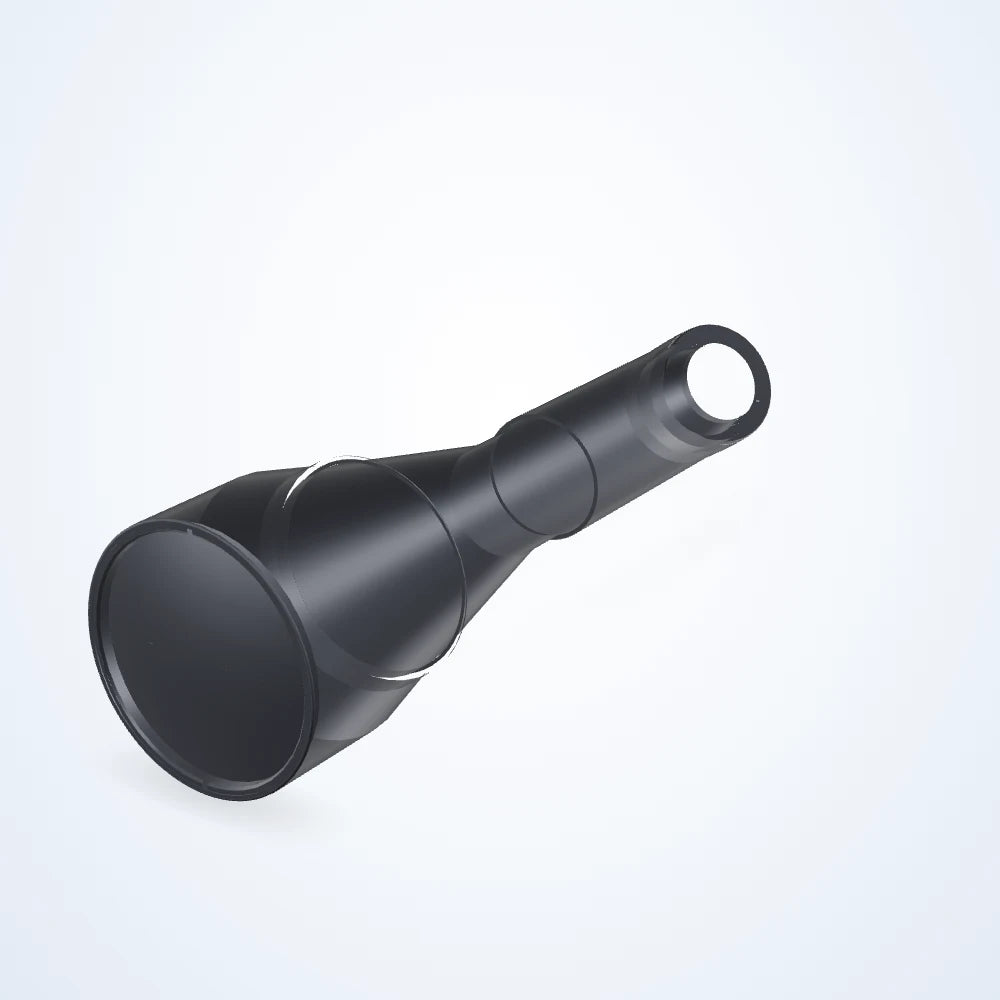

  • 0.376× telecentric lens, APS-H, F-mount (LS-TCL-0159) - view 2

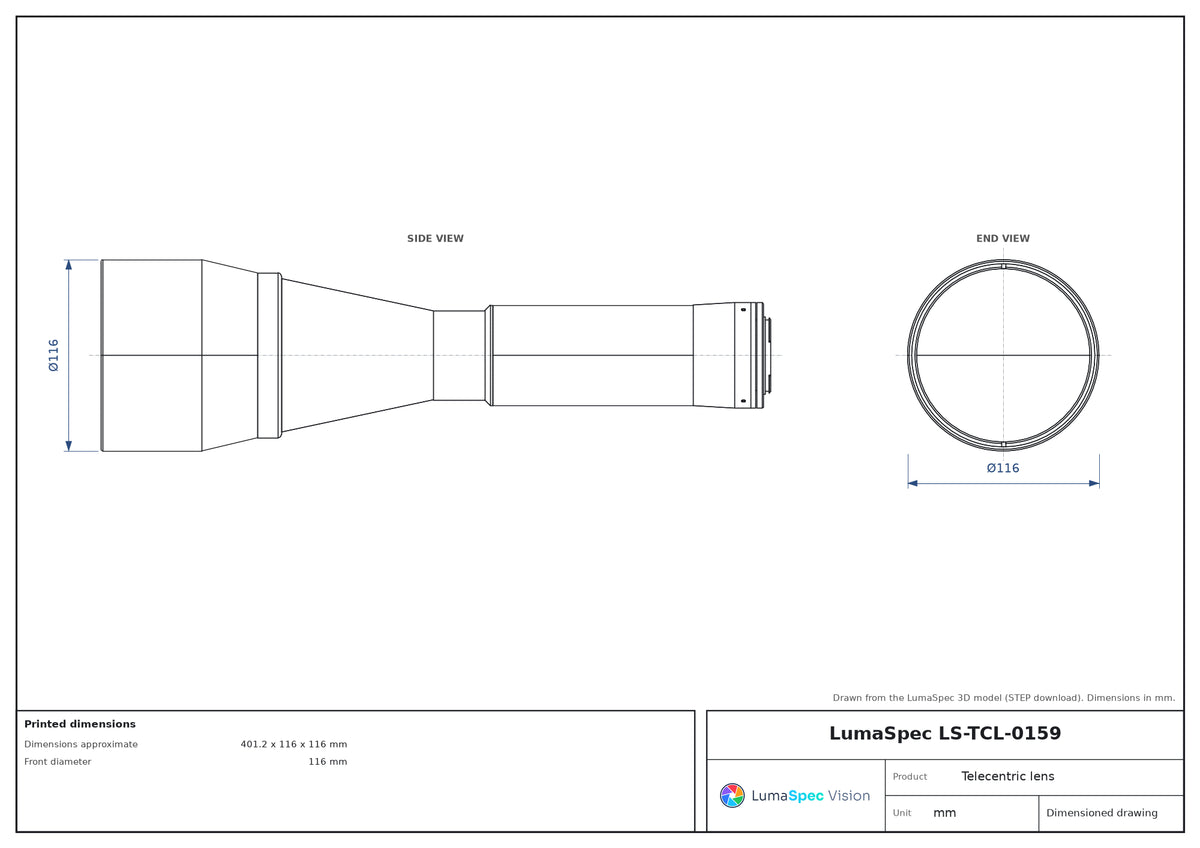

  • LS-TCL-0159 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.376× telecentric lens, APS-H, F-mount (LS-TCL-0159)

Model LS-TCL-0159

  • Magnification0.376×
  • MountF-mount
  • SensorAPS-H
  • Working distance199 mm
  • Resolution19 μm
$6,849.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 199 mm; depth of field 6.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0159
Aps-c IMX34259.47 x 44.6 mm
Aps-h python 25K61.28 x 61.28 mm
Lens typeTelecentric
Line 4k-7µm76.25 mm
Python 16K49.02 x 49.02 mm
Working ƒ/nf/8

Optics

Magnification0.376×
Working distance199 mm
Depth of field6.4 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle33.5 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor formatAPS-H
Resolution (pixel size)19 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate401.2 x 116 x 116 mm
Front diameter116 mm
Weight1807 Grams
