1.208× telecentric lens, APS-H, F-mount (LS-TCL-0149)

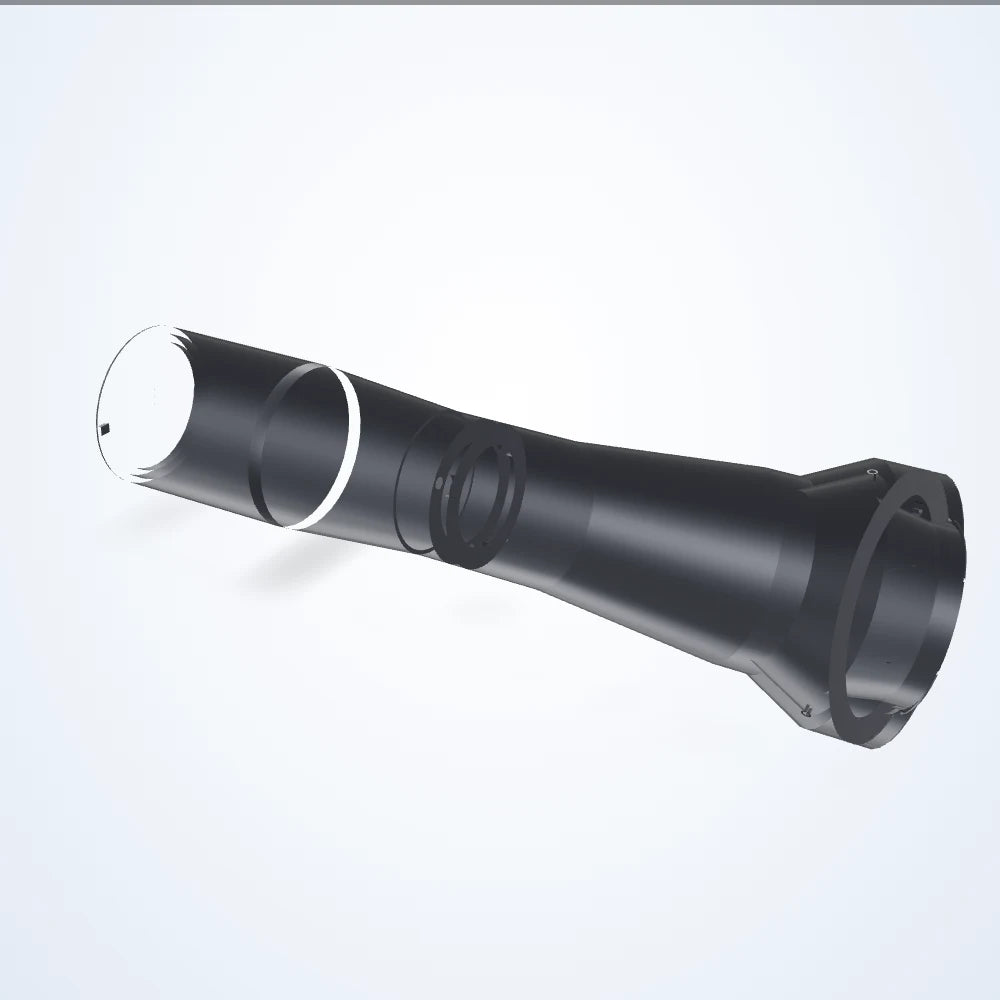

  • 1.208× telecentric lens, APS-H, F-mount (LS-TCL-0149)

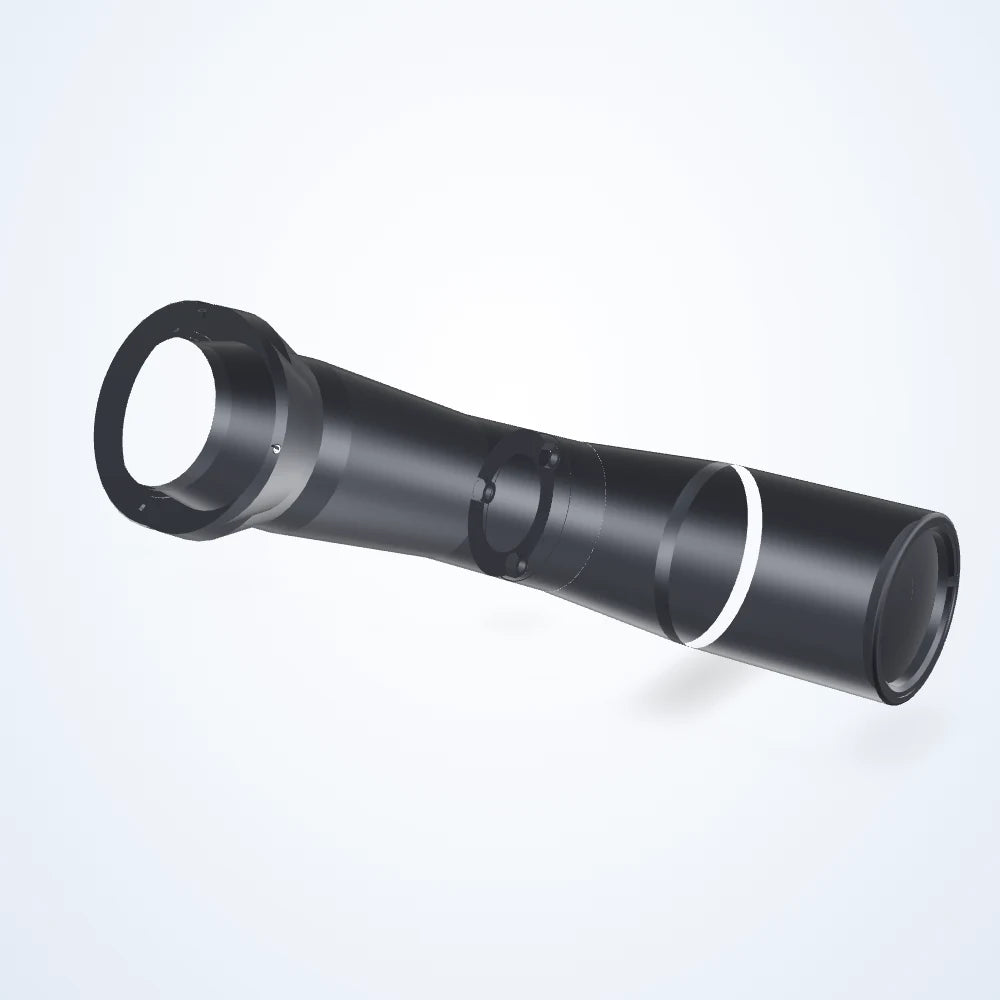

  • 1.208× telecentric lens, APS-H, F-mount (LS-TCL-0149) - view 2

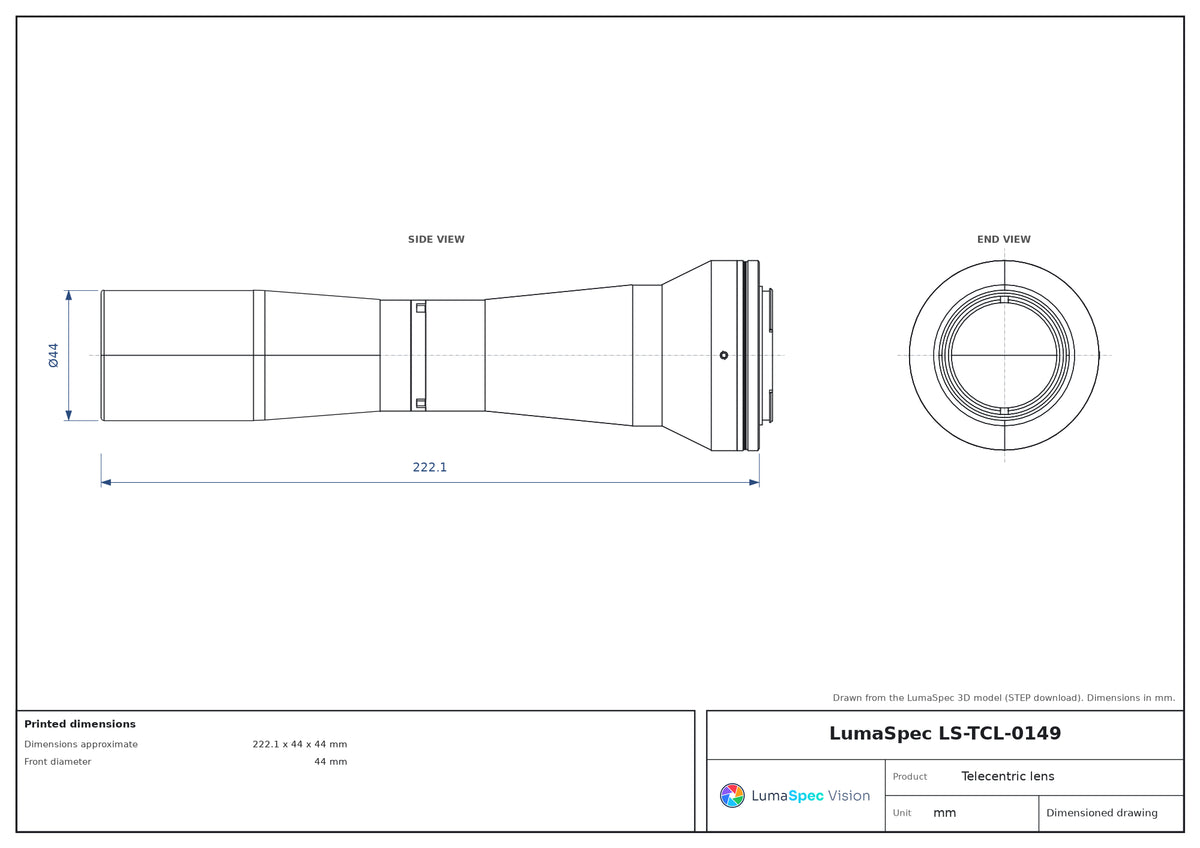

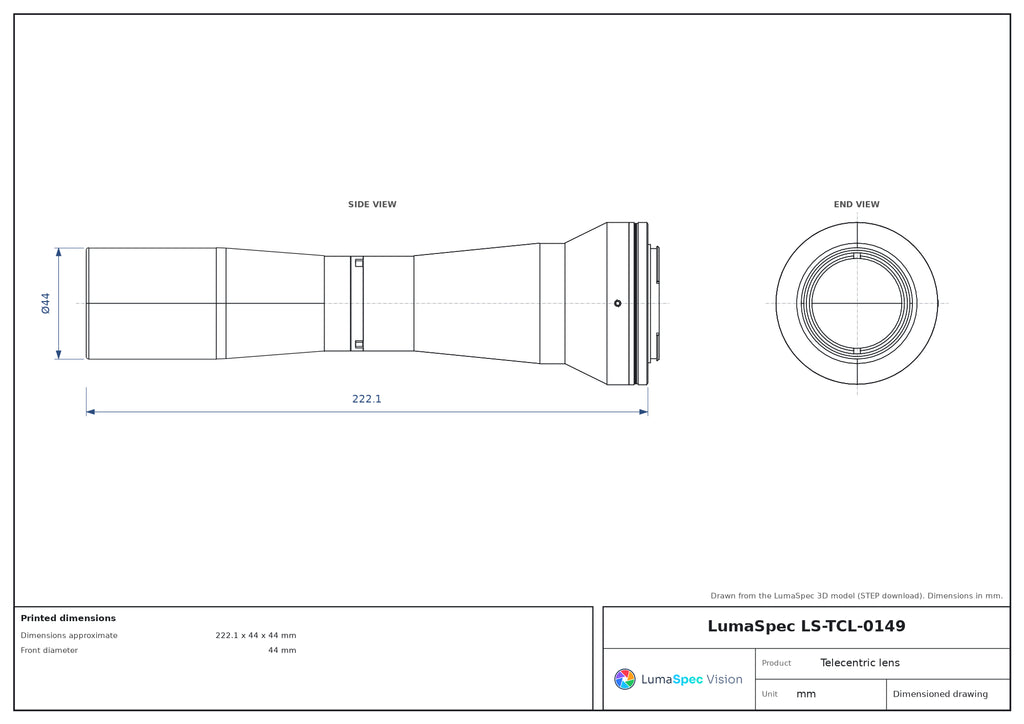

  • LS-TCL-0149 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

1.208× telecentric lens, APS-H, F-mount (LS-TCL-0149)

Model LS-TCL-0149

  • Magnification1.208×
  • MountF-mount
  • SensorAPS-H
  • Working distance66.7 mm
  • Resolution8 μm
$5,639.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 66.7 mm; depth of field 0.9 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0149
Aps-c IMX34218.51 x 13.88 mm
Aps-h python 25K19.07 x 19.07 mm
Lens typeTelecentric
Line 4k-7µm23.73 mm
Python 16K15.26 x 15.26 mm
Working ƒ/nf/16

Optics

Magnification1.208×
Working distance66.7 mm
Depth of field0.9 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle33.5 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor formatAPS-H
Resolution (pixel size)8 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate222.1 x 44 x 44 mm
Front diameter44 mm
Weight626 Grams
