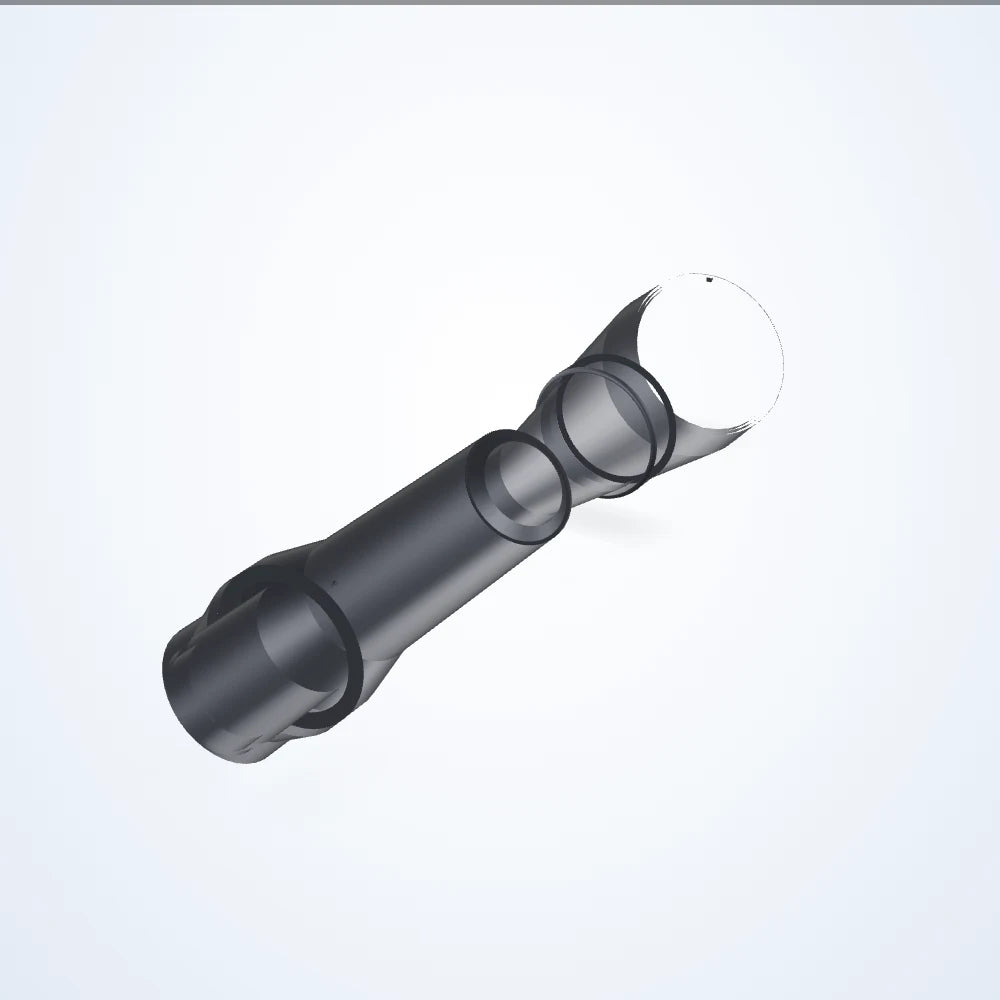

  • 0.531× telecentric lens, APS-H, M42-mount (LS-TCL-0156)

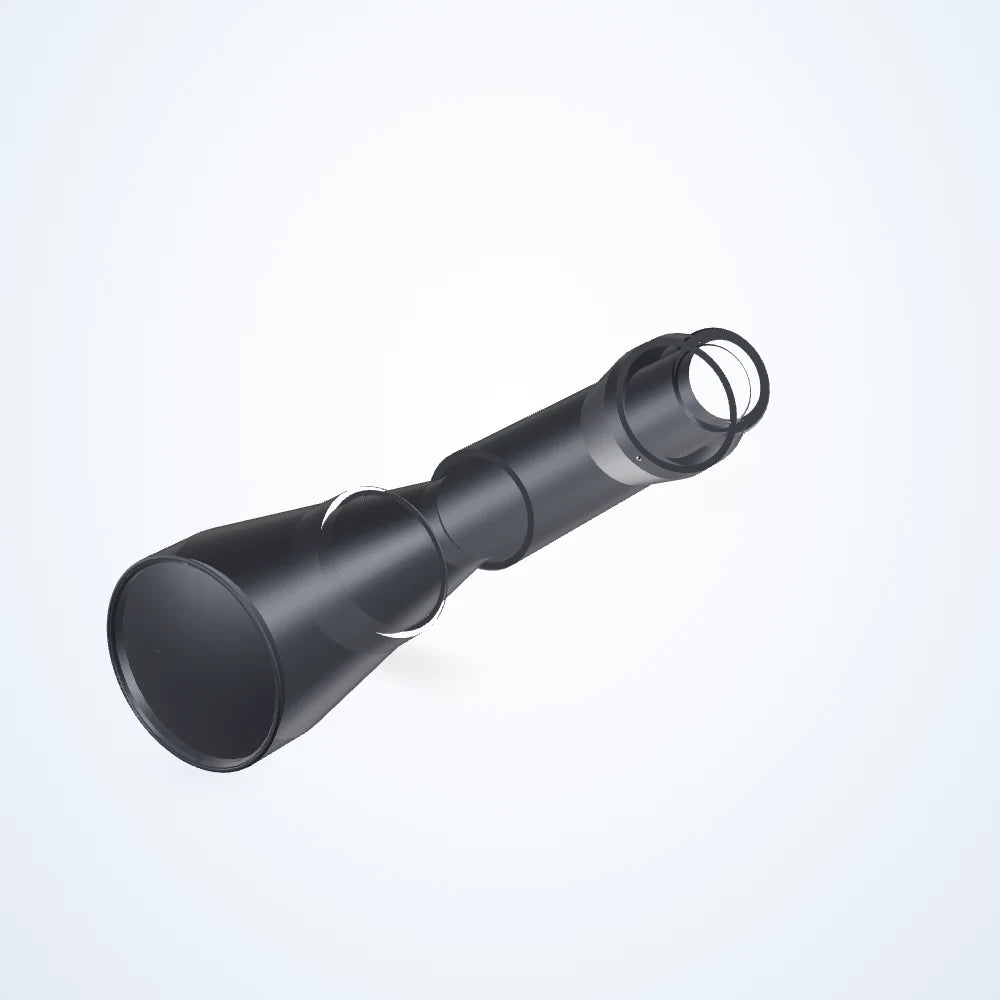

  • 0.531× telecentric lens, APS-H, M42-mount (LS-TCL-0156) - view 2

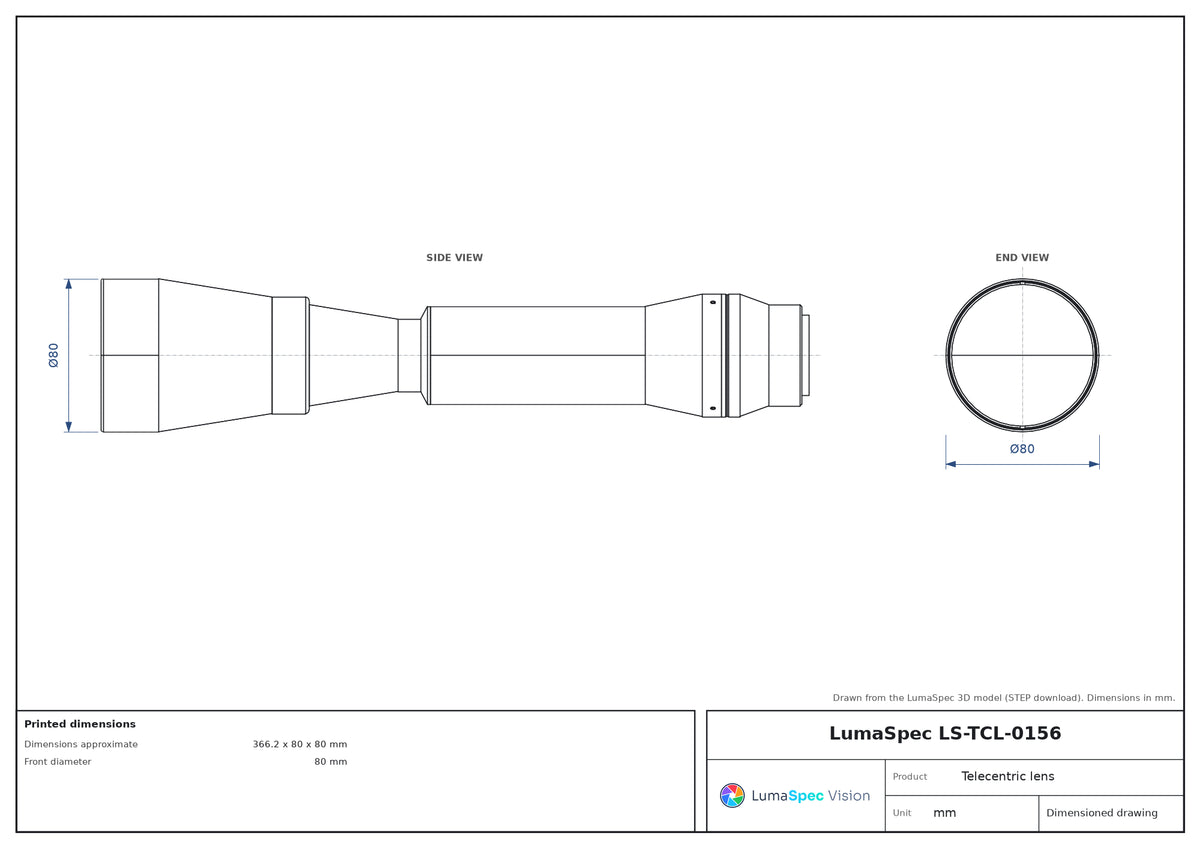

  • LS-TCL-0156 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.531× telecentric lens, APS-H, M42-mount (LS-TCL-0156)

Model LS-TCL-0156

  • Magnification0.531×
  • MountM42
  • SensorAPS-H
  • Working distance136.5 mm
  • Resolution13 μm
$6,549.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 136.5 mm; depth of field 3.2 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0156
Aps-c IMX34242.11 x 31.58 mm
Aps-h python 25K43.39 x 43.39 mm
Lens typeTelecentric
Line 4k-7µm53.99 mm
Python 16K34.71 x 34.71 mm
Working ƒ/nf/11

Optics

Magnification0.531×
Working distance136.5 mm
Depth of field3.2 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle33.5 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor formatAPS-H
Resolution (pixel size)13 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate366.2 x 80 x 80 mm
Front diameter80 mm
Weight1420 Grams
