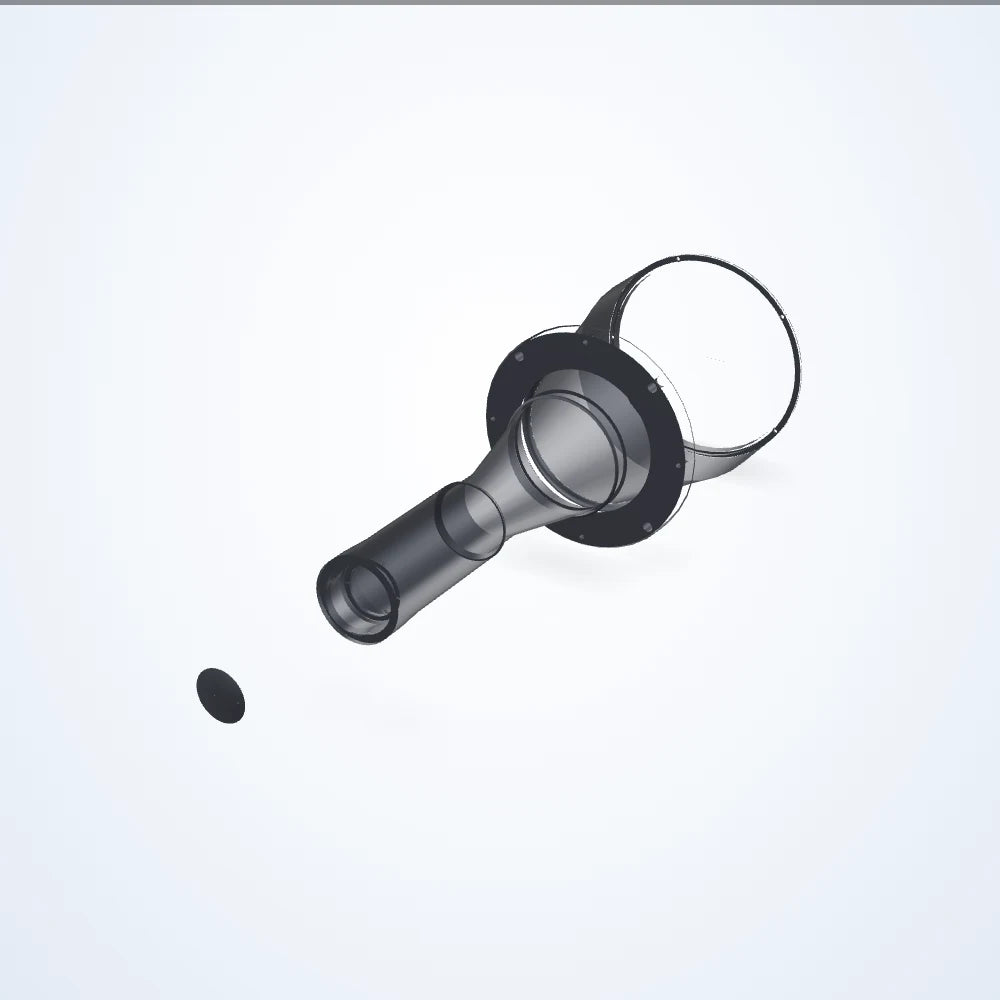

  • 0.233× telecentric lens, APS-H, F-mount (LS-TCL-0163)

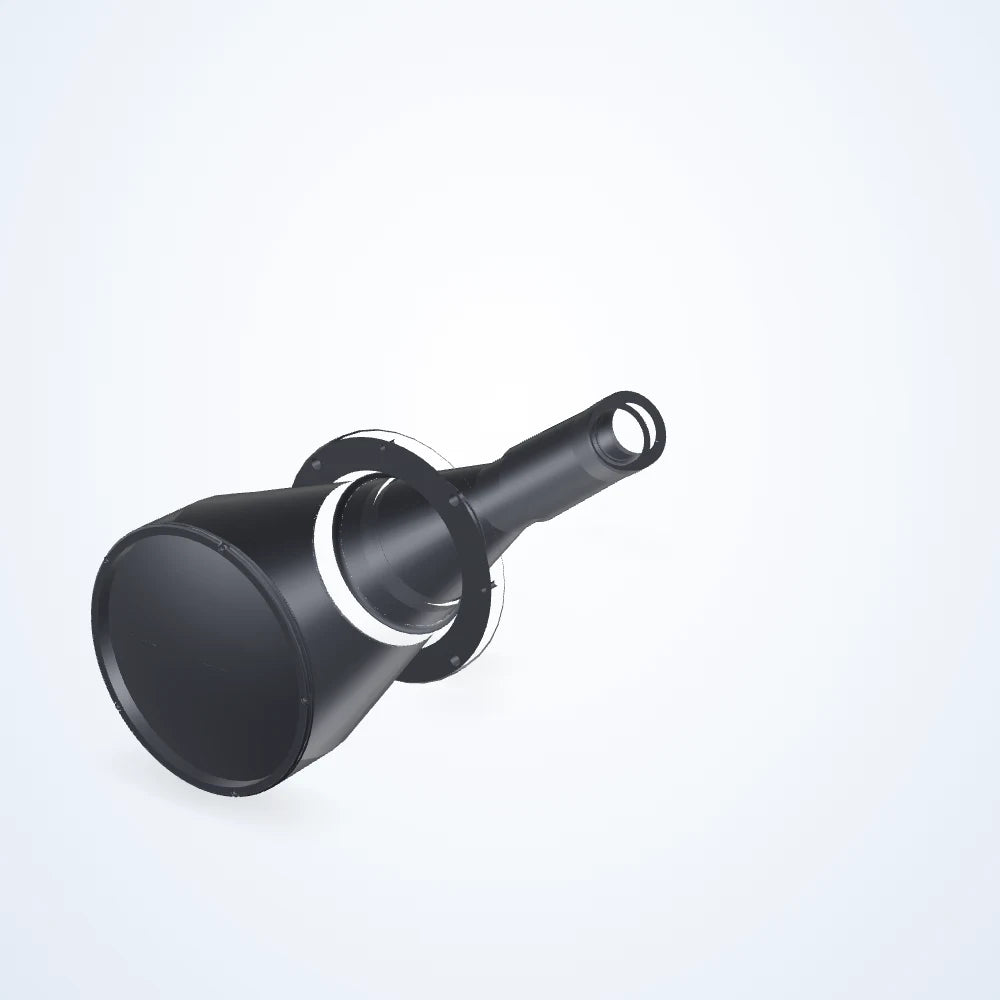

  • 0.233× telecentric lens, APS-H, F-mount (LS-TCL-0163) - view 2

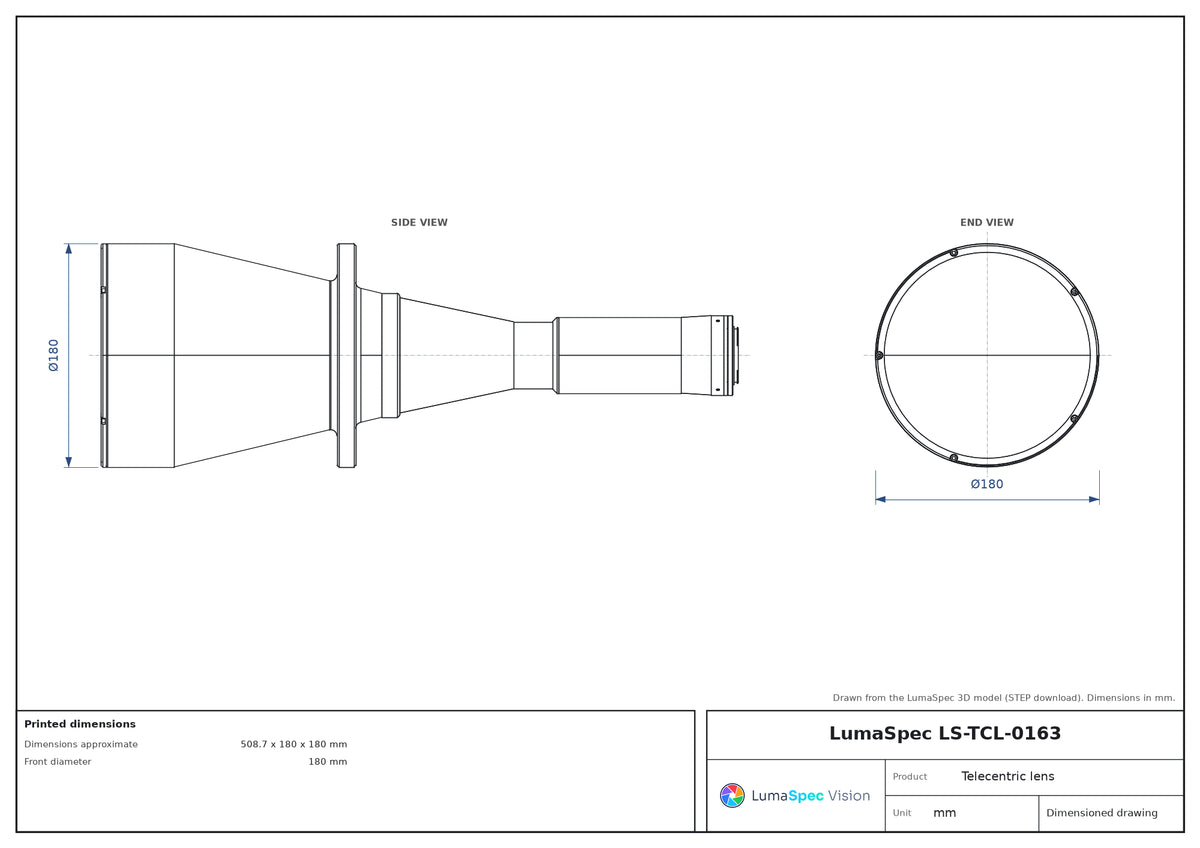

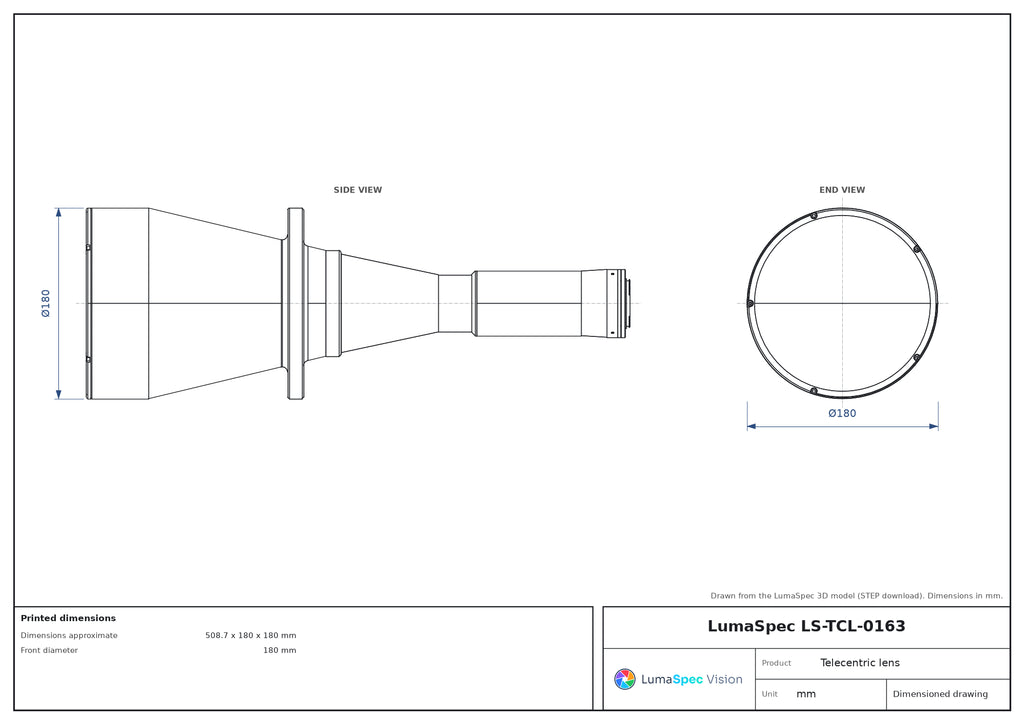

  • LS-TCL-0163 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.233× telecentric lens, APS-H, F-mount (LS-TCL-0163)

Model LS-TCL-0163

  • Magnification0.233×
  • MountF-mount
  • SensorAPS-H
  • Working distance303.9 mm
  • Resolution22 μm
$7,159.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.233× telecentric lens, APS-H, F-mount (LS-TCL-0163)LS-TCL-0163

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 303.9 mm; depth of field 12.2 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0163
Aps-c IMX34295.97 x 71.97 mm
Aps-h python 25K98.88 x 98.88 mm
Lens typeTelecentric
Line 4k-7µm123.05 mm
Python 16K79.11 x 79.11 mm
Working ƒ/nf/8

Optics

Magnification0.233×
Working distance303.9 mm
Depth of field12.2 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle33.5 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor formatAPS-H
Resolution (pixel size)22 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate508.7 x 180 x 180 mm
Front diameter180 mm
Weight5152 Grams

Other models in the Telecentric lens series (S12) series

See all 27 models
