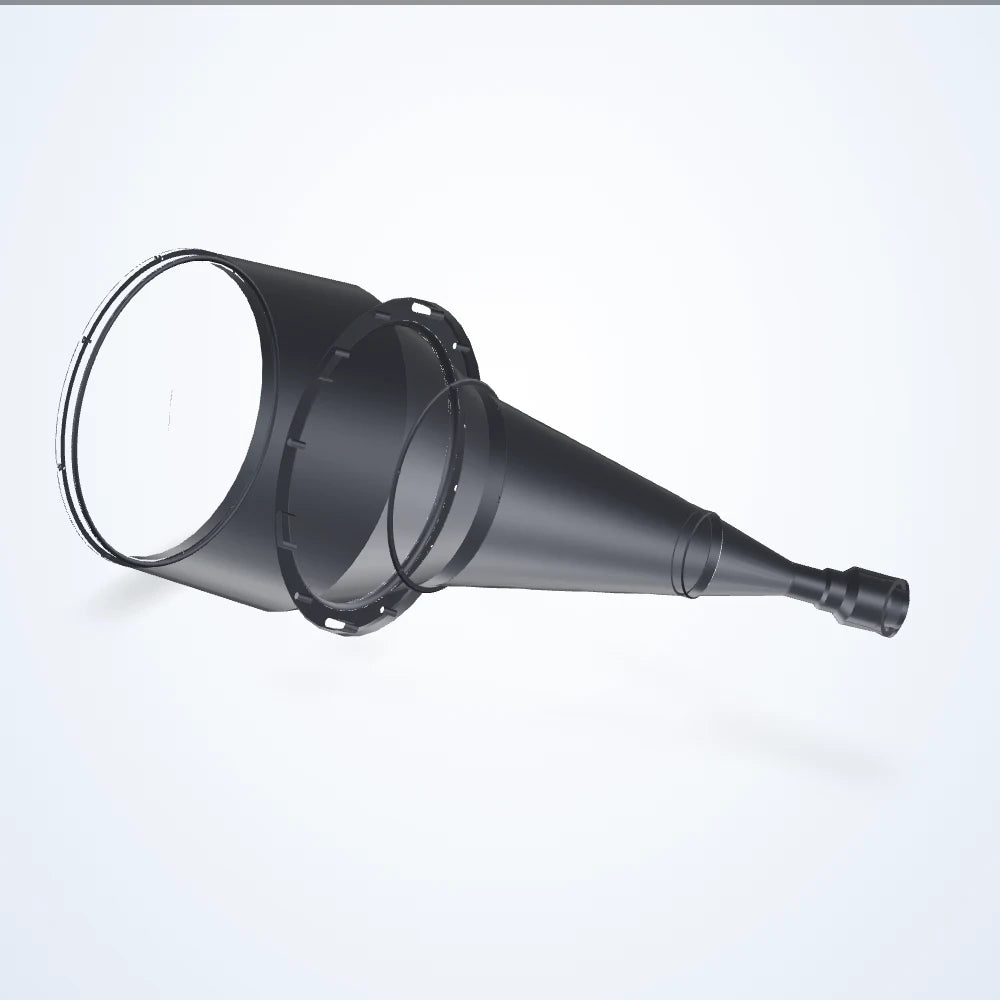

  • 0.1× telecentric lens, 2.4", F-mount (LS-TCL-0171)

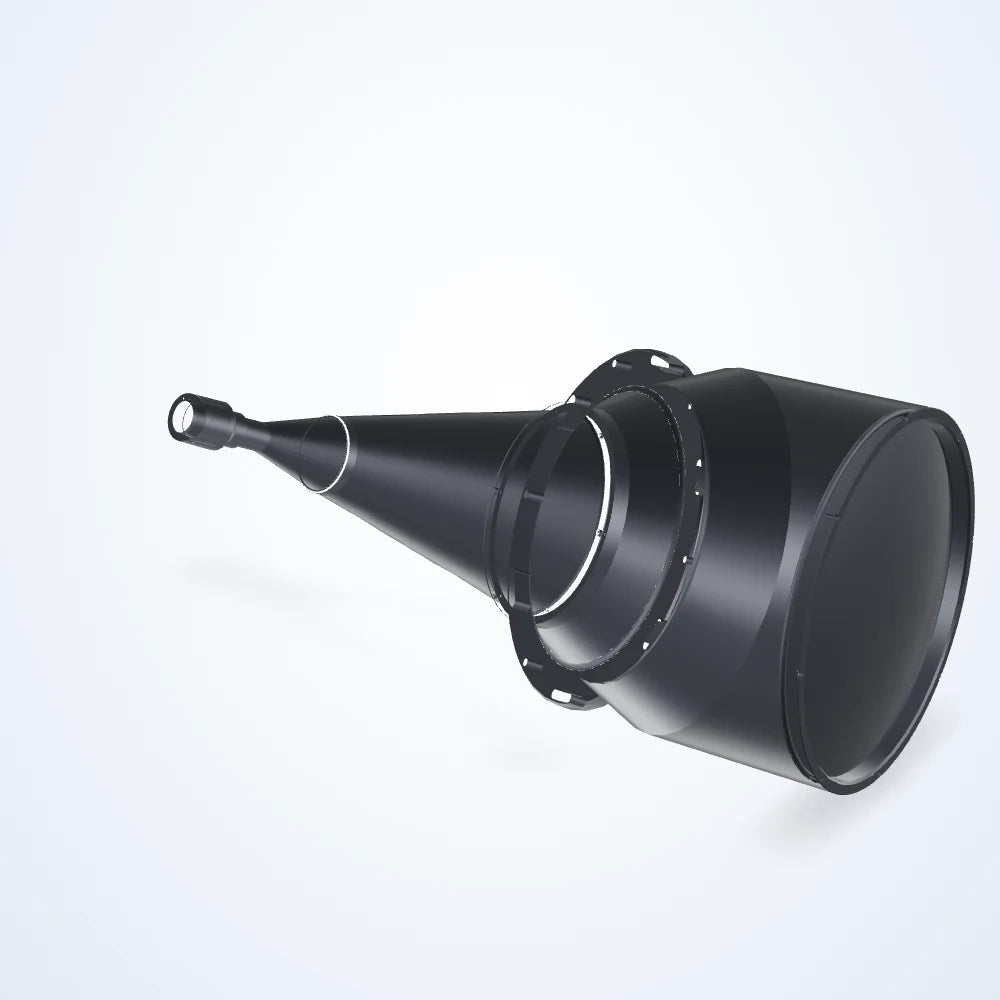

  • 0.1× telecentric lens, 2.4", F-mount (LS-TCL-0171) - view 2

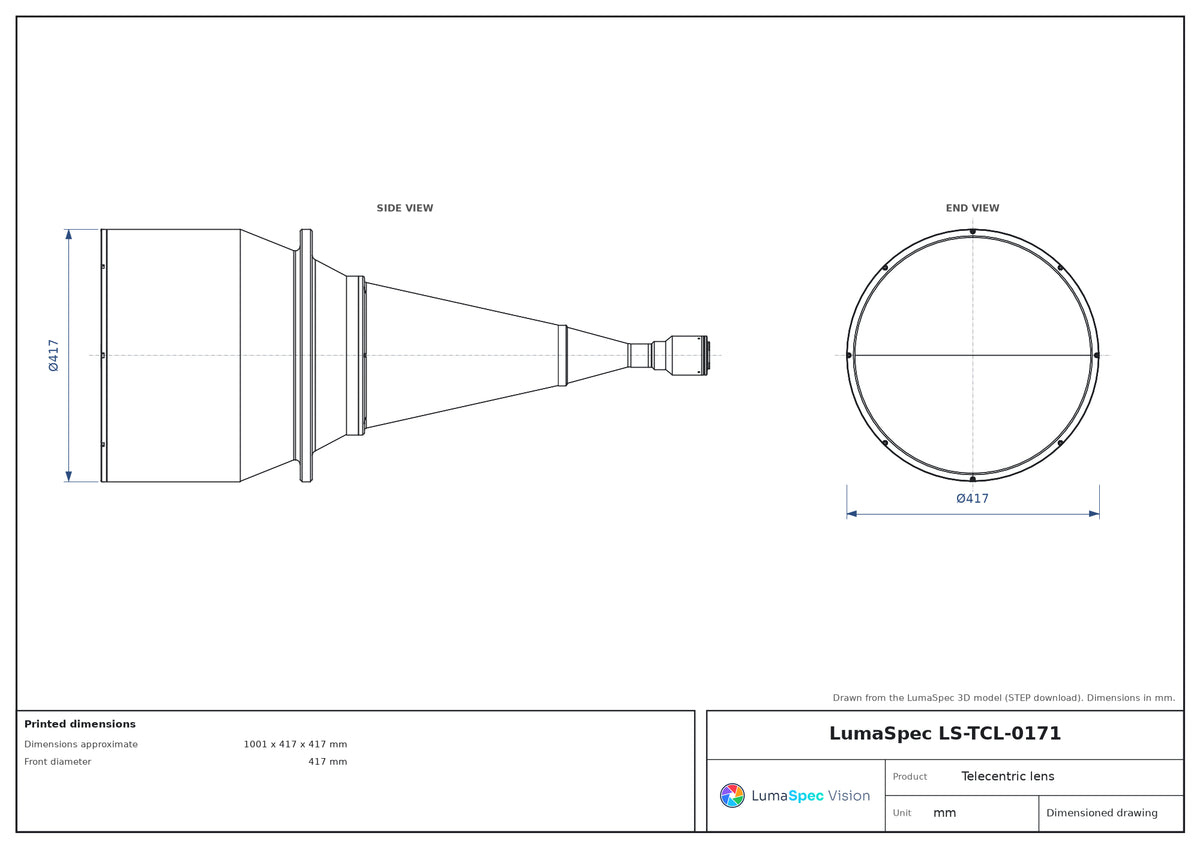

  • LS-TCL-0171 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.1× telecentric lens, 2.4", F-mount (LS-TCL-0171)

Model LS-TCL-0171

  • Magnification0.1×
  • MountF-mount
  • SensorAPS-H
  • Working distance500 mm
  • Resolution51 μm
$42,869.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 500 mm; depth of field 66 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0171
Aps-c IMX342223.60 x 167.7 mm
Aps-h python 25K230.4 x 230.4 mm
Lens typeTelecentric
Line 4k-7µm286.7 mm
Python 16K184.32 x 184.32 mm
Working ƒ/nf/8

Optics

Magnification0.1×
Working distance500 mm
Depth of field66 mm
Distortion maximum (%)< 0.15
Distortion typical (%)< 0.1
Filter threadNo Filter Threads
Image circle37.2 mm
Telecentricity maximum0.15°
Telecentricity typical< 0.1°

Sensor and imaging

Sensor format2.4"
Resolution (pixel size)51 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate1001 x 417 x 417 mm
Front diameter417 mm
Weight38862 Grams

Other models in the Telecentric lens series (S12) series

See all 27 models
