0.196× telecentric lens, APS-H, M42-mount (LS-TCL-0166)

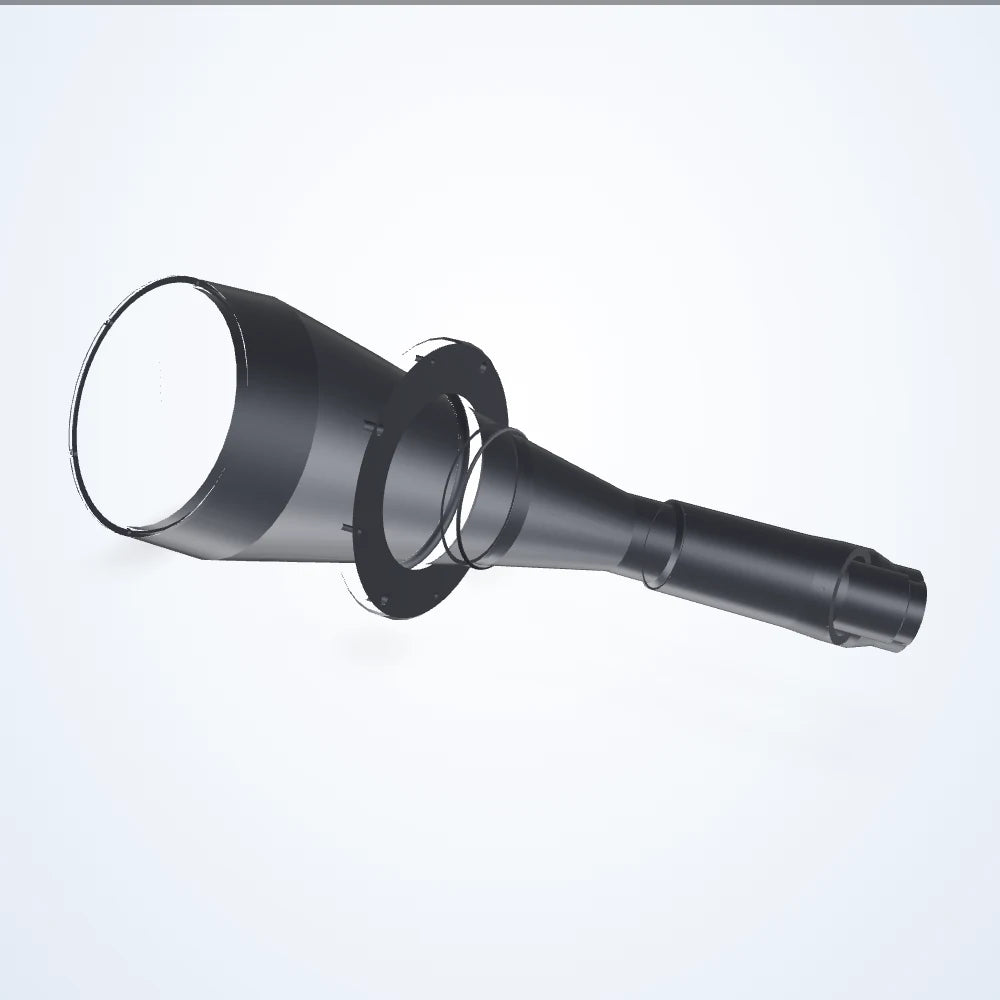

  • 0.196× telecentric lens, APS-H, M42-mount (LS-TCL-0166)

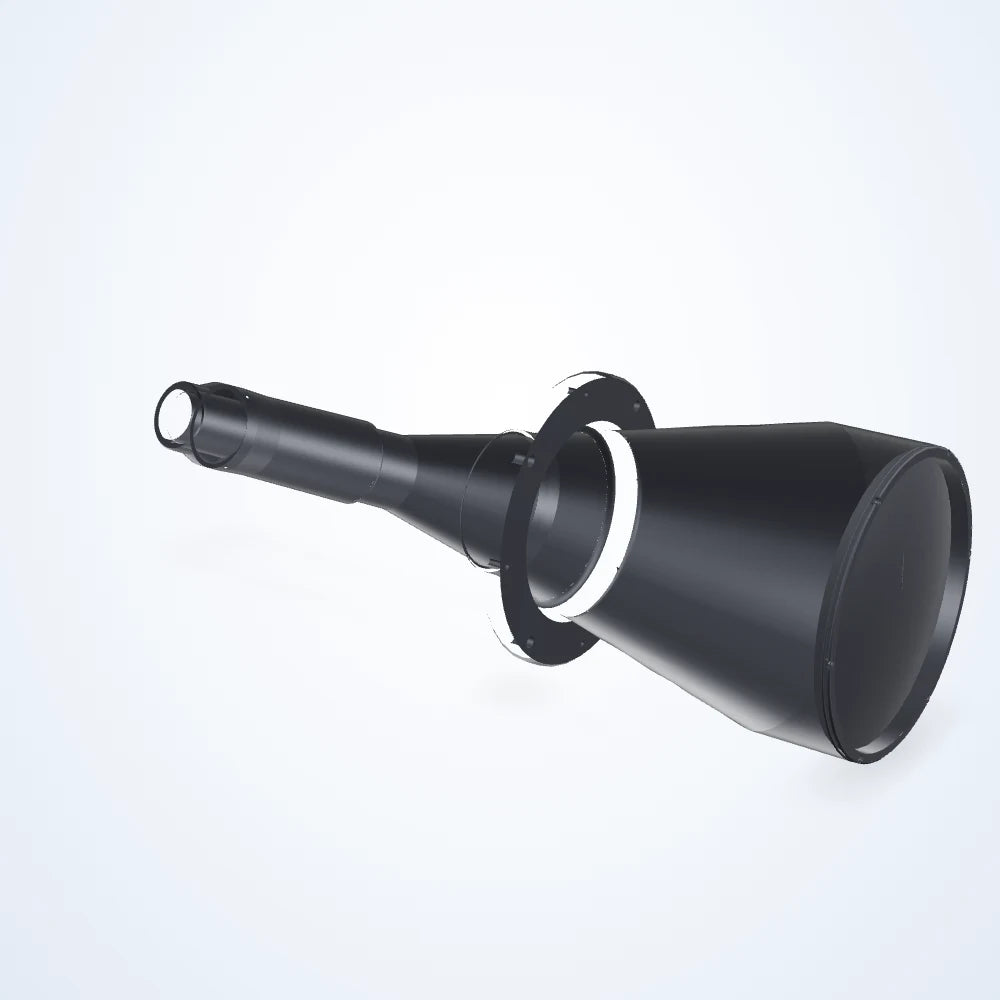

  • 0.196× telecentric lens, APS-H, M42-mount (LS-TCL-0166) - view 2

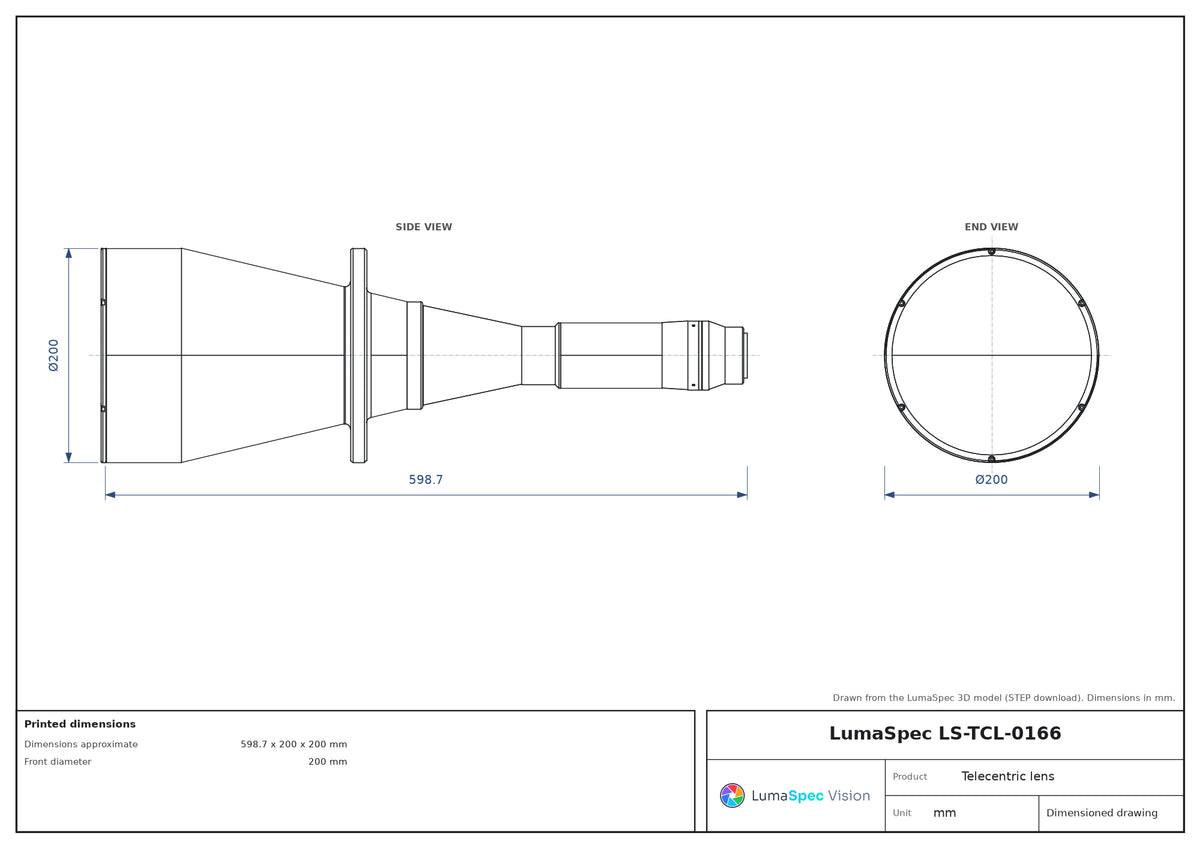

  • LS-TCL-0166 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.196× telecentric lens, APS-H, M42-mount (LS-TCL-0166)

Model LS-TCL-0166

  • Magnification0.196×
  • MountM42
  • SensorAPS-H
  • Working distance358.5 mm
  • Resolution26 μm
$7,609.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 358.5 mm; depth of field 17.2 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0166
Aps-c IMX342114.08 x 85.56 mm
Aps-h python 25K117.55 x 117.55 mm
Lens typeTelecentric
Line 4k-7µm146.28 mm
Python 16K94.04 x 94.04 mm
Working ƒ/nf/8

Optics

Magnification0.196×
Working distance358.5 mm
Depth of field17.2 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle33.5 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor formatAPS-H
Resolution (pixel size)26 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate598.7 x 200 x 200 mm
Front diameter200 mm
Weight6542 Grams

Other models in the Telecentric lens series (S12) series

See all 27 models
