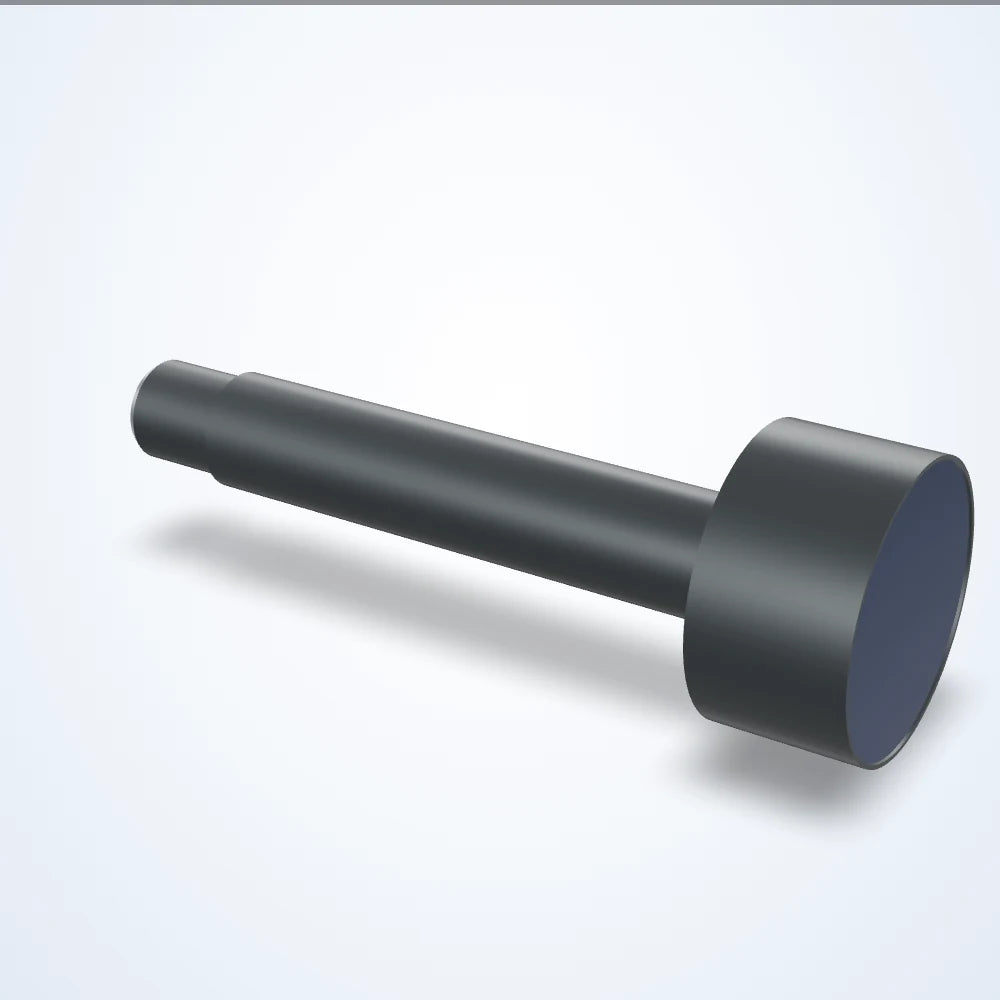

  • 0.306× telecentric lens, APS-H, F-mount (LS-TCL-0161)

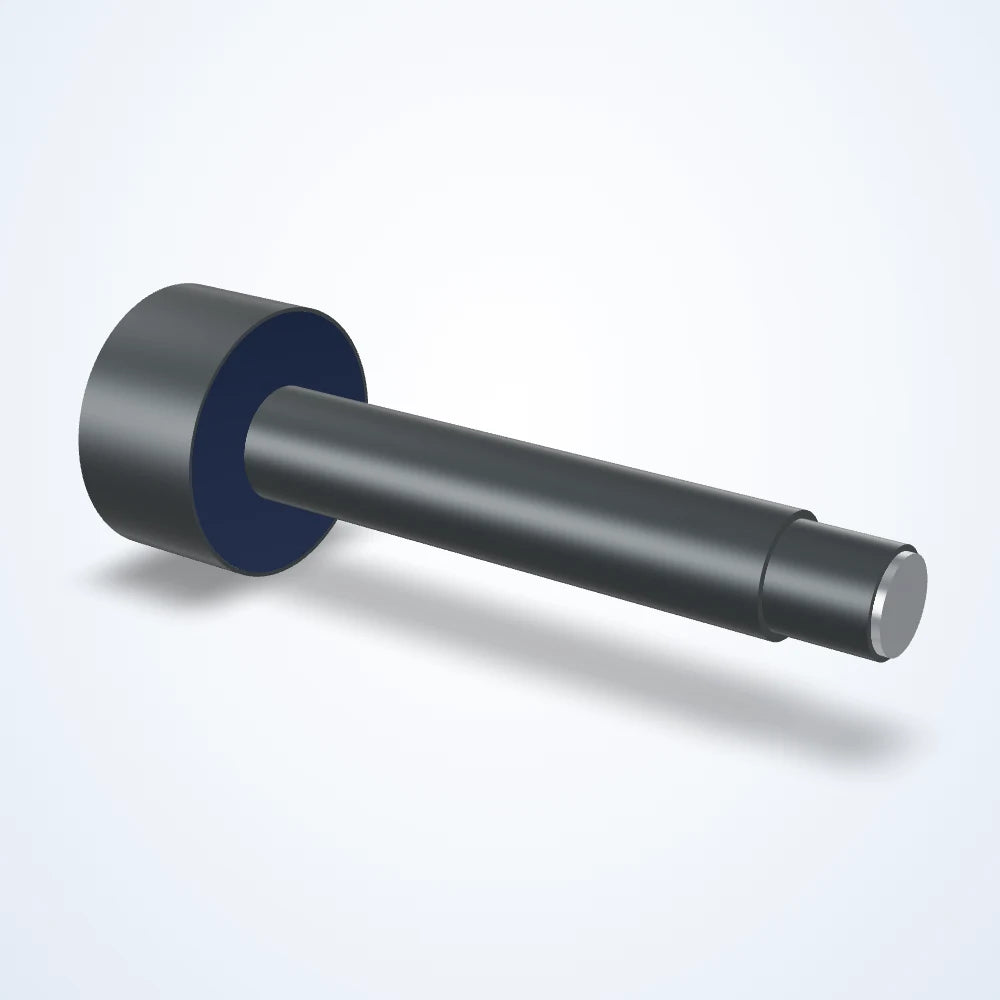

  • 0.306× telecentric lens, APS-H, F-mount (LS-TCL-0161) - view 2

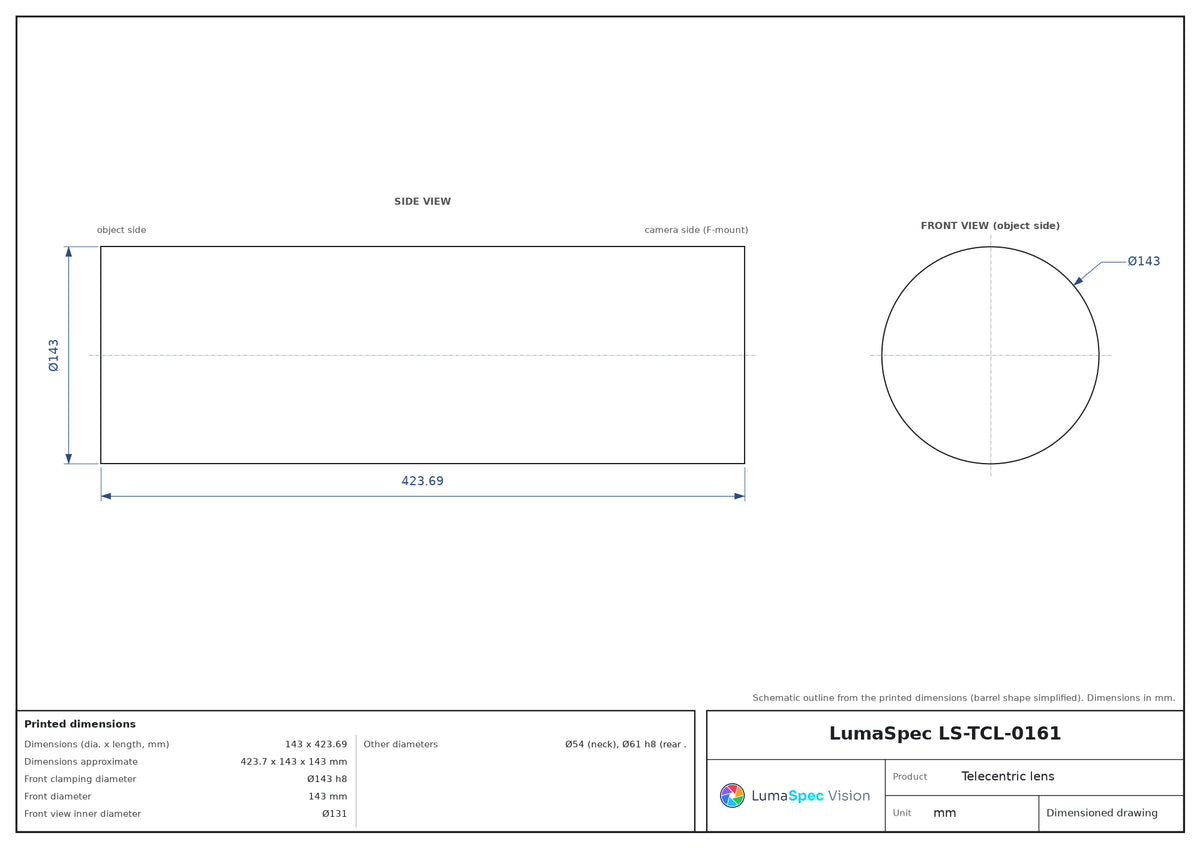

  • LS-TCL-0161 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.306× telecentric lens, APS-H, F-mount (LS-TCL-0161)

Model LS-TCL-0161

  • MountF-mount
  • SensorAPS-H
  • Resolution17 μm
  • Sensor formatAPS-H
$7,009.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0161
Aps-c IMX34273.07 x 54.8 mm
Aps-h python 25K75.29 x 75.29 mm
Flange distance46.5 mm (F-mount)
Lens typeTelecentric
Line 4k-7µm93.69 mm
Phase adjustmentyes
Python 16K60.24 x 60.24 mm
Working ƒ/nf/8

Optics

Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Image circle33.5 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Resolution (pixel size)17 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions (dia. x length, mm)143 x 423.69
Dimensions approximate423.7 x 143 x 143 mm
Front clamping diameterØ143 h8
Front diameter143 mm
Front view inner diameterØ131
Other diametersØ54 (neck), Ø61 h8 (rear clamping), Ø64 (mount ring)
Rear protrusion behind mount4.3 mm
Weight (g)2699
