0.233× telecentric lens, APS-H, M42-mount (LS-TCL-0164)

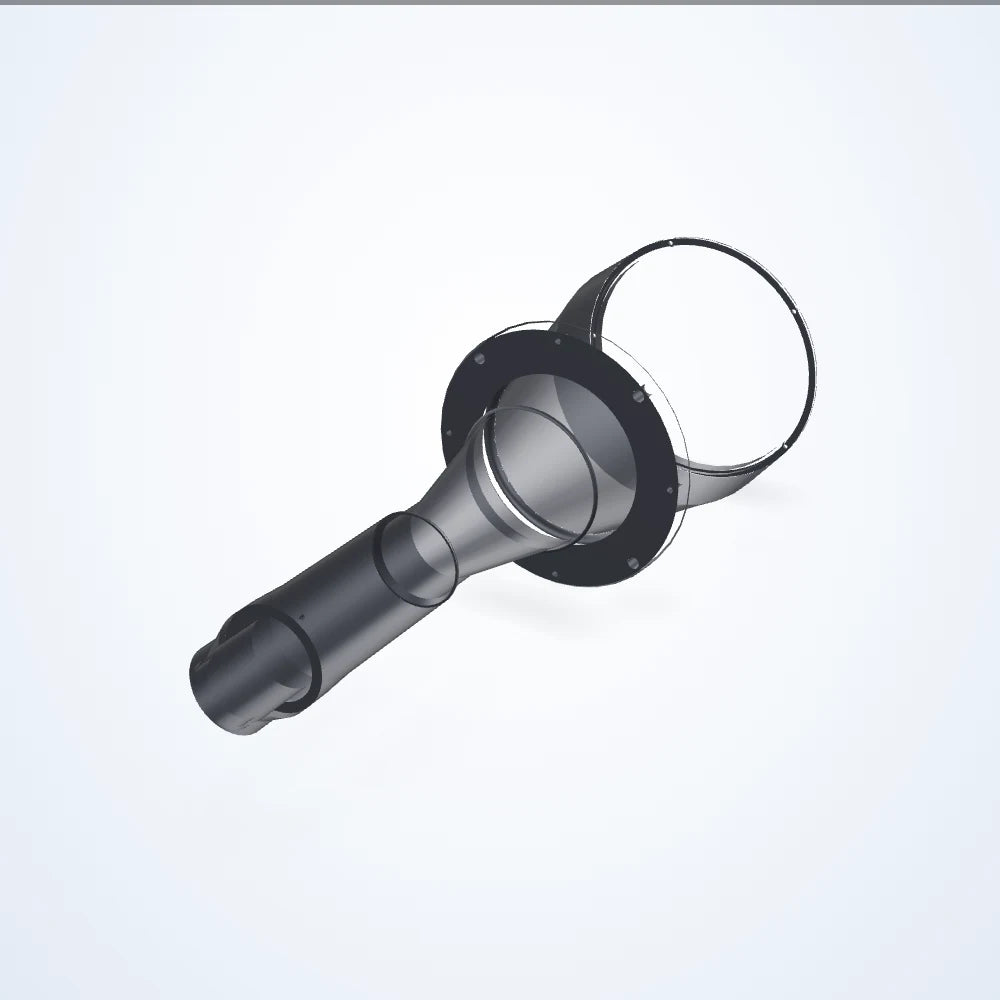

  • 0.233× telecentric lens, APS-H, M42-mount (LS-TCL-0164)

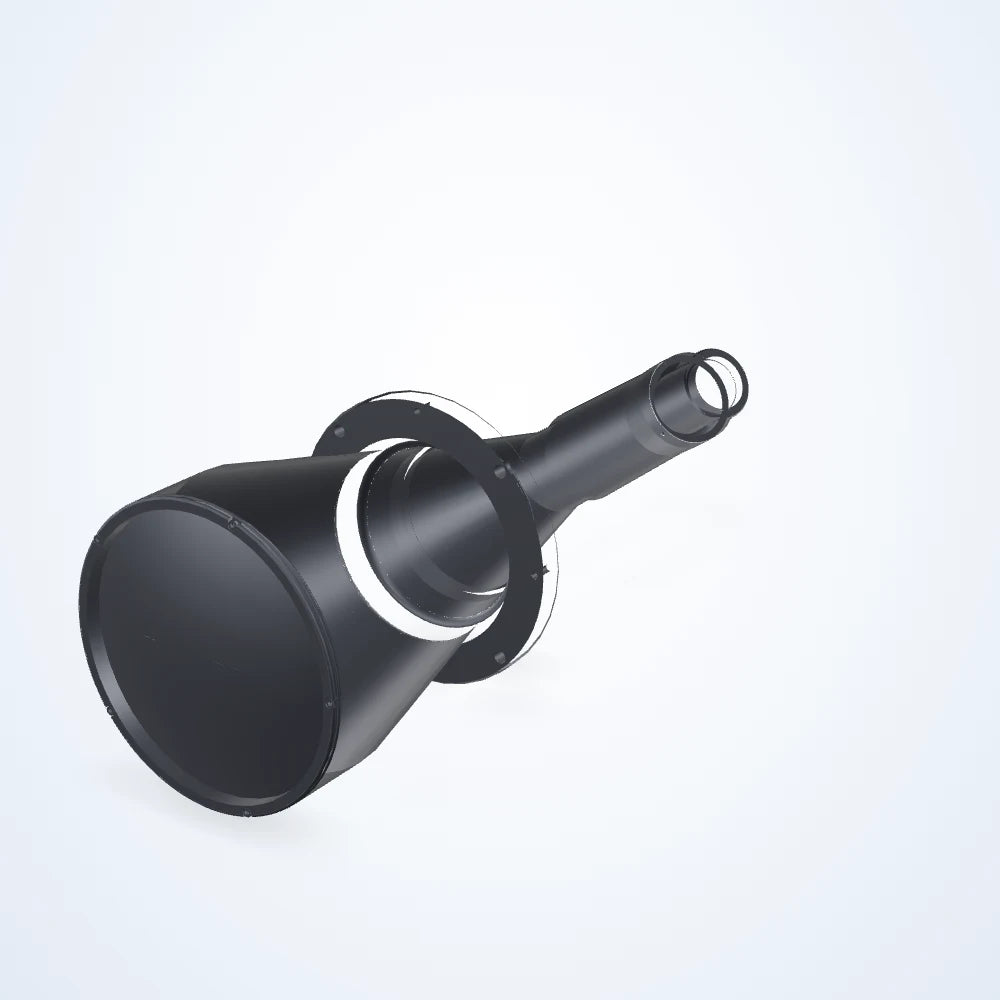

  • 0.233× telecentric lens, APS-H, M42-mount (LS-TCL-0164) - view 2

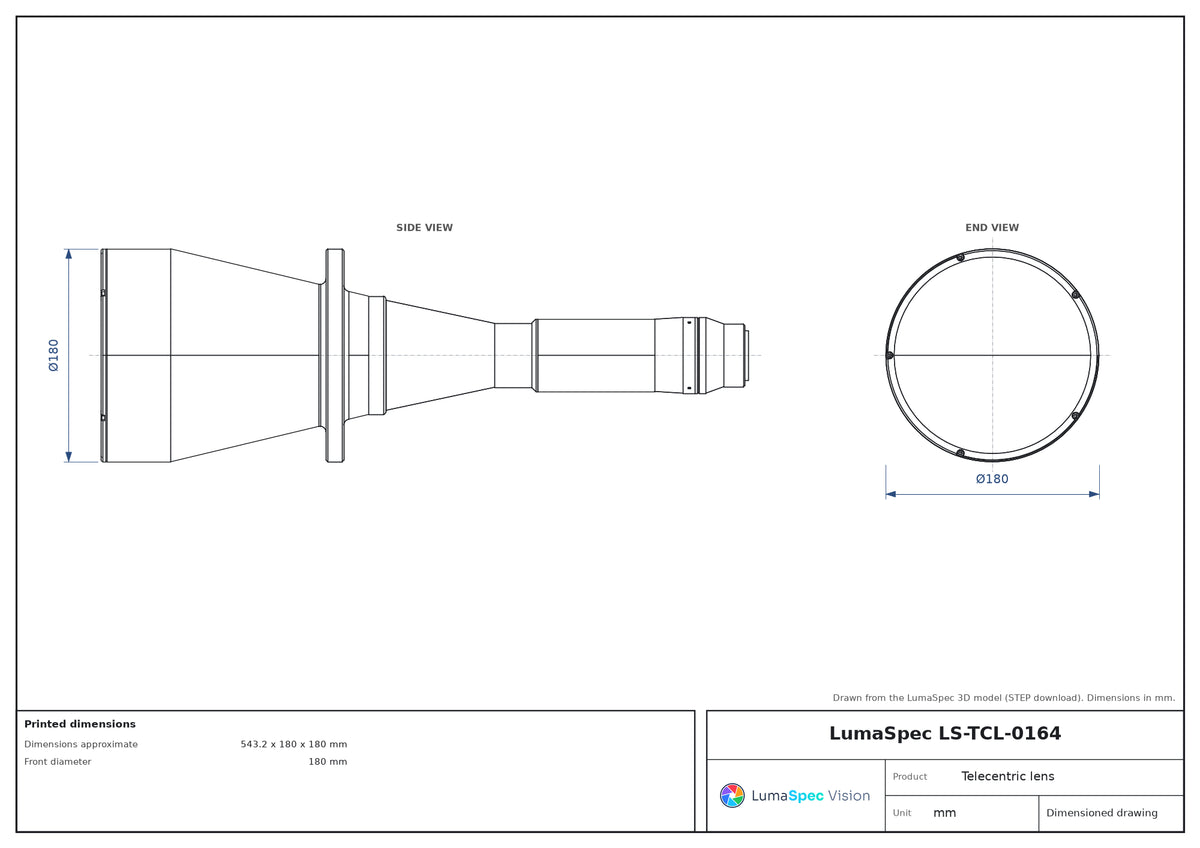

  • LS-TCL-0164 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.233× telecentric lens, APS-H, M42-mount (LS-TCL-0164)

Model LS-TCL-0164

  • Magnification0.233×
  • MountM42
  • SensorAPS-H
  • Working distance303.9 mm
  • Resolution22 μm
$7,159.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.233× telecentric lens, APS-H, M42-mount (LS-TCL-0164)LS-TCL-0164

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 303.9 mm; depth of field 12.2 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0164
Aps-c IMX34295.97 x 71.97 mm
Aps-h python 25K98.88 x 98.88 mm
Lens typeTelecentric
Line 4k-7µm123.05 mm
Python 16K79.11 x 79.11 mm
Working ƒ/nf/8

Optics

Magnification0.233×
Working distance303.9 mm
Depth of field12.2 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle33.5 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor formatAPS-H
Resolution (pixel size)22 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate543.2 x 180 x 180 mm
Front diameter180 mm
Weight5405 Grams

LS-TCL-0164

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-TCL-0164 — Telecentric lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Magnification
0.233×
Sensor format
APS-H
Mount
M42-mount
Working distance
303.9 mm

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
