1.825× telecentric lens, APS-H, M42-mount (LS-TCL-0148)

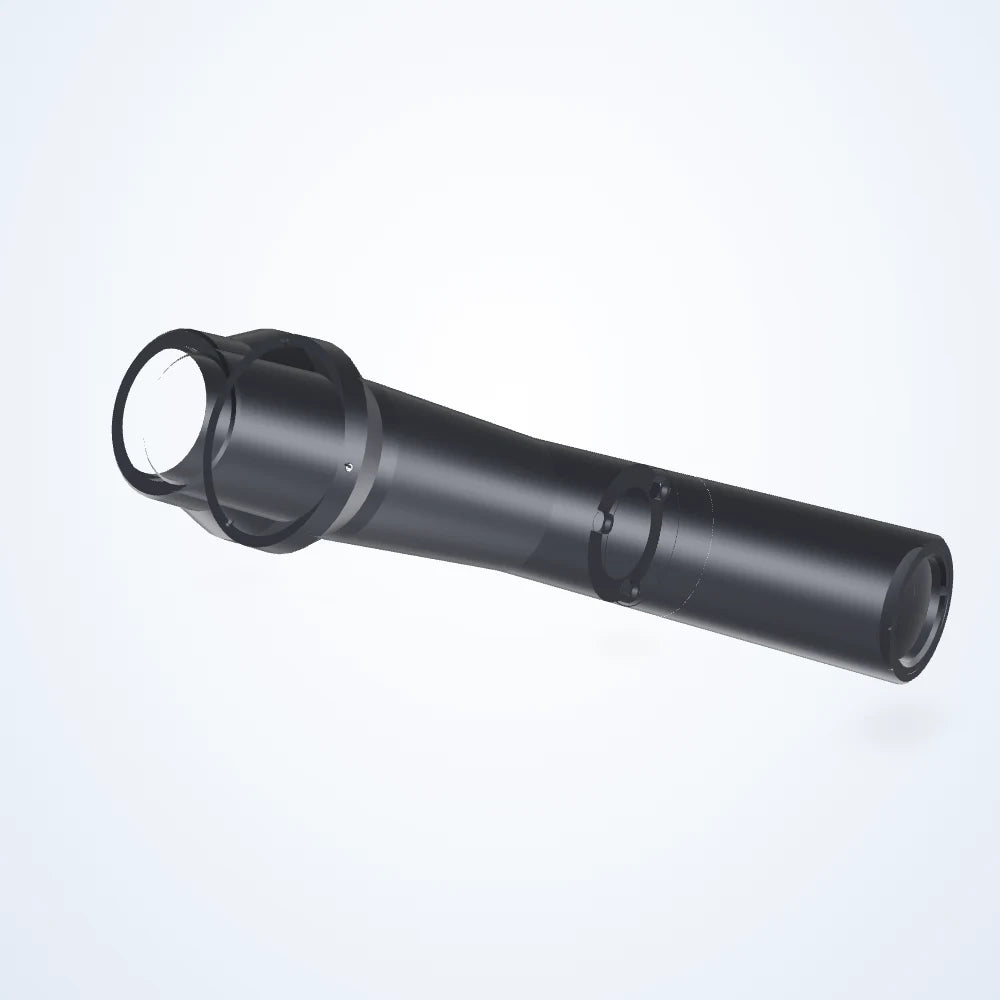

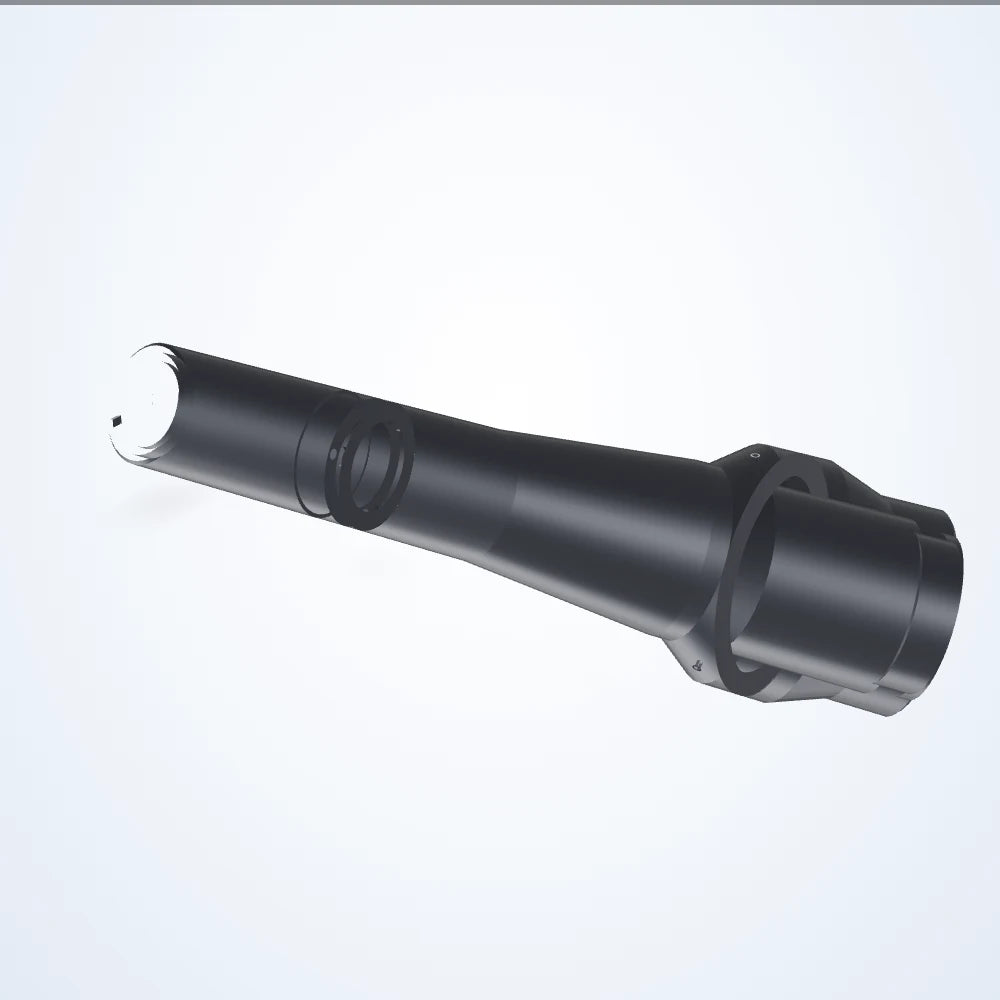

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

1.825× telecentric lens, APS-H, M42-mount (LS-TCL-0148)

Model LS-TCL-0148

Magnification1.825×
MountM42
SensorAPS-H
Working distance42.3 mm
Resolution6 μm

$5,479.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 42.3 mm; depth of field 0.4 mm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0148
Aps-c IMX342	12.25 x 9.19 mm
Aps-h python 25K	12.62 x 12.62 mm
Lens type	Telecentric
Line 4k-7µm	15.71 mm
Python 16K	10.1 x 10.1 mm
Working ƒ/n	f/16

Optics

Magnification	1.825×
Working distance	42.3 mm
Depth of field	0.4 mm
Distortion maximum (%)	< 0.1
Distortion typical (%)	< 0.08
Filter thread	No Filter Threads
Image circle	33.5 mm
Telecentricity maximum	0.10°
Telecentricity typical	< 0.08°

Sensor and imaging

Sensor format	APS-H
Resolution (pixel size)	6 μm

Environment and compliance

Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Mechanical

Mount	M42-mount

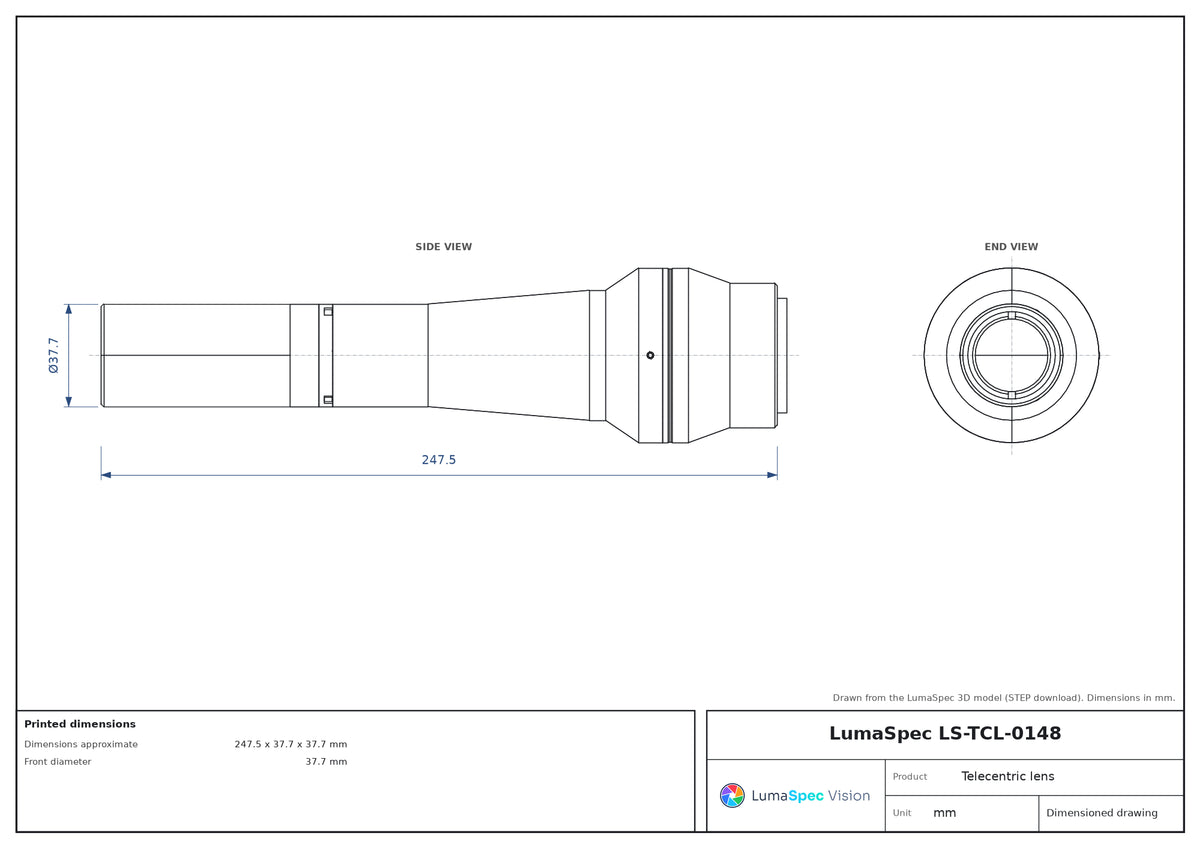

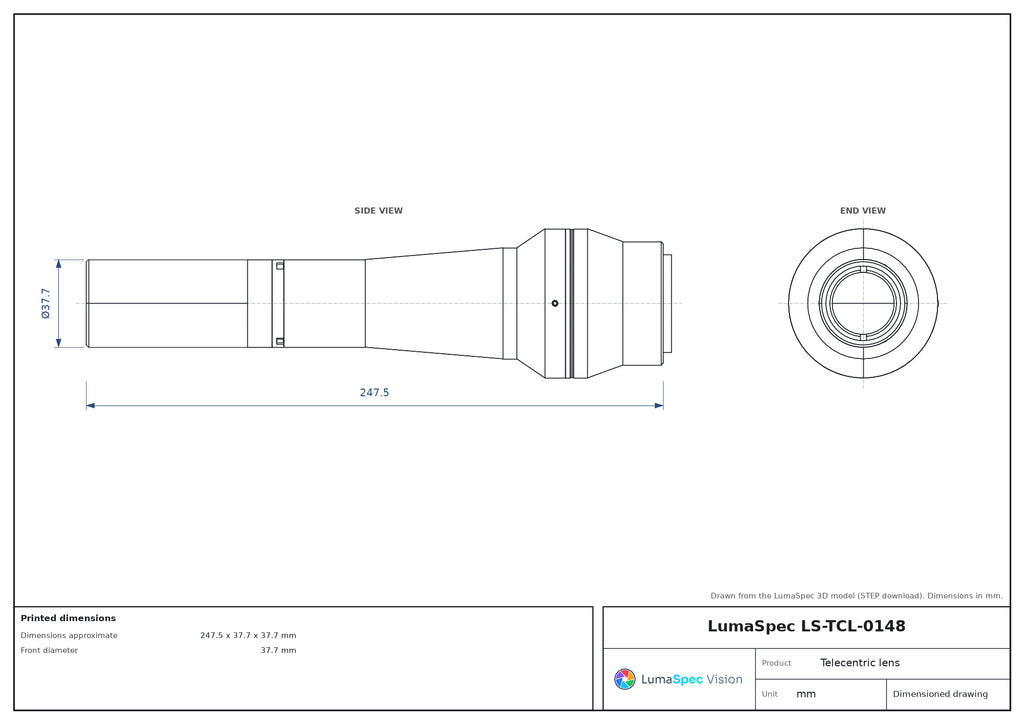

Dimensions approximate	247.5 x 37.7 x 37.7 mm
Front diameter	37.7 mm
Weight	842 Grams
