0.75× telecentric lens, 35mm Full Frame, F-mount (LS-TCL-0193)

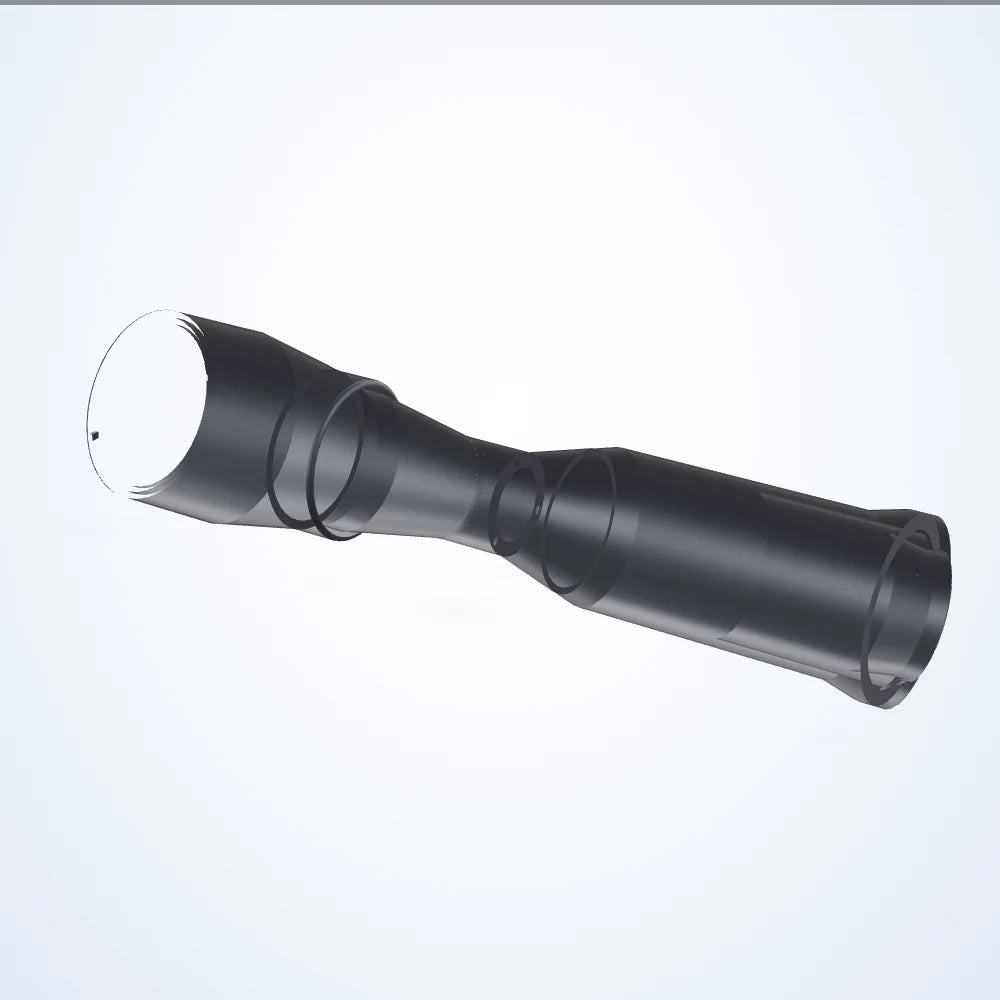

  • 0.75× telecentric lens, 35mm Full Frame, F-mount (LS-TCL-0193)

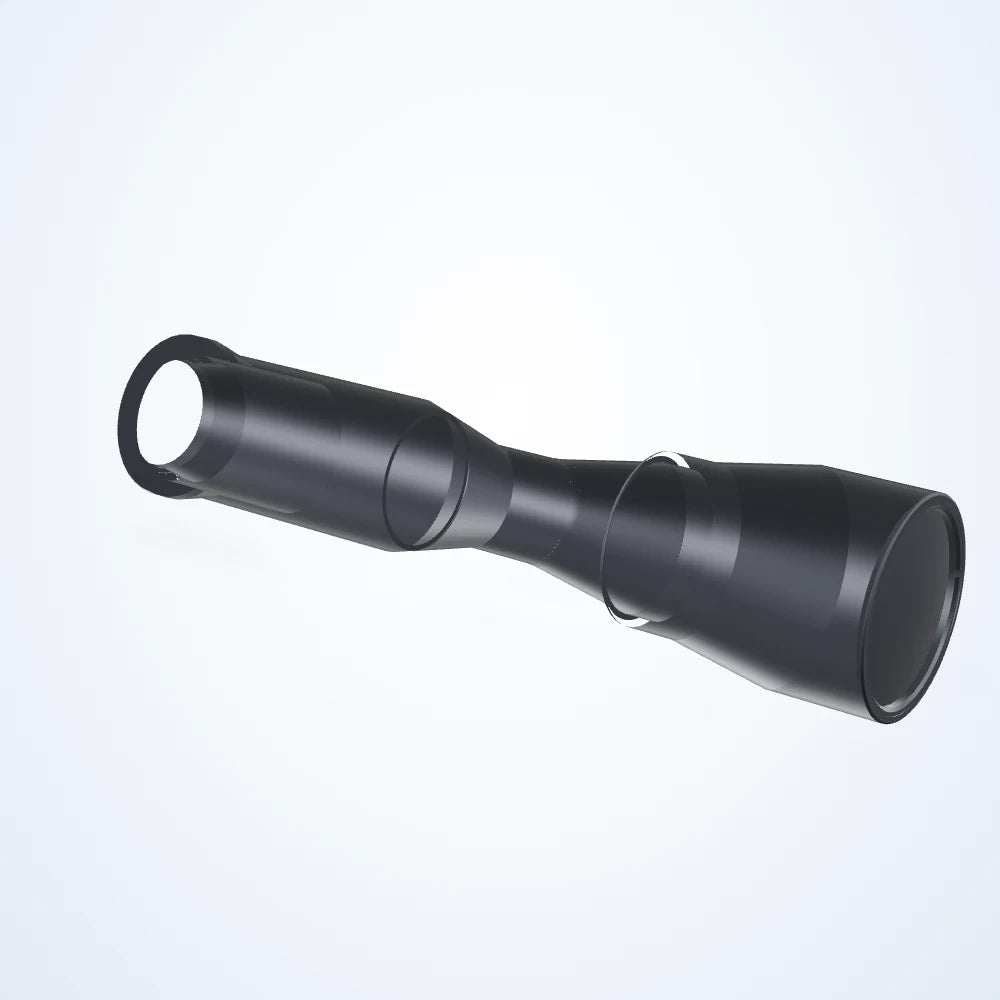

  • 0.75× telecentric lens, 35mm Full Frame, F-mount (LS-TCL-0193) - view 2

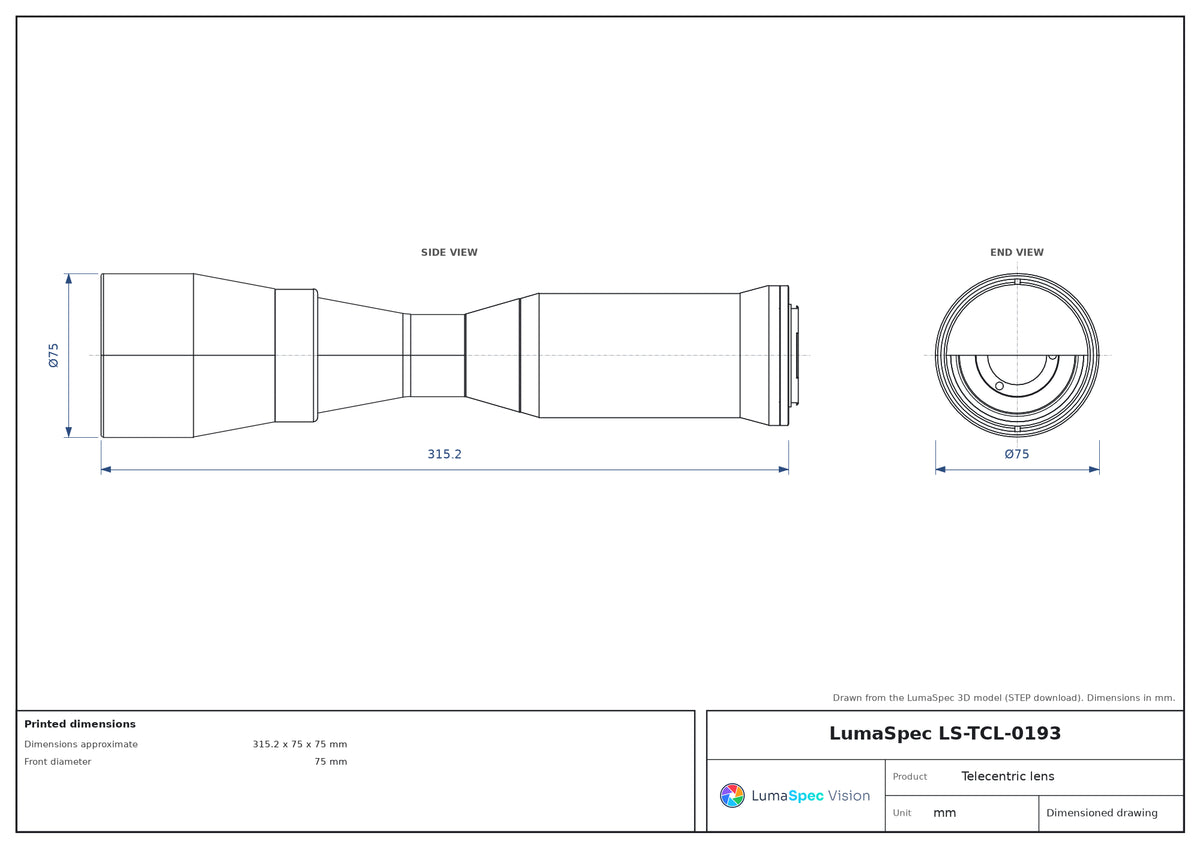

  • LS-TCL-0193 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.75× telecentric lens, 35mm Full Frame, F-mount (LS-TCL-0193)

Model LS-TCL-0193

  • Magnification0.75×
  • MountF-mount
  • SensorFull frame
  • Working distance125.6 mm
  • Resolution14 μm
$4,869.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 125.6 mm; depth of field 2.3 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0193
Aps-c IMX34229.81 x 22.36 mm
CHR70M41.33 x 29.32 mm
CMV5000048.58 x 36.82 mm
Fov @ full frame48 x 32 mm
Lens typeTelecentric
Line 8k-5µm54.4 mm
Working ƒ/nf/16

Optics

Magnification0.75×
Working distance125.6 mm
Depth of field2.3 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.05
Filter threadNo Filter Threads
Image circle43.3 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.06°

Sensor and imaging

Sensor format35mm Full Frame
Resolution (pixel size)14 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate315.2 x 75 x 75 mm
Front diameter75 mm
Weight965 Grams
