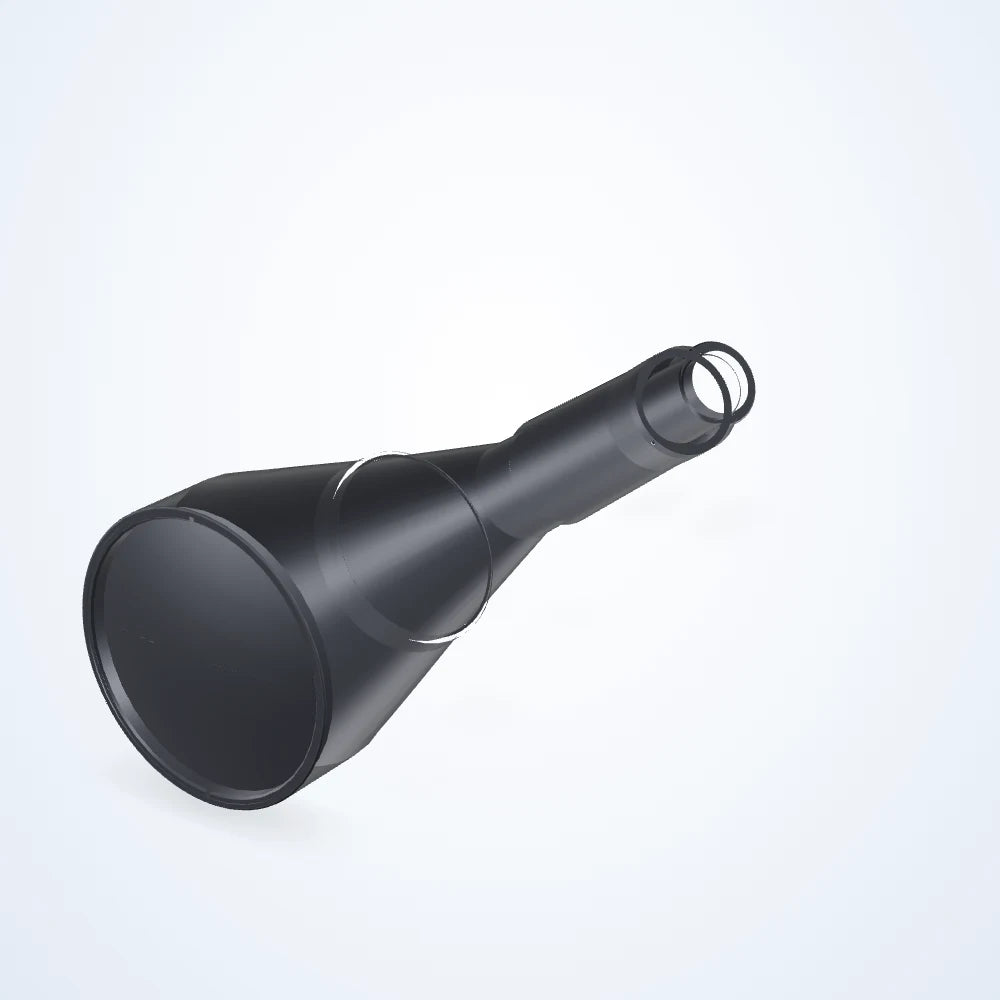

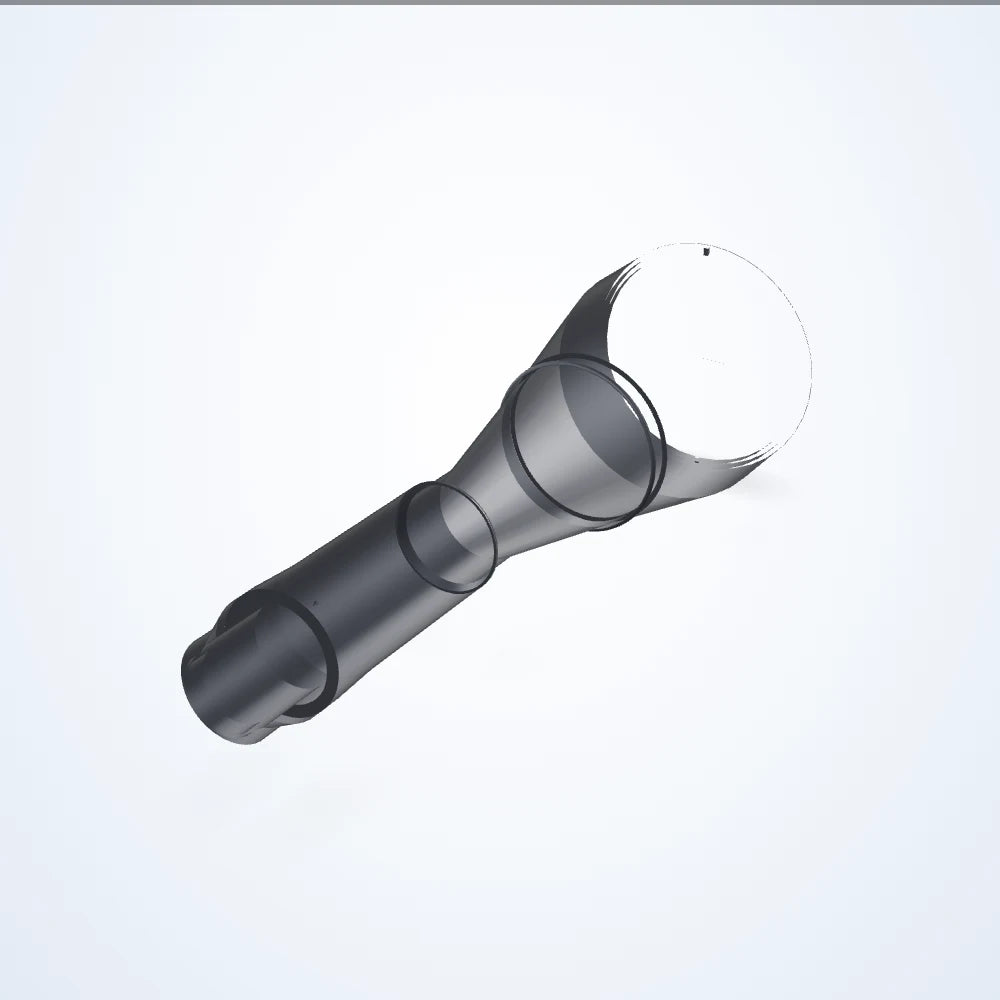

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.306× telecentric lens, APS-H, M42-mount (LS-TCL-0162)
Model LS-TCL-0162
- Magnification0.306×
- MountM42
- SensorAPS-H
- Working distance256 mm
- Resolution17 μm
$7,009.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 256 mm; depth of field 7 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0162 |
|---|---|
| Aps-c IMX342 | 73.07 x 54.8 mm |
| Aps-h python 25K | 75.29 x 75.29 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 93.69 mm |
| Python 16K | 60.24 x 60.24 mm |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.306× |
|---|---|
| Working distance | 256 mm |
| Depth of field | 7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 33.5 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | APS-H |
|---|---|
| Resolution (pixel size) | 17 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |
Mechanical
| Mount | M42-mount |
|---|---|
| Dimensions approximate | 458.2 x 143 x 143 mm |
| Front diameter | 143 mm |
| Weight | 2952 Grams |

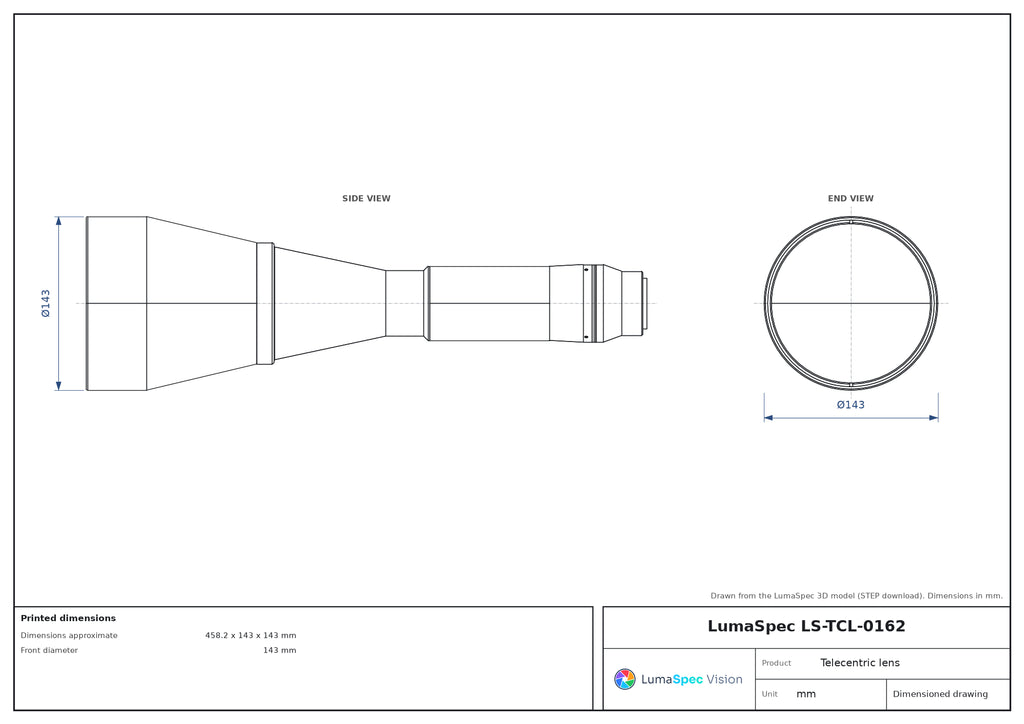

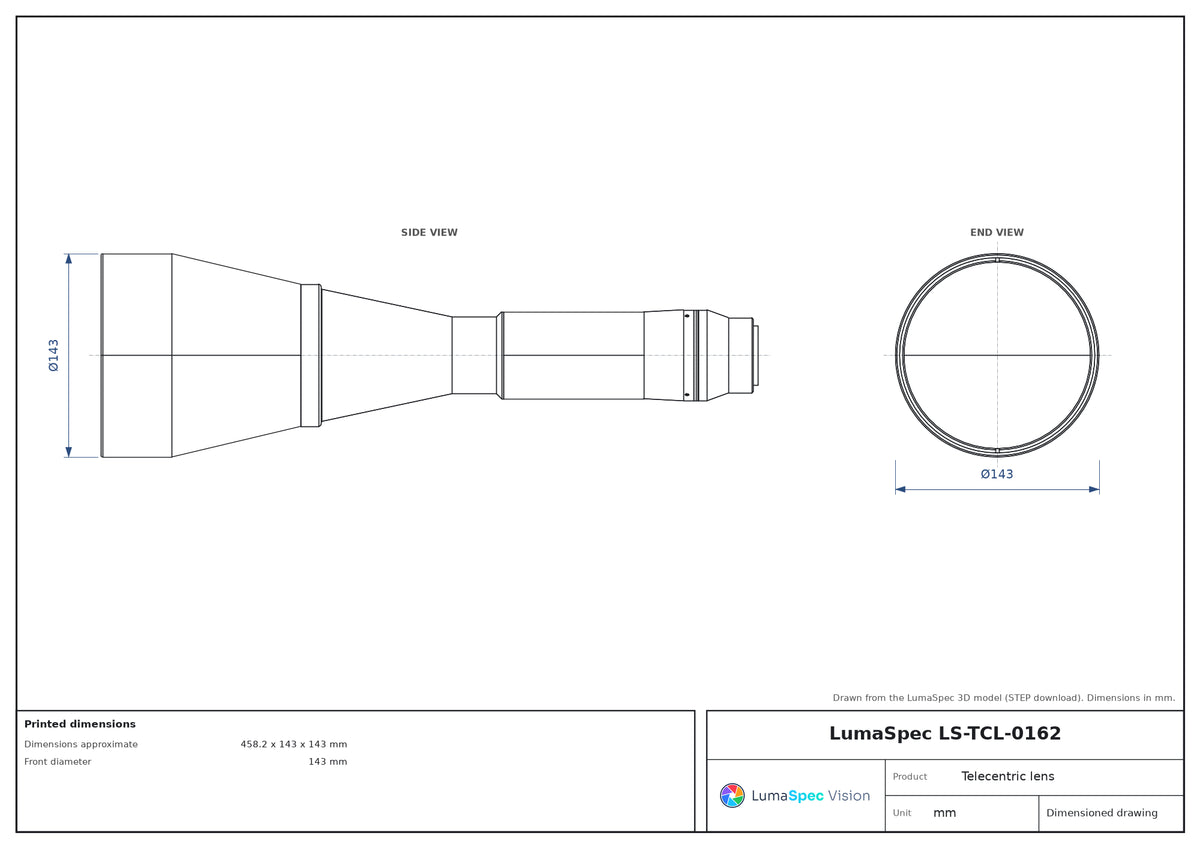

LS-TCL-0162
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 0.306×
- Sensor format
- APS-H
- Mount
- M42-mount
- Working distance
- 256 mm
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
