Telecentric lenses

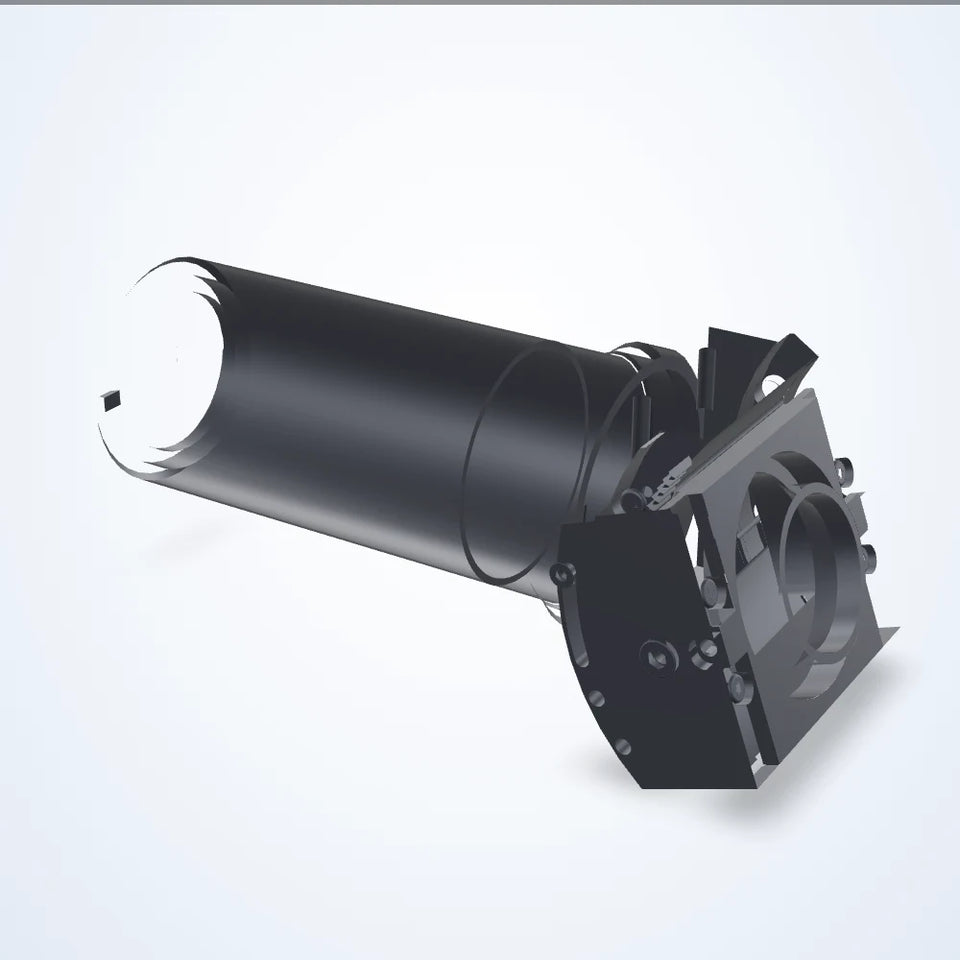

Telecentric lens series, 2/3", C-mount (S30)
- 8 models
- from $2,539.00
- Series LS-TCL-S30
The Telecentric lens series, 2/3", C-mount (S30) is a range of 8 telecentric lenses from LumaSpec Vision, from $2,539.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.066× Vertical, 0.078× Vertical, 0.098× Vertical, 0.112× Vertical, 0.133× Vertical, 0.177× Vertical, 0.262× Vertical, 0.478× Vertical
- Mount
- C-mount
- Image circle
- 8-11 mm
- Type
- Object-side telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x
- Working distance
- Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 2/3"
All 8 models in the Telecentric lens series, 2/3", C-mount (S30)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-0440 | 0.478× Vertical | 43.1 mm | 112.6 x 37.7 x 37.7 mm | < 0.07 | $2,539.00quote | View |
| LS-TCL-0441 | 0.262× Vertical | 67.2 mm | 137.5 x 44 x 44 mm | < 0.1 | $2,679.00quote | View |
| LS-TCL-0442 | 0.177× Vertical | 102.5 mm | 164.9 x 61 x 61 mm | < 0.1 | $2,819.00quote | View |
| LS-TCL-0443 | 0.133× Vertical | 132.9 mm | 200.6 x 75 x 75 mm | < 0.1 | $3,099.00quote | View |
| LS-TCL-0444 | 0.112× Vertical | 157.8 mm | 224.4 x 80 x 80 mm | < 0.08 | $3,239.00quote | View |
| LS-TCL-0445 | 0.098× Vertical | 181.8 mm | 245.5 x 100 x 100 mm | < 0.07 | $3,519.00quote | View |
| LS-TCL-0446 | 0.078× Vertical | 226.7 mm | 291.2 x 116 x 116 mm | < 0.1 | $4,219.00quote | View |
| LS-TCL-0447 | 0.066× Vertical | 278.6 mm | 336.6 x 143 x 143 mm | < 0.08 | $5,379.00quote | View |
