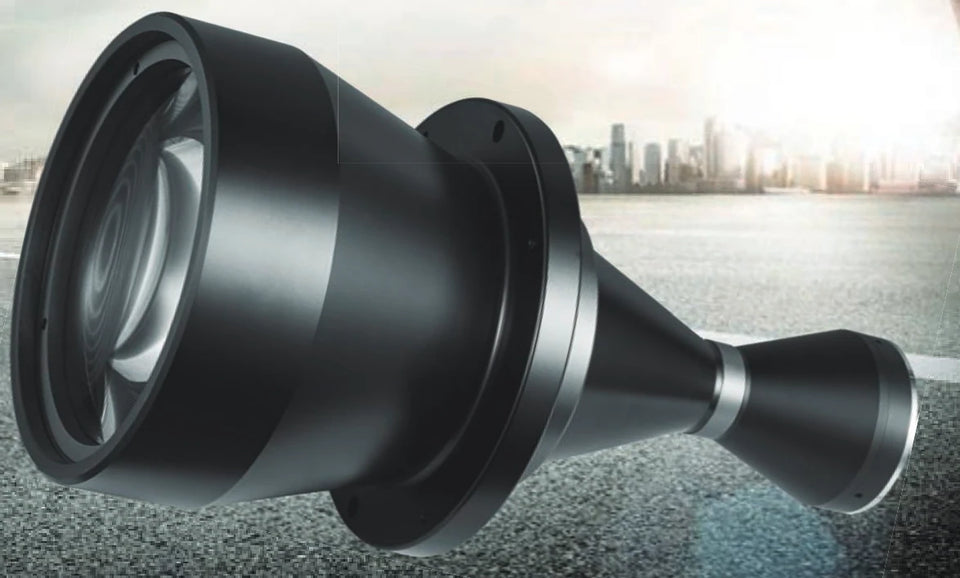

Bi-telecentric lens for 35mm Full cameras (LS-TCL-S85)
- 23 models
- from $1,829.00
- Series LS-TCL-S85
The Bi-telecentric lens for 35mm Full cameras (LS-TCL-S85) is a range of 23 telecentric lenses from LumaSpec Vision, from $1,829.00. It comes in 23 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.147x, WD 465 mm, F or Other-mount, 0.182x, WD 410 mm, 0.23x, WD 330 mm, F or Other-mount, 0.257x, WD 318 mm, 0.292x, WD 301 mm, 0.321x, WD 288 mm, 0.367x, WD 280 mm, F or Other-mount, 0.392x, WD 251 mm, 0.439x, WD 238 mm, F-mount, 0.468x, WD 254 mm, 0.486x, WD 208 mm, F-mount, 0.546x, WD 229 mm, 0.547x, WD 230 mm, F-mount, 0.607x, WD 178 mm, 0.682x, WD 159 mm, 0.686x, WD 187 mm and 7 more
- Mount
- F-mount
- Image circle
- 30-45 mm
- Type
- Bi-telecentric
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- APS-H / Full frame
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 23 models in the Bi-telecentric lens for 35mm Full cameras (LS-TCL-S85)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2725 | 1.043x, WD 118 mm, F-mount | 1.043 | 118±2 | 17.1 | $1,829.00 | View |
| LS-TCL-2723 | 1.208x, WD 111 mm | 1.208 | 111±2 | from $1,849.00 | View | |
| LS-TCL-2726 | 0.911x, WD 128 mm | 0.911 | 128±2 | 17.2 | from $1,949.00 | View |
| LS-TCL-2727 | 0.92x, WD 138 mm, F or Other-mount | 0.920 | 138±3 | 25.9 | $1,949.00 | View |
| LS-TCL-2722 | 1.503x, WD 72 mm | 1.503 | 72±2 | from $2,039.00 | View | |
| LS-TCL-2724 | 1.035x, WD 119 mm | 1.035 | 119±2 | 17.2 | from $2,049.00 | View |
| LS-TCL-2728 | 0.781x, WD 138 mm | 0.781 | 138±2 | 14.8 | from $2,109.00 | View |
| LS-TCL-2733 | 0.547x, WD 230 mm, F-mount | 0.547 | 230±2 | 12.8 | $2,149.00 | View |
| LS-TCL-2729 | 0.686x, WD 187 mm | 0.686 | 187±2 | 25.9 | from $2,289.00 | View |
| LS-TCL-2730 | 0.682x, WD 159 mm | 0.682 | 159±2 | from $2,299.00 | View | |
| LS-TCL-2736 | 0.439x, WD 238 mm, F-mount | 0.439 | 238±3 | 10.2 | $2,449.00 | View |
| LS-TCL-2734 | 0.486x, WD 208 mm, F-mount | 0.489 | 208±2 | 11.4 | $2,449.00 | View |
| LS-TCL-2731 | 0.607x, WD 178 mm | 0.607 | 178±2 | 12.9 | from $2,479.00 | View |
| LS-TCL-2732 | 0.546x, WD 229 mm | 0.546 | 229±2 | 25.9 | from $2,679.00 | View |
| LS-TCL-2735 | 0.468x, WD 254 mm | 0.468 | 254±3 | from $3,029.00 | View | |
| LS-TCL-2737 | 0.392x, WD 251 mm | 0.392 | 251±3 | from $3,459.00 | View | |
| LS-TCL-2738 | 0.367x, WD 280 mm, F or Other-mount | 0.367 | 280±5 | 14.8 | $3,629.00 | View |
| LS-TCL-2739 | 0.321x, WD 288 mm | 0.321 | 288±4 | from $4,089.00 | View | |
| LS-TCL-2740 | 0.292x, WD 301 mm | 0.292 | 301±4 | 14.8 | from $4,379.00 | View |
| LS-TCL-2741 | 0.257x, WD 318 mm | 0.257 | 318±4 | from $4,839.00 | View | |
| LS-TCL-2742 | 0.23x, WD 330 mm, F or Other-mount | 0.230 | 330±5 | 10.3 | $5,379.00 | View |
| LS-TCL-2743 | 0.182x, WD 410 mm | 0.182 | 410±5 | from $6,679.00 | View | |
| LS-TCL-2744 | 0.147x, WD 465 mm, F or Other-mount | 0.147 | 465±6 | 10.3 | $8,699.00quote | View |
