Bi-telecentric lens for 35mm Full cameras (LS-TCL-S85)

Representative photo of this series

Telecentric lenses

Bi-telecentric lens for 35mm Full cameras, 0.257x, WD 318 mm (LS-TCL-2741)

Model LS-TCL-2741

Magnification0.257x
MountF-mount
SensorFull frame
Working distance318±4
Field of view140.7x93.8

$4,839.00

Ships in 2-3 weeks

11.02 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bi-telecentric lens series for sensors up to 35 mm full frame (44 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2741

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
F/#	6
MTF30 (lp/mm)	>80
Magnification (x)	0.257
Working distance (mm)	318±4
Depth of field (mm)	±3
Field of view on 36.17x24.11with KAI29050 (mm x mm)	140.7x93.8
Field of view (dia. mm)	170
Object-to-image distance I/O (mm)	840.2

Sensor and imaging

Max sensor size (dia. mm)	44(35mm)
Sensor format	35 mm full frame (44 mm dia.)

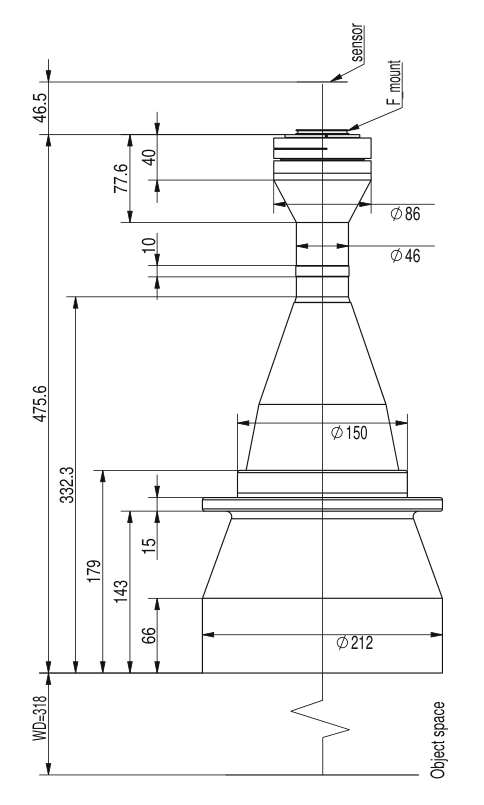

Mechanical

Mount	F-Mount/Other
Length (mm)	475.6
Weight (kg)	7.8

Downloads

Datasheet (PDF)LS-TCL-2741 · 4.0 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S85 series lens comes with an imaging quality test report
Optimized for 4/3"~35mm F-Mount cameras
Perfectly suitable for 4K and 8K line scan cameras
FOV ranges from 26mm to 300mm
Very high resolution, low distortion and homogeneous image quality
Yield constant magnification over defined depth of field
Customized mounts available.

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)
