Telecentric lenses
Bi-telecentric lens for 35mm Full cameras, 1.043x, WD 118 mm, F-mount (LS-TCL-2725)
Model LS-TCL-2725
- Magnification1.043x
- MountF-mount
- SensorFull frame
- Working distance118±2
- Field of view42
$1,829.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.82 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Bi-telecentric lens series for sensors up to 35 mm full frame (44 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-2725 |
|---|---|
| FOV with 20.48mm with Link-2K (mm x mm) | 19.6mm |
| FOV with 28.67mm with Link-4K (mm x mm) | 27.4mm |
| FOV with 40.96mm with Link-8K (mm x mm) | 39.2mm |
| FOV with 36.0x24.0 with 35mm Format (mm x mm) | 34.5x23.0 |
Optics
| Distortion (% max) | <0.1 |
|---|---|
| Telecentricity (deg max) | <0.1 |
| Magnification (x) | 1.043 |
| Object field of view (dia. mm) | 42 |
| Working distance (mm) | 118±2 |
| Best Aperture (F/#) | 17.1 |
| MTF30 (lp/mm) | >62 |
| Depth of field (mm) | ±1 |
Sensor and imaging
| Max sensor size (dia. mm) | 44(35mm) |
|---|
Interfaces and I/O
| Length of I/O (mm) | 358.9 |
|---|

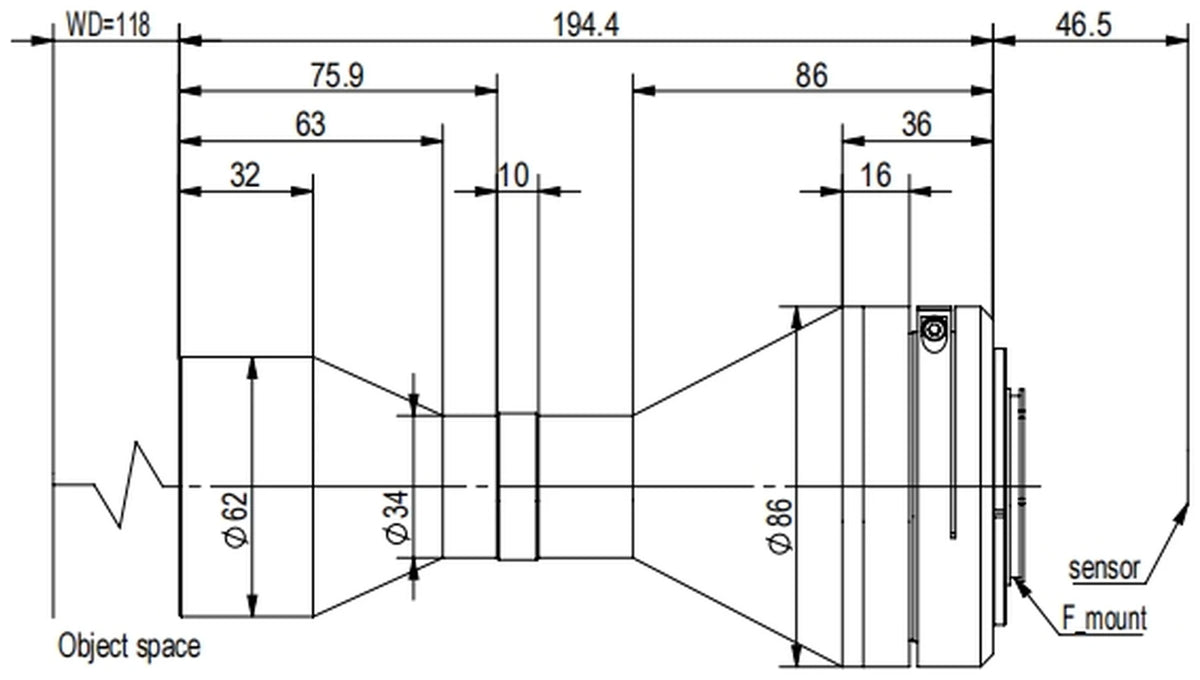

Mechanical
| Mount | F-Mount/Other |
|---|---|
| Length (mm) | 194.4 |
| Weight (kg) | 1.23 |
Other models in the Bi-telecentric lens for 35mm Full cameras (LS-TCL-S85) series
See all 23 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-2723 | 1.208x, WD 111 mm | from $1,849.00 | 9 in stock | View |
| LS-TCL-2726 | 0.911x, WD 128 mm | from $1,949.00 | 14 in stock | View |
| LS-TCL-2727 | 0.92x, WD 138 mm, F or Other-mount | $1,949.00 | 4 in stock | View |
| LS-TCL-2722 | 1.503x, WD 72 mm | from $2,039.00 | 11 in stock | View |
| LS-TCL-2724 | 1.035x, WD 119 mm | from $2,049.00 | 8 in stock | View |
| LS-TCL-2728 | 0.781x, WD 138 mm | from $2,109.00 | 13 in stock | View |
| LS-TCL-2733 | 0.547x, WD 230 mm, F-mount | $2,149.00 | 2 in stock | View |
| LS-TCL-2729 | 0.686x, WD 187 mm | from $2,289.00 | 11 in stock | View |
| LS-TCL-2730 | 0.682x, WD 159 mm | from $2,299.00 | 8 in stock | View |
| LS-TCL-2736 | 0.439x, WD 238 mm, F-mount | $2,449.00 | 5 in stock | View |
| LS-TCL-2734 | 0.486x, WD 208 mm, F-mount | $2,449.00 | 4 in stock | View |
| LS-TCL-2731 | 0.607x, WD 178 mm | from $2,479.00 | 10 in stock | View |
| LS-TCL-2732 | 0.546x, WD 229 mm | from $2,679.00 | 13 in stock | View |
| LS-TCL-2735 | 0.468x, WD 254 mm | from $3,029.00 | 12 in stock | View |
| LS-TCL-2737 | 0.392x, WD 251 mm | from $3,459.00 | 11 in stock | View |
| LS-TCL-2738 | 0.367x, WD 280 mm, F or Other-mount | $3,629.00 | 5 in stock | View |
| LS-TCL-2739 | 0.321x, WD 288 mm | from $4,089.00 | 12 in stock | View |
| LS-TCL-2740 | 0.292x, WD 301 mm | from $4,379.00 | 11 in stock | View |
| LS-TCL-2741 | 0.257x, WD 318 mm | from $4,839.00 | 14 in stock | View |
| LS-TCL-2742 | 0.23x, WD 330 mm, F or Other-mount | $5,379.00 | 5 in stock | View |
| LS-TCL-2743 | 0.182x, WD 410 mm | from $6,679.00 | 10 in stock | View |
| LS-TCL-2744 | 0.147x, WD 465 mm, F or Other-mount | $8,699.00 Quote | Ships in 2-3 weeks | View |
