Bi-telecentric lens for 35mm Full cameras, 0.92x, WD 138 mm, F or Other-mount (LS-TCL-2727)

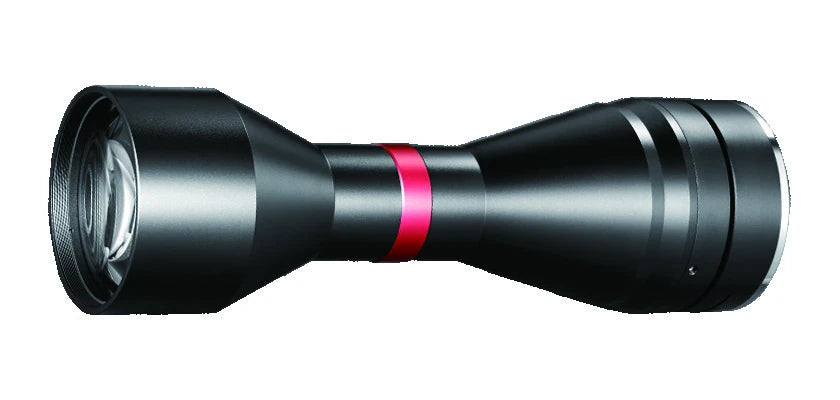

  • Bi-telecentric lens for 35mm Full cameras, 0.92x, WD 138 mm, F or Other-mount (LS-TCL-2727)

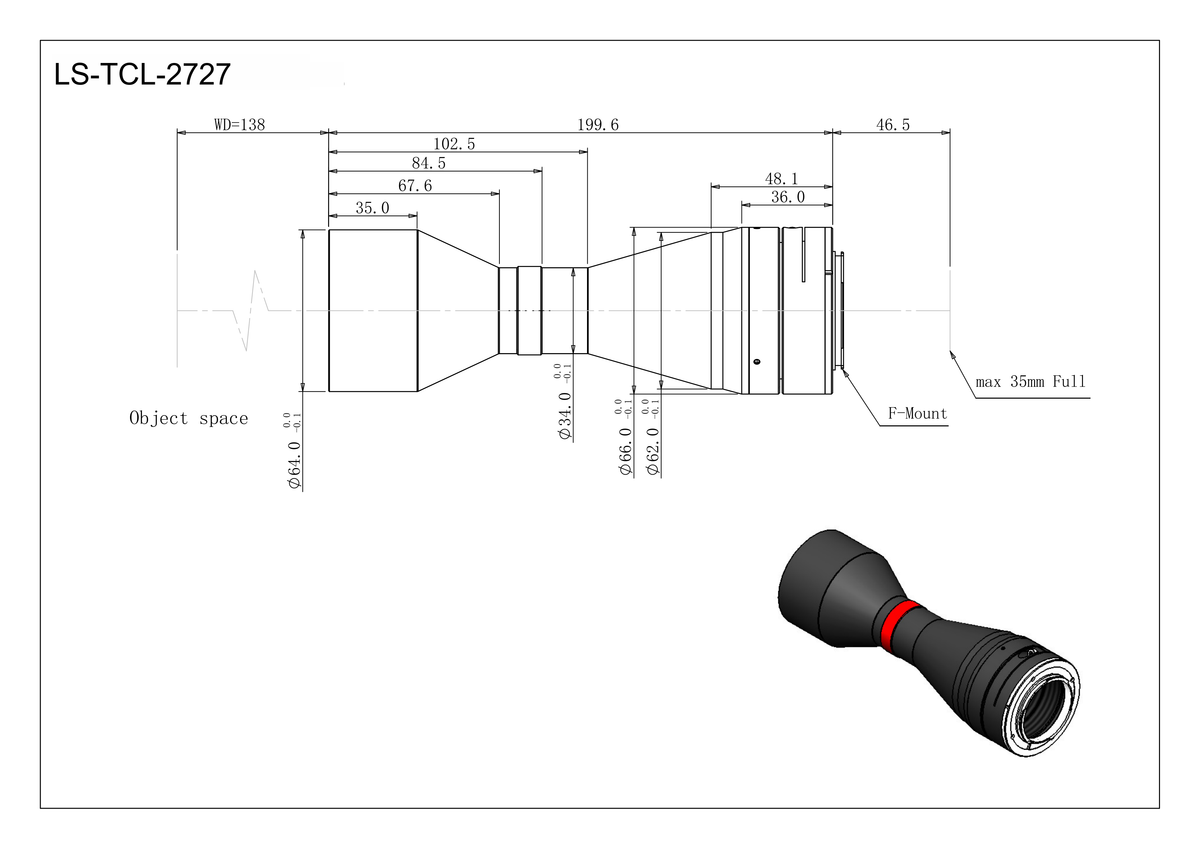

  • LS-TCL-2727 dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 35mm Full cameras, 0.92x, WD 138 mm, F or Other-mount (LS-TCL-2727)

Model LS-TCL-2727

  • Magnification0.920x
  • MountF-mount
  • SensorFull frame
  • Working distance138±3
  • Field of view48
$1,949.00

Ships in 2-3 weeks

1.36 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens for 35mm Full cameras, 0.92x, WD 138 mm, F or Other-mount (LS-TCL-2727)LS-TCL-2727

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-telecentric lens series for sensors up to 35 mm full frame (44 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2727

Optics

Distortion (% max)<0.1
Telecentricity (deg max)<0.1
Magnification (x)0.920
Object field of view (dia. mm)48
Working distance (mm)138±3
Best Aperture (F/#)25.9
MTF30 (lp/mm)>30
Depth of field (mm)±1.2@F25.9
Field of view with Link-2K (20.48mm sensor) (mm x mm)22.3mm
Field of view with Link-4K (28.67mm sensor) (mm x mm)31.2mm
Field of view with Link-8K (40.96mm sensor) (mm x mm)44.5mm
Field of view with 35mm Format (36.0x24.0 sensor) (mm x mm)39.1x26.1
Compatible telecentric led lightingLS-CLM-0070

Sensor and imaging

Max sensor size (dia. mm)44(35mm)

Interfaces and I/O

Length of I/O (mm)384±3

Mechanical

MountF-Mount/Other
Length (mm)199.6
Weight (kg)0.9
