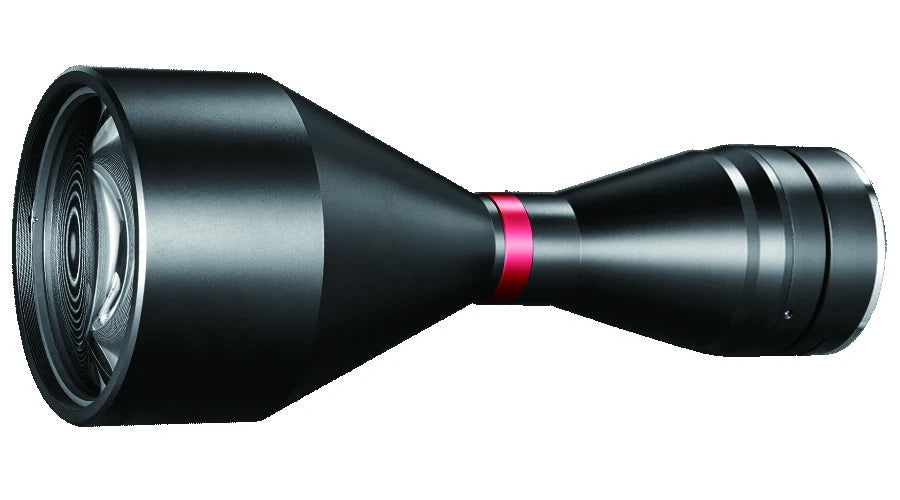

Bi-telecentric lens for 35mm Full cameras, 0.486x, WD 208 mm, F-mount (LS-TCL-2734)

Model LS-TCL-2734

Magnification0.489x
MountF-mount
SensorFull frame
Working distance208±2
Field of view90

$2,449.00

Ships in 2-3 weeks

3.57 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bi-telecentric lens series for sensors up to 35 mm full frame (44 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2734
FOV with 20.48mm with Link-2K (mm x mm)	42.1mm
FOV with 28.67mm with Link-4K (mm x mm)	58.9mm
FOV with 40.96mm with Link-8K (mm x mm)	84.2mm

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
Object field of view (dia. mm)	90
Working distance (mm)	208±2
Best Aperture (F/#)	11.4
MTF30 (lp/mm)	>80
Depth of field (mm)	±2
Magnification (x)	0.489
Field of view with Link-2K (20.48mm sensor) (mm x mm)	41.9mm
Field of view with Link-4K (28.67mm sensor) (mm x mm)	58.6mm
Field of view with Link-8K (40.96mm sensor) (mm x mm)	83.8mm
Field of view with 35mm Format (36.0x24.0 sensor) (mm x mm)	73.6x49.1
Compatible telecentric led lighting	LS-CLM-0079

Sensor and imaging

Max sensor size (dia. mm)	44(35mm)

Interfaces and I/O

Length of I/O (mm)	545.5

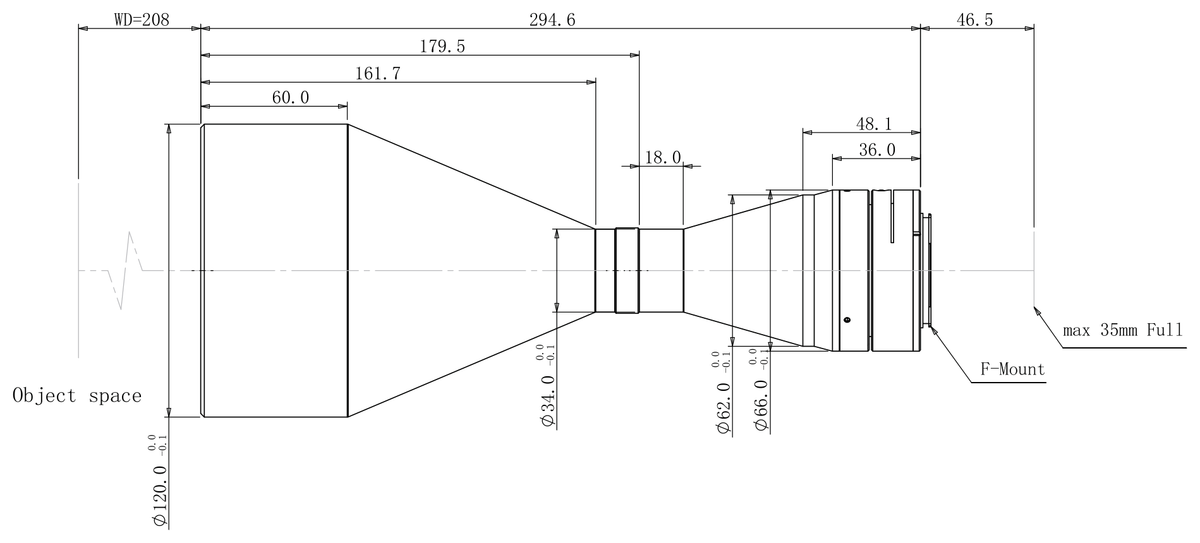

Mechanical

Mount	F-Mount/Other
Length (mm)	291
Weight (kg)	2.48

Downloads

Datasheet (PDF)LS-TCL-2734 · 4.0 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S85 series lens comes with an imaging quality test report
Optimized for 4/3"~35mm F-Mount cameras
Perfectly suitable for 4K and 8K line scan cameras
FOV ranges from 26mm to 300mm
Very high resolution, low distortion and homogeneous image quality
Yield constant magnification over defined depth of field
Customized mounts available.

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Bi-telecentric lens for 35mm Full cameras (LS-TCL-S85) series

See all 23 models

Model	Size / key data	Price	Availability	Link
LS-TCL-2725	1.043x, WD 118 mm, F-mount	$1,829.00	Ships in 2-3 weeks	View
LS-TCL-2723	1.208x, WD 111 mm	from $1,849.00	Ships in 2-3 weeks	View
LS-TCL-2726	0.911x, WD 128 mm	from $1,949.00	Ships in 2-3 weeks	View
LS-TCL-2727	0.92x, WD 138 mm, F or Other-mount	$1,949.00	Ships in 2-3 weeks	View
LS-TCL-2722	1.503x, WD 72 mm	from $2,039.00	Ships in 2-3 weeks	View
LS-TCL-2724	1.035x, WD 119 mm	from $2,049.00	Ships in 2-3 weeks	View
LS-TCL-2728	0.781x, WD 138 mm	from $2,109.00	Ships in 2-3 weeks	View
LS-TCL-2733	0.547x, WD 230 mm, F-mount	$2,149.00	Ships in 2-3 weeks	View
LS-TCL-2729	0.686x, WD 187 mm	from $2,289.00	Ships in 2-3 weeks	View
LS-TCL-2730	0.682x, WD 159 mm	from $2,299.00	Ships in 2-3 weeks	View
LS-TCL-2736	0.439x, WD 238 mm, F-mount	$2,449.00	Ships in 2-3 weeks	View
LS-TCL-2731	0.607x, WD 178 mm	from $2,479.00	Ships in 2-3 weeks	View
LS-TCL-2732	0.546x, WD 229 mm	from $2,679.00	Ships in 2-3 weeks	View
LS-TCL-2735	0.468x, WD 254 mm	from $3,029.00	Ships in 2-3 weeks	View
LS-TCL-2737	0.392x, WD 251 mm	from $3,459.00	Ships in 2-3 weeks	View
LS-TCL-2738	0.367x, WD 280 mm, F or Other-mount	$3,629.00	Ships in 2-3 weeks	View
LS-TCL-2739	0.321x, WD 288 mm	from $4,089.00	Ships in 2-3 weeks	View
LS-TCL-2740	0.292x, WD 301 mm	from $4,379.00	Ships in 2-3 weeks	View
LS-TCL-2741	0.257x, WD 318 mm	from $4,839.00	Ships in 2-3 weeks	View
LS-TCL-2742	0.23x, WD 330 mm, F or Other-mount	$5,379.00	Ships in 2-3 weeks	View
LS-TCL-2743	0.182x, WD 410 mm	from $6,679.00	Ships in 2-3 weeks	View
LS-TCL-2744	0.147x, WD 465 mm, F or Other-mount	$8,699.00 Quote	Ships in 2-3 weeks	View
