Telecentric lenses

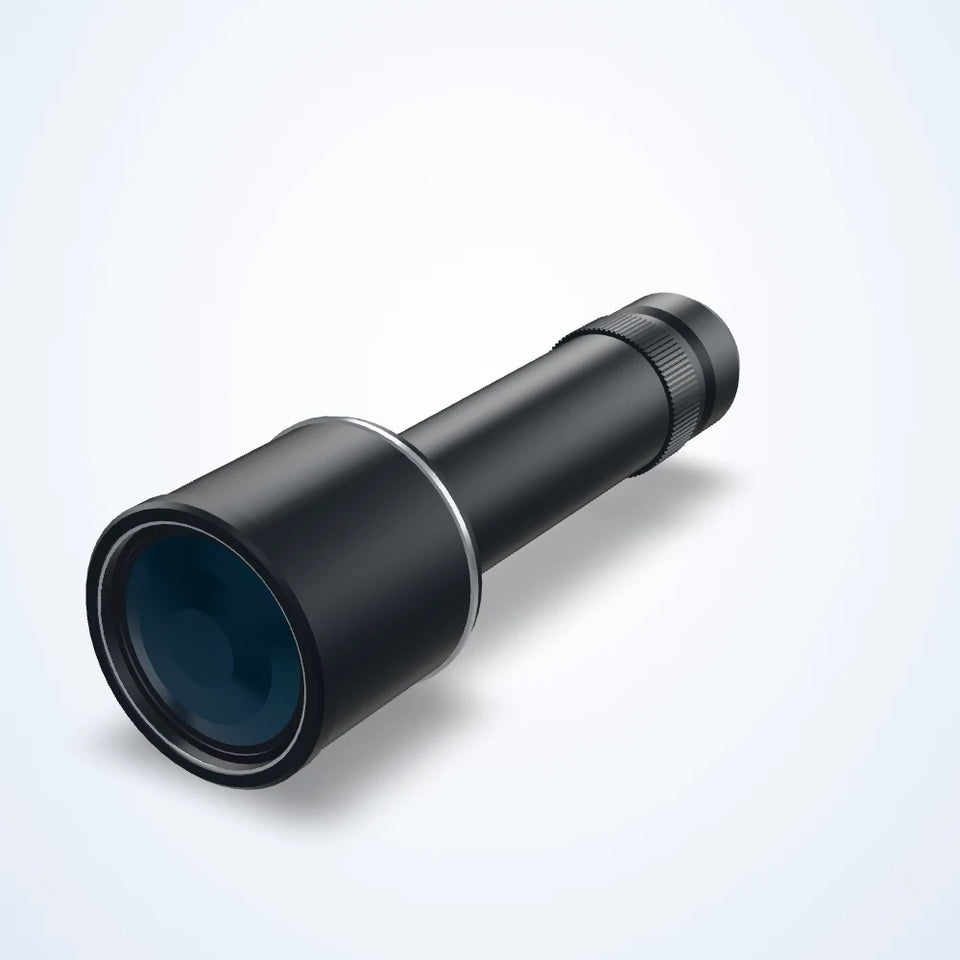

Telecentric lenses, 2/3" (LS-TCL-S54)
- 76 models
- from $290.00
- Series LS-TCL-S54
The Telecentric lenses, 2/3" (LS-TCL-S54) is a range of 76 telecentric lenses from LumaSpec Vision, from $290.00. It comes in 49 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.038x, WD 465 mm, 2/3", 0.044x, WD 338 mm, 2/3", 0.048x, WD 410 mm, 2/3", 0.053x, WD 372 mm, 2/3", 0.06x, WD 330 mm, 2/3", 0.067x, WD 318 mm, 2/3", 0.076x, WD 300 mm, 2/3", 0.084x, WD 288 mm, 2/3", 0.095x, WD 273 mm, 2/3", 0.104x, WD 263 mm, 2/3", 0.106x, WD 258 mm, 2/3", 0.127x, WD 208 mm, 2/3", 0.142x, WD 228 mm, 2/3", 0.158x, WD 178 mm, 2/3", 0.166x, WD 173 mm, 2/3", 0.178x, WD 158 mm, 2/3" and 33 more
- Image circle
- 8-11 mm
- Type
- Bi-telecentric, Object-side telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
- Sensor format
- 2/3"
- Working distance
- Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
- Coaxial light
- Built-in coaxial light, No coaxial port
- Mount
- C-mount
- Resolution
- 6-10 MP
Features
- Constant magnification over the depth of field: size readings do not change with distance
- Low distortion for measurement
All 76 models in the Telecentric lenses, 2/3" (LS-TCL-S54)
| Link | |||||
|---|---|---|---|---|---|
| LS-TCL-1277 | 1.5x, 2/3" | 11.0(2/3") | 1.5x | $290.00 | View |
| LS-TCL-1263 | 0.8x, 2/3" | 11.0(2/3") | 0.8x | $310.00 | View |
| LS-TCL-1265 | 0.8x, 2/3" | 2/3" | 0.8x | $310.00 | View |
| LS-TCL-1266 | 1x, 2/3" | 11.0(2/3") | 1.0x | $310.00 | View |
| LS-TCL-1267 | 1x, 2/3" | 11.0(2/3") | 1.0x | $310.00 | View |
| LS-TCL-1270 | 1x, 2/3" | 2/3" | 1.0x | $310.00 | View |
| LS-TCL-1285 | 2x, 2/3" | 2/3" | 2.0x | $310.00 | View |
| LS-TCL-1272 | 1x, WD 330 mm, 2/3" | 2/3" | 1.0x | $319.00 | View |
| LS-TCL-1279 | 1.5x, 2/3" | 2/3" | 1.5x | $328.00 | View |
| LS-TCL-1288 | 3x, 2/3" | 2/3" | 3.0x | $328.00 | View |
| LS-TCL-1292 | 4x, 2/3" | 2/3" | 4.0x | $328.00 | View |
| LS-TCL-1297 | 6x, 2/3" | 2/3" | 6.0x | $328.00 | View |
| LS-TCL-1264 | 0.8x, 2/3" | 11.0(2/3") | 0.8x | $330.00 | View |
| LS-TCL-1268 | 1x, 2/3" | 11.0(2/3") | 1.0x | $330.00 | View |
| LS-TCL-1269 | 1x, 2/3" | 11.0(2/3") | 1.0x | $330.00 | View |
| LS-TCL-1254 | 0.5x, 2/3" | 11.0(2/3") | 0.5x | $345.00 | View |
| LS-TCL-1255 | 0.5x, 2/3" | 11.0(2/3") | 0.5x | $345.00 | View |
| LS-TCL-1274 | 1x, WD 410 mm, 2/3" | 2/3" | 1.0x | $345.00 | View |
| LS-TCL-1271 | 1x, WD 330 mm, 2/3" | 2/3" | 1.0x | $350.00 | View |
| LS-TCL-1278 | 1.5x, 2/3" | 11.0(2/3") | 1.5x | $350.00 | View |
| LS-TCL-1281 | 2x, 2/3" | 11.0(2/3") | 2.0x | $350.00 | View |
| LS-TCL-1282 | 2x, 2/3" | 11.0(2/3") | 2.0x | $350.00 | View |
| LS-TCL-1283 | 2x, 2/3" | 11.0(2/3") | 2.0x | $350.00 | View |
| LS-TCL-1284 | 2x, 2/3" | 11.0(2/3") | 2.0x | $350.00 | View |
| LS-TCL-1286 | 3x, 2/3" | 11.0(2/3") | 3.0x | $350.00 | View |
| LS-TCL-1287 | 3x, 2/3" | 11.0(2/3") | 3.0x | $350.00 | View |
| LS-TCL-1290 | 4x, 2/3" | 11.0(2/3") | 4.0x | $350.00 | View |
| LS-TCL-1291 | 4x, 2/3" | 11.0(2/3") | 4.0x | $350.00 | View |
| LS-TCL-1295 | 6x, 2/3" | 11.0(2/3") | 6.0x | $350.00 | View |
| LS-TCL-1296 | 6x, 2/3" | 11.0(2/3") | 6.0x | $350.00 | View |
| LS-TCL-1256 | 0.5x, 2/3" | 11.0(2/3") | 0.5x | $355.00 | View |
| LS-TCL-1257 | 0.5x, 2/3" | 11.0(2/3") | 0.5x | $355.00 | View |
| LS-TCL-1276 | 1x, WD 510 mm, 2/3" | 2/3" | 1.0x | $355.00 | View |
| LS-TCL-1273 | 1x, WD 410 mm, 2/3" | 2/3" | 1.0x | $365.00 | View |
| LS-TCL-1275 | 1x, WD 510 mm, 2/3" | 2/3" | 1.0x | $365.00 | View |
| LS-TCL-1253 | 0.438x, WD 73 mm, 2/3" | 2/3" | 0.438x | $660.00 | View |
| LS-TCL-1249 | 0.4x, WD 85 mm, 2/3" | 11.0(2/3”) | 0.4x | $700.00 | View |
| LS-TCL-1258 | 0.5x, 2/3", C-mount | 11.0(2/3") | 0.5x | $700.00 | View |
| LS-TCL-1247 | 0.317x, WD 110 mm, 2/3" | 2/3" | 0.317x | $705.00 | View |
| LS-TCL-1239 | 0.271x, WD 118 mm, 2/3" | 2/3" | 0.271x | $715.00 | View |
| LS-TCL-1251 | 0.4x, WD 85 mm, 2/3" | 2/3" | 0.4X | $715.00 | View |
| LS-TCL-1259 | 0.5x, WD 65 mm, 2/3" | 2/3" | 0.5X | $725.00 | View |
| LS-TCL-1244 | 0.3x, WD 180 mm, 2/3", C-mount | 11.0(2/3") | 0.3x | $730.00 | View |
| LS-TCL-1234 | 0.204x, WD 138 mm, 2/3" | 2/3" | 0.204x | $740.00 | View |
| LS-TCL-1236 | 0.22x, WD 200 mm, 2/3", C-mount | 11.0(2/3") | 0.22x | $740.00 | View |
| LS-TCL-1237 | 0.238x, WD 128 mm, 2/3" | 2/3" | 0.238x | $740.00 | View |
| LS-TCL-1238 | 0.238x, WD 138 mm, 2/3" | 2/3" | 0.238x | $740.00 | View |
| LS-TCL-1242 | 0.3x, 2/3", C-mount | 11.0(2/3") | 0.3x | $740.00 | View |
| LS-TCL-1246 | 0.3x, WD 220 mm, 2/3" | 11.0(2/3") | 0.3x | $740.00 | View |
| LS-TCL-1248 | 0.4x, 2/3", C-mount | 11.0(2/3") | 0.4x | $740.00 | View |
| LS-TCL-1260 | 0.5x, WD 65 mm, 2/3" | 2/3" | 0.5X | $780.00 | View |
| LS-TCL-1245 | 0.3x, WD 180 mm, 2/3", C-mount | 11.0(2/3") | 0.3x | $800.00 | View |
| LS-TCL-1232 | 0.166x, WD 173 mm, 2/3" | 2/3" | 0.166X | $825.00 | View |
| LS-TCL-1241 | 0.3x, 2/3" | 11.0(2/3") | 0.3x | $830.00 | View |
| LS-TCL-1233 | 0.178x, WD 158 mm, 2/3" | 2/3" | 0.178x | $880.00 | View |
| LS-TCL-1231 | 0.158x, WD 178 mm, 2/3" | 2/3" | 0.158x | $1,045.00 | View |
| LS-TCL-1229 | 0.127x, WD 208 mm, 2/3" | 2/3" | 0.127x | $1,210.00 | View |
| LS-TCL-1230 | 0.142x, WD 228 mm, 2/3" | 2/3" | 0.142x | $1,210.00 | View |
| LS-TCL-1228 | 0.106x, WD 258 mm, 2/3" | 2/3" | 0.106x | $1,265.00 | View |
| LS-TCL-1227 | 0.104x, WD 263 mm, 2/3" | 2/3" | 0.104x | $1,600.00 | View |
| LS-TCL-1226 | 0.095x, WD 273 mm, 2/3" | 2/3" | 0.095x | $1,705.00 | View |
| LS-TCL-1224 | 0.076x, WD 300 mm, 2/3" | 2/3" | 0.076x | $2,200.00 | View |
| LS-TCL-1252 | 0.4x, WD 100 mm, 2/3", C-mount | 2/3" | 0.4x | $2,400.00 | View |
| LS-TCL-1261 | 0.5x, WD 100 mm, 2/3", C-mount | 2/3" | 0.5x | $2,400.00 | View |
| LS-TCL-1262 | 0.5x, WD 110 mm, 2/3", C-mount | 2/3" | 0.5x | $2,400.00 | View |
| LS-TCL-1280 | 1.75x, WD 100 mm, 2/3", C-mount | 2/3" | 1.75x | $2,400.00 | View |
| LS-TCL-1289 | 4x, 2/3", C-mount | 2/3" | 4.0x | $2,400.00 | View |
| LS-TCL-1293 | 4x, WD 62.8 mm, 2/3", C-mount | 2/3" | 4.0x | $2,500.00 | View |
| LS-TCL-1294 | 4x, WD 64.7 mm, 2/3", C-mount | 2/3" | 4.0x | $2,500.00 | View |
| LS-TCL-1225 | 0.084x, WD 288 mm, 2/3" | 2/3" | 0.084x | $2,785.00 | View |
| LS-TCL-1223 | 0.067x, WD 318 mm, 2/3" | 2/3" | 0.067x | $3,000.00 | View |
| LS-TCL-1222 | 0.06x, WD 330 mm, 2/3" | 2/3" | 0.06x | $3,520.00 | View |
| LS-TCL-1221 | 0.053x, WD 372 mm, 2/3" | 2/3" | 0.053x | $4,730.00 | View |
| LS-TCL-1220 | 0.048x, WD 410 mm, 2/3" | 2/3" | 0.048x | $5,060.00 | View |
| LS-TCL-1219 | 0.044x, WD 338 mm, 2/3" | 2/3" | 0.044x | $6,380.00 | View |
| LS-TCL-1218 | 0.038x, WD 465 mm, 2/3" | 2/3" | 0.038x | $8,500.00quote | View |
