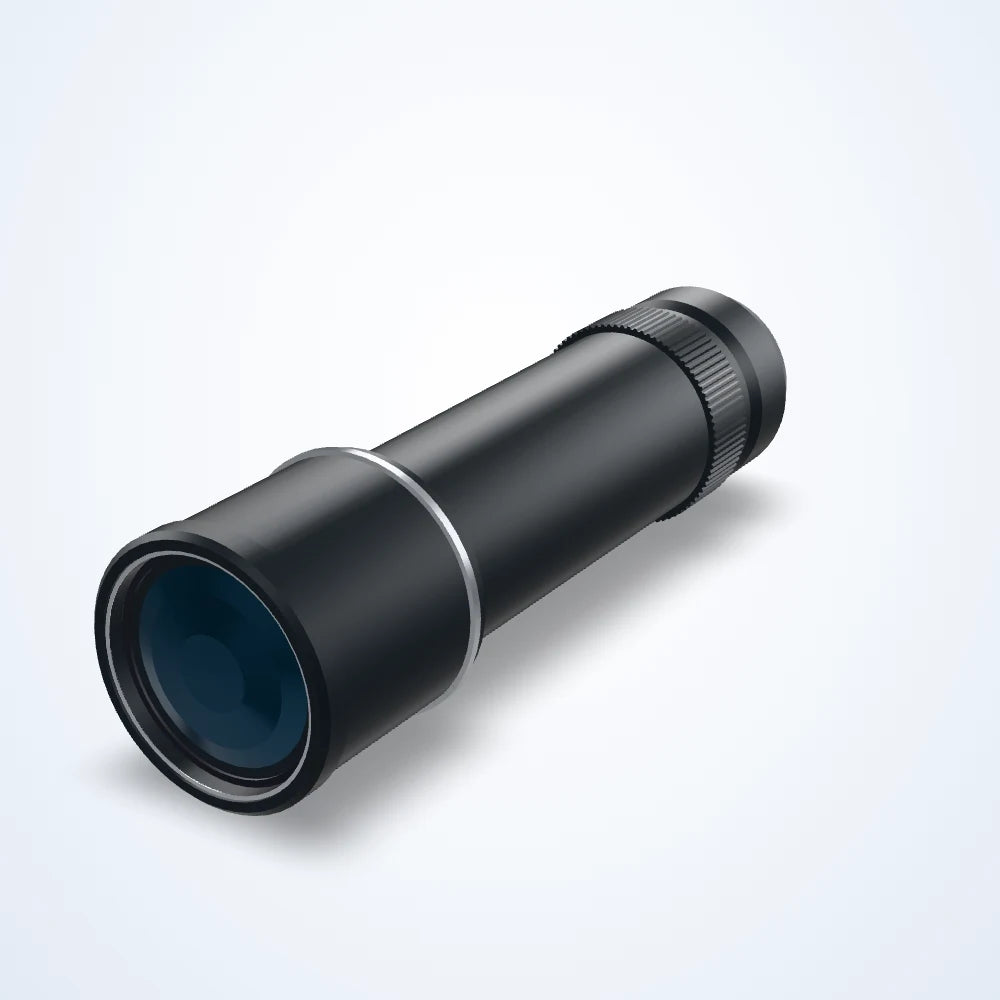

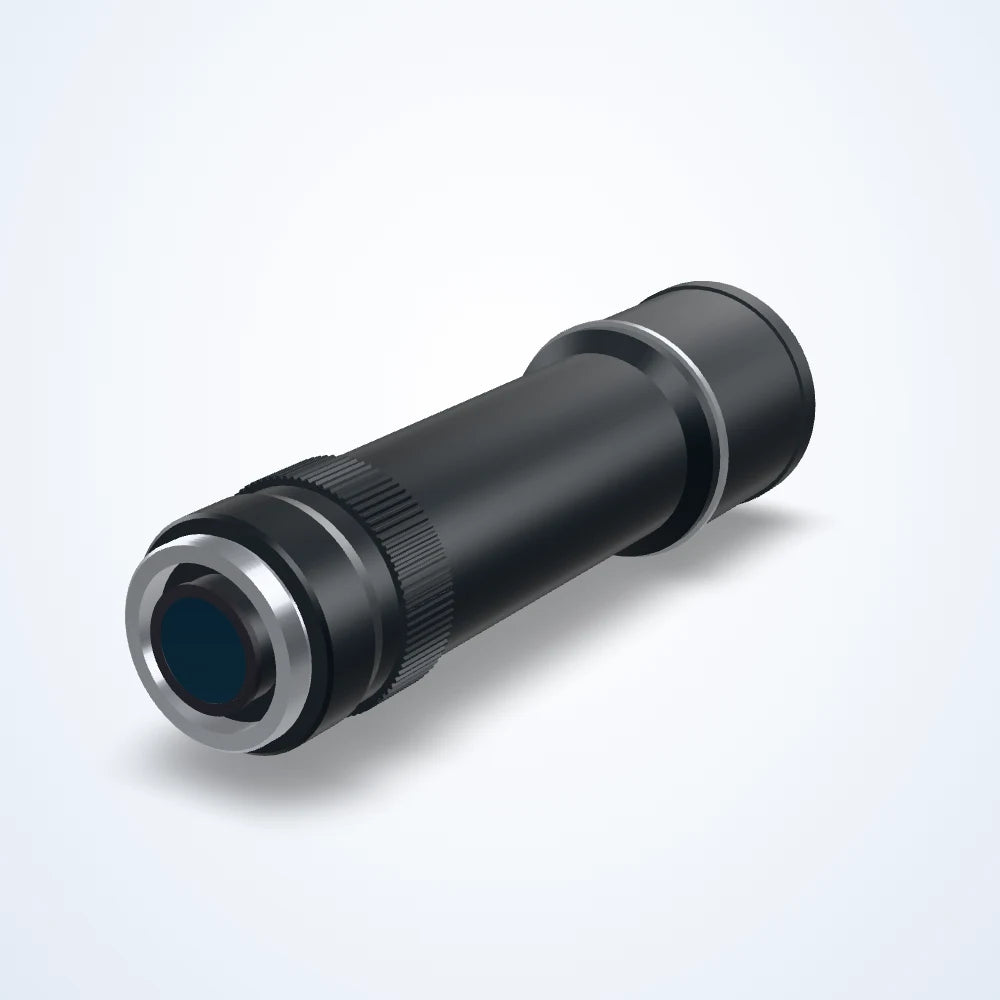

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.076x bi-telecentric lens, WD 300 mm, 2/3" (LS-TCL-1224)
Model LS-TCL-1224
- Magnification0.076x
- MountC-mount
- Sensor2/3"
- Working distance300±5 mm
- ApertureF4.9
- Field of viewdia. 150 mm
$2,200.00
Ships in 3-4 weeks
6.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.076x bi-telecentric lens for non-contact measurement and gauging. Magnification 0.076x; working distance 300 mm; covers sensors up to 2/3".
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1224 |
|---|
Optics
| Working distance | 300±5 mm |
|---|---|
| Field of view | dia. 150 mm |
| Magnification | 0.076x |
| Aperture | F4.9 |
| MTF | >185lp/mm |
| Depth of field | ±76.1 mm@F11 |
| Distortion | <0.1% |
| Telecentricity | <0.1° |
| Object-to-image distance | 624.5±5 mm |
Sensor and imaging
| Sensor format | 2/3" |
|---|
Environment and compliance
| Operating temperature | -10 - 50°C(Operating), -20 - 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Length | 324.0 mm |
| Weight | 5.7 Kg |
