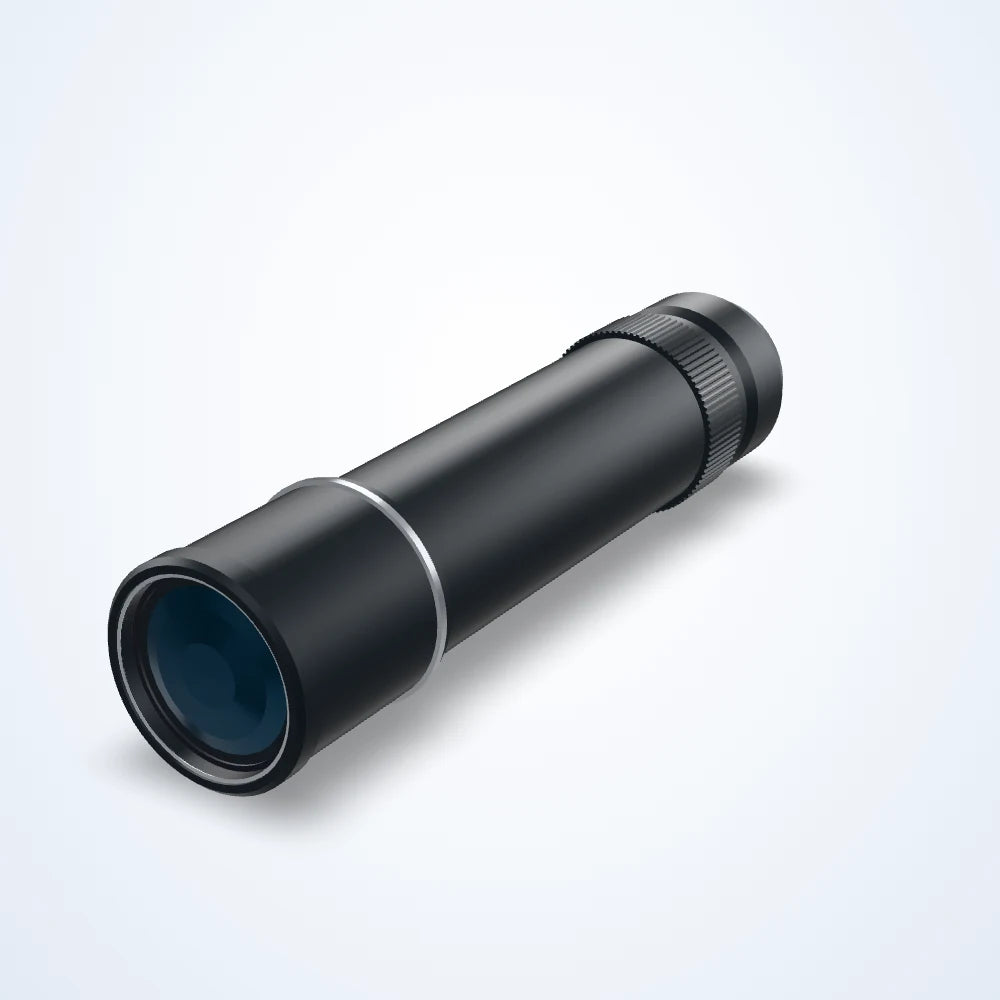

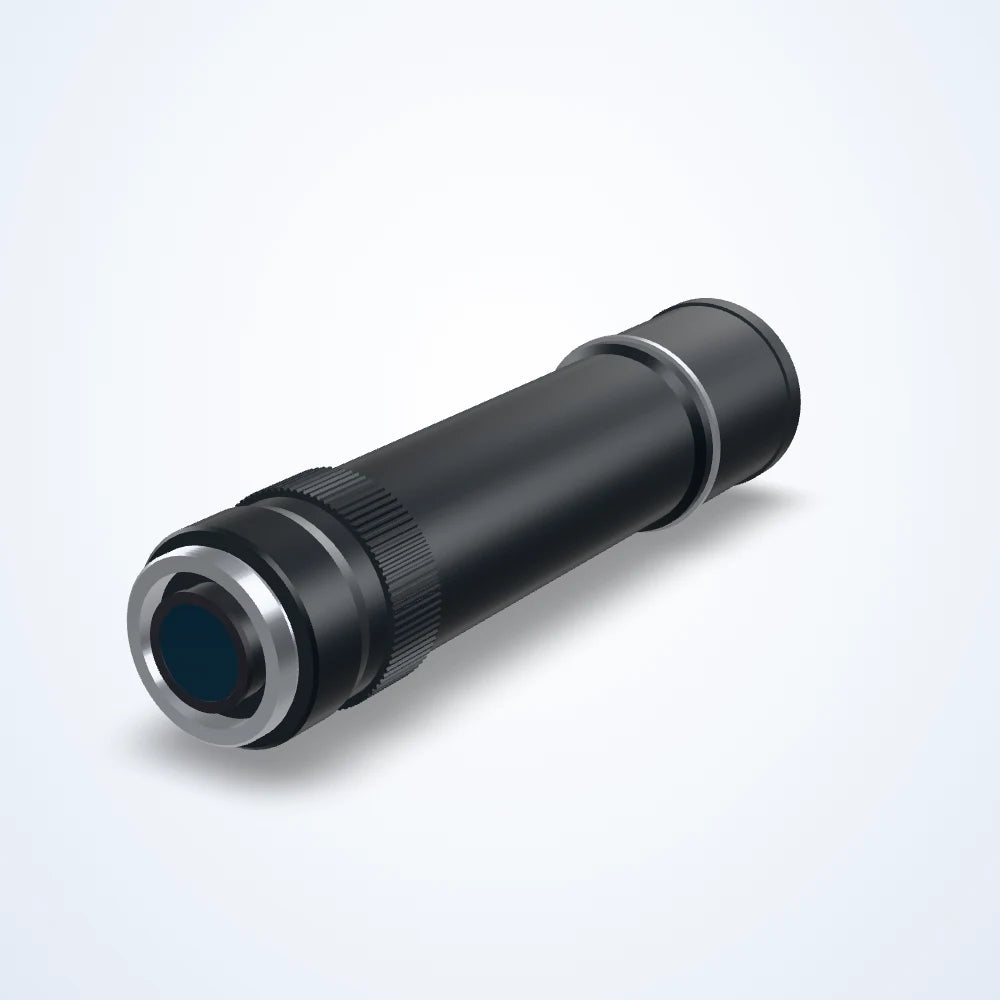

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
4x liquid-focus telecentric lens, WD 64.7 mm, 2/3", C-mount (LS-TCL-1294)
Model LS-TCL-1294
- Magnification4.0x
- MountC-mount
- Sensor2/3"
- Working distance64.7 mm
- Aperture17
$2,500.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4x liquid-focus telecentric lens for non-contact measurement and gauging. Magnification 4x; working distance 64.7 mm; covers sensors up to 2/3"; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1294 |
|---|
Optics
| Coaxial illumination port | Yes |
|---|---|
| Magnification | 4.0x |
| Working distance | 64.7 mm |
| Depth of field | 2 mm |
| Aperture | 17 |
| MTF | >0.3@50 |
Sensor and imaging
| Sensor format | 2/3" |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Shipping weight | 0.50 kg |
