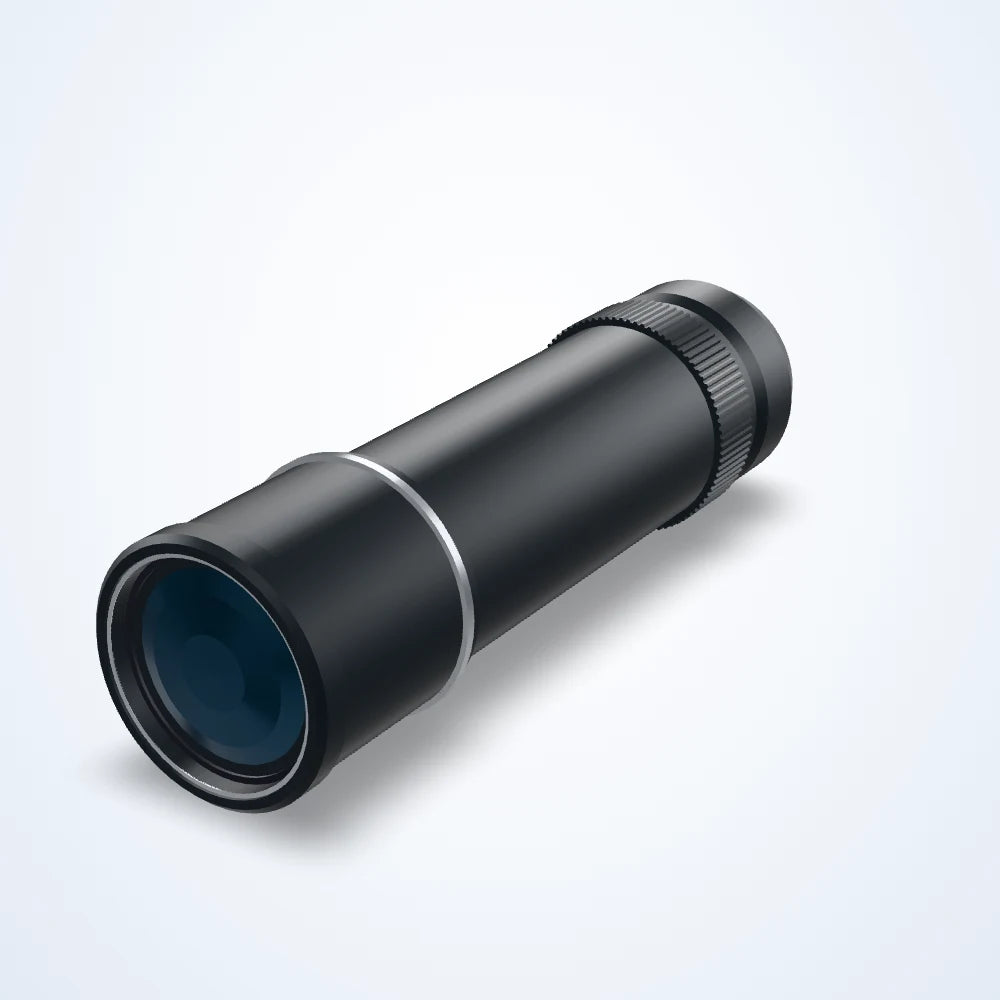

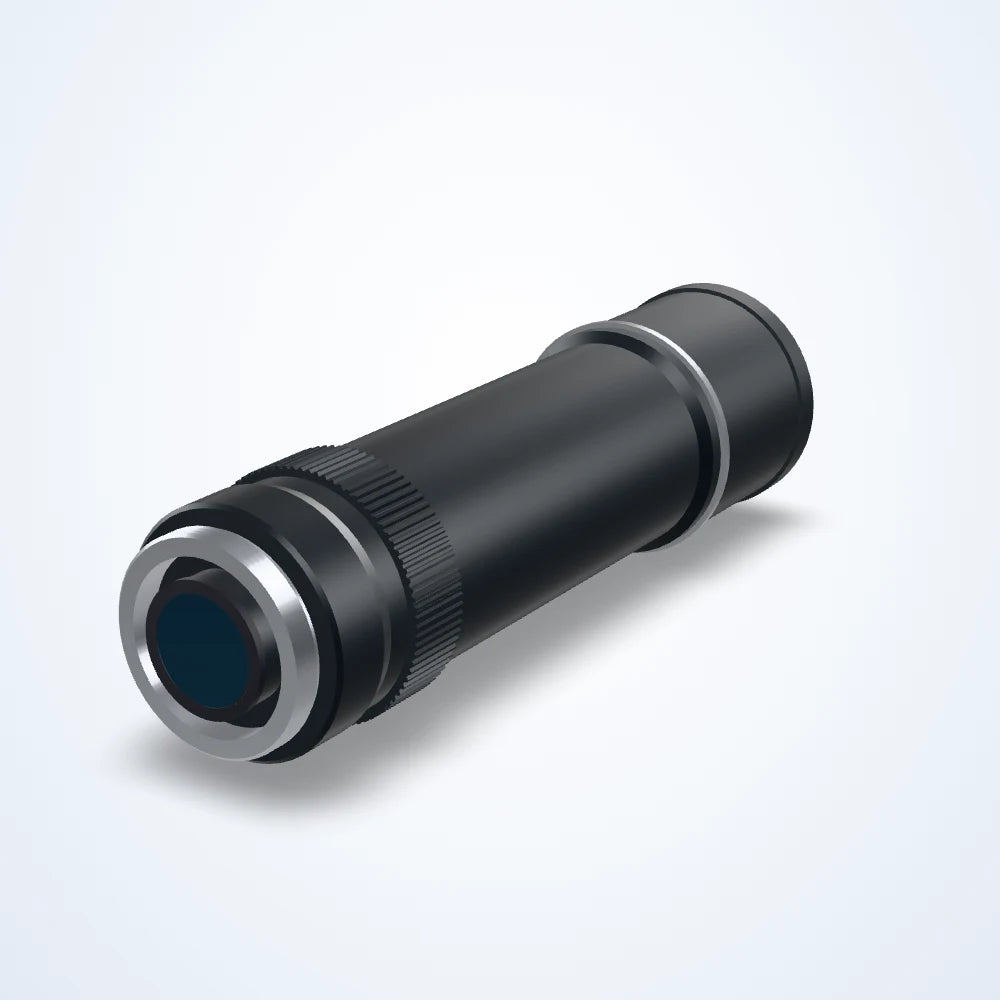

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.166x bi-telecentric lens, WD 173 mm, 2/3" (LS-TCL-1232)
Model LS-TCL-1232
- Magnification0.166X
- MountC-mount
- Sensor2/3"
- Working distance173±3 mm
- Aperture3.3
- Field of view66 Φmm
$825.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.166x bi-telecentric lens for non-contact measurement and gauging. Magnification 0.166x; working distance 173 mm; covers sensors up to 2/3".
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1232 |
|---|
Optics
| Variable Iris | Yes |
|---|---|
| Coaxial illumination port | No |
| Magnification | 0.166X |
| Working distance | 173±3 mm |
| Aperture | 3.3 |
| MTF | >260 |
| Field of view | 66 Φmm |
| Depth of field | ±4.8@F3.3 |
| Distortion | <0.1 % max |
| Telecentricity | <0.1 ° max |
Sensor and imaging
| Sensor format | 2/3" |
|---|
Mechanical
| Length | 146.5 mm |
|---|---|
| Mount | C |
| Shipping weight | 1.00 kg |
Other models in the Bi-telecentric lenses, 2/3" (LS-TCL-S54) series
See all 76 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-1251 | 0.4x, WD 85 mm, 2/3" | $715.00 | Ships in 3-4 weeks | View |
| LS-TCL-1259 | 0.5x, WD 65 mm, 2/3" | $725.00 | Ships in 3-4 weeks | View |
| LS-TCL-1244 | 0.3x, WD 180 mm, 2/3", C-mount | $730.00 | Ships in 3-4 weeks | View |
| LS-TCL-1234 | 0.204x, WD 138 mm, 2/3" | $740.00 | Ships in 3-4 weeks | View |
| LS-TCL-1236 | 0.22x, WD 200 mm, 2/3", C-mount | $740.00 | Ships in 3-4 weeks | View |
| LS-TCL-1237 | 0.238x, WD 128 mm, 2/3" | $740.00 | Ships in 3-4 weeks | View |
| LS-TCL-1238 | 0.238x, WD 138 mm, 2/3" | $740.00 | Ships in 3-4 weeks | View |
| LS-TCL-1242 | 0.3x, 2/3", C-mount | $740.00 | Ships in 3-4 weeks | View |
| LS-TCL-1246 | 0.3x, WD 220 mm, 2/3" | $740.00 | Ships in 3-4 weeks | View |
| LS-TCL-1248 | 0.4x, 2/3", C-mount | $740.00 | Ships in 3-4 weeks | View |
| LS-TCL-1260 | 0.5x, WD 65 mm, 2/3" | $780.00 | Ships in 3-4 weeks | View |
| LS-TCL-1245 | 0.3x, WD 180 mm, 2/3", C-mount | $800.00 | Ships in 3-4 weeks | View |
| LS-TCL-1241 | 0.3x, 2/3" | $830.00 | Ships in 3-4 weeks | View |
| LS-TCL-1233 | 0.178x, WD 158 mm, 2/3" | $880.00 | Ships in 3-4 weeks | View |
| LS-TCL-1231 | 0.158x, WD 178 mm, 2/3" | $1,045.00 | Ships in 3-4 weeks | View |
| LS-TCL-1229 | 0.127x, WD 208 mm, 2/3" | $1,210.00 | Ships in 3-4 weeks | View |
| LS-TCL-1230 | 0.142x, WD 228 mm, 2/3" | $1,210.00 | Ships in 3-4 weeks | View |
| LS-TCL-1228 | 0.106x, WD 258 mm, 2/3" | $1,265.00 | Ships in 3-4 weeks | View |
| LS-TCL-1227 | 0.104x, WD 263 mm, 2/3" | $1,600.00 | Ships in 3-4 weeks | View |
| LS-TCL-1226 | 0.095x, WD 273 mm, 2/3" | $1,705.00 | Ships in 3-4 weeks | View |
| LS-TCL-1224 | 0.076x, WD 300 mm, 2/3" | $2,200.00 | Ships in 3-4 weeks | View |
| LS-TCL-1252 | 0.4x, WD 100 mm, 2/3", C-mount | $2,400.00 | Ships in 3-4 weeks | View |
| LS-TCL-1261 | 0.5x, WD 100 mm, 2/3", C-mount | $2,400.00 | Ships in 3-4 weeks | View |
| LS-TCL-1262 | 0.5x, WD 110 mm, 2/3", C-mount | $2,400.00 | Ships in 3-4 weeks | View |
