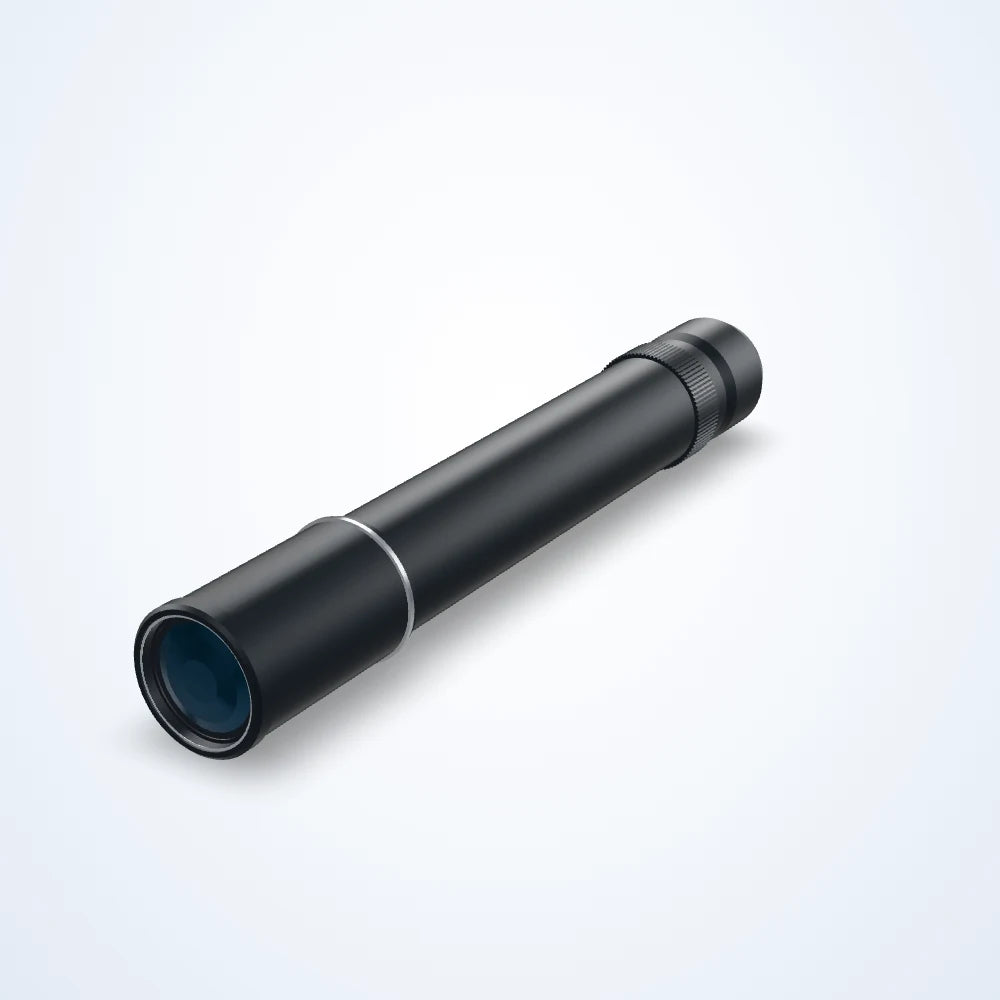

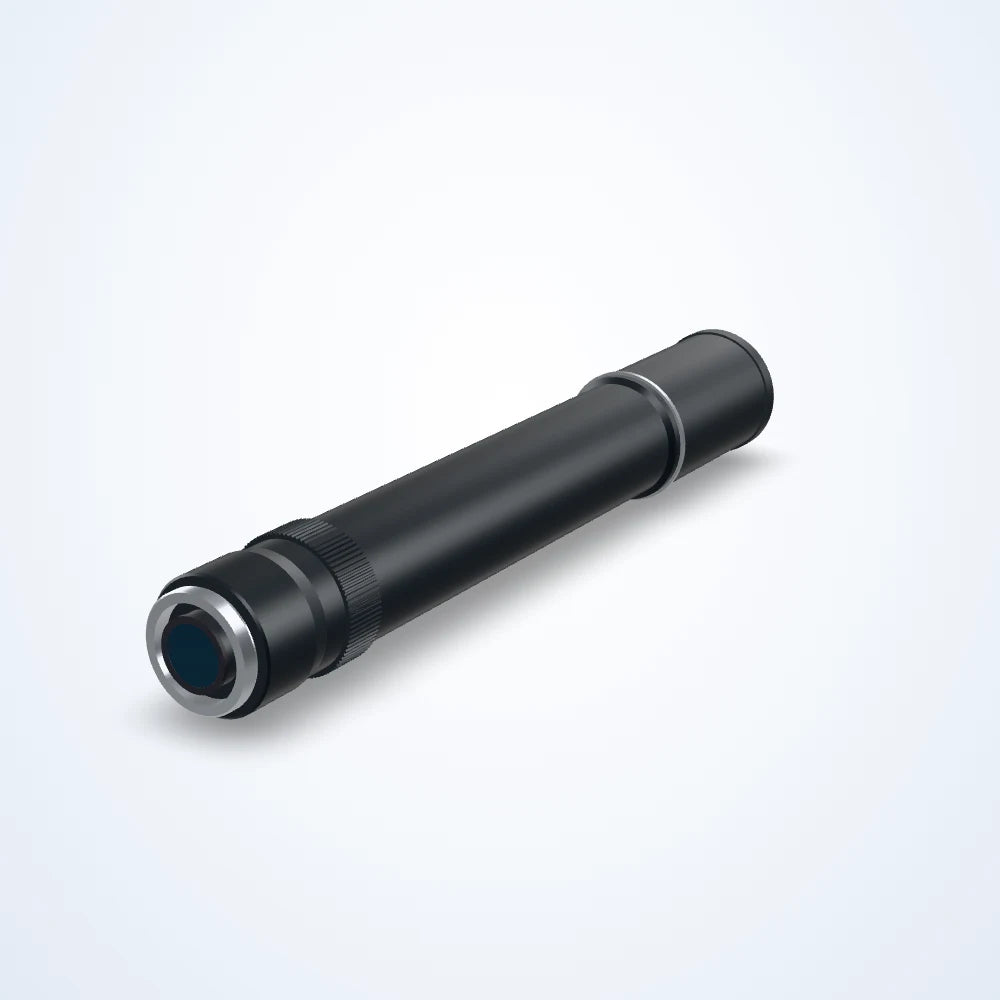

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
1x telecentric lens, WD 410 mm, 2/3", Coaxial (LS-TCL-1273)
Model LS-TCL-1273
- Magnification1.0x
- MountC-mount
- Sensor2/3"
- Working distance410±3 mm
- ApertureF17.9
- Resolution12.3 μm
$365.00
Ships in 3-4 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1x telecentric lens for non-contact measurement and gauging. Magnification 1x; working distance 410 mm; covers sensors up to 2/3".
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1273 |
|---|
Optics
| Coaxial illumination port | No / Yes |
|---|---|
| Magnification | 1.0x |
| Working distance | 410±3 mm |
| Field of view | 1/3” (4.8x3.6) 4.8x3.6 1/2” (6.4x4.8) 6.4x4.8 |
| Aperture | F17.9 |
| MTF | >37lp/mm |
| Distortion | <0.1% |
| Telecentricity | <0.1 |
| Object-side NA | 0.0273 |
| Depth of field | 1.4 mm |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution | 12.3 μm |
Environment and compliance
| Operating temperature | -10 - 50°C(Operating), -20 - 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Length | 182.2 mm |
| Shipping weight | 3.00 kg |
