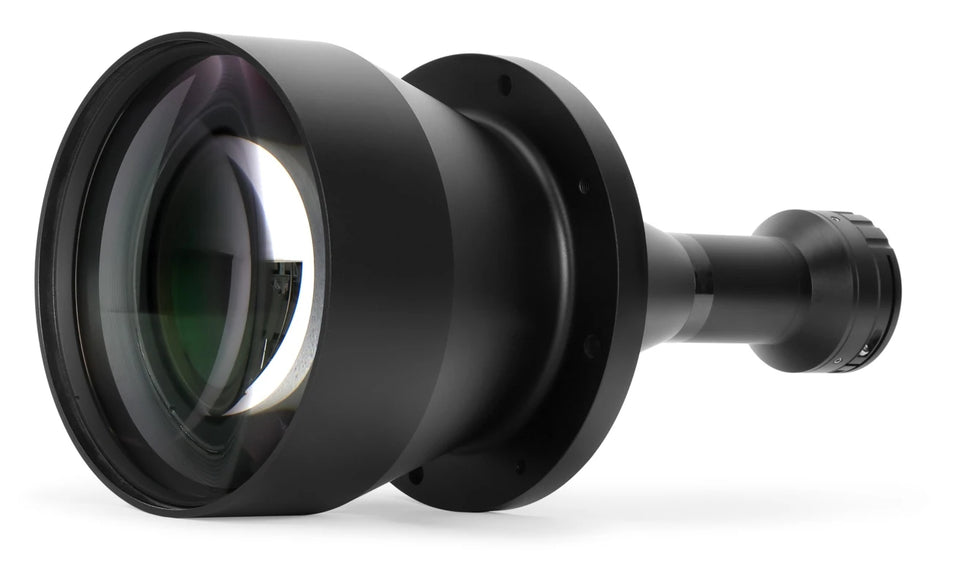

Bi-telecentric lens for 1.1" sensor (LS-TCL-S94)
- 25 models
- from $1,129.00
- Series LS-TCL-S94
The Bi-telecentric lens for 1.1" sensor (LS-TCL-S94) is a range of 25 telecentric lenses from LumaSpec Vision, from $1,129.00. It comes in 23 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.078x, WD 410 mm, 1.1", C-mount, 0.11x, WD 320 mm, 1.1", C-mount, 0.13x, WD 300 mm, 1.1", C-mount, 0.153x, WD 250 mm, 1.1", C-mount, 0.172x, WD 230 mm, 1.1", C-mount, 0.2x, WD 250 mm, 1.1", C-mount, 0.22x, WD 200 mm, 1.1", C-mount, 0.25x, WD 230 mm, 1.1", C-mount, 0.275x, WD 200 mm, 1.1", C-mount, 0.3x, WD 200 mm, 1.1", C-mount, 0.345x, WD 178 mm, 1.1", C-mount, 0.4x, WD 178 mm, 1.1", C-mount, 0.5x, WD 220 mm, 1.1", C-mount, 0.5x, WD 65 mm, 1.1", 0.52x, WD 110 mm, 1.1", C-mount, 0.6x, WD 190 mm, 1.1" and 7 more
- Mount
- C-mount
- Image circle
- 16-22 mm
- Type
- Bi-telecentric
- Coaxial light
- Built-in coaxial light, No coaxial port
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1.1" - 1.2"
Features
- Maximum support for a 1.1" dia. 19.5 mm target face camera
- Excellent bilateral telecentric optical path, ultra low distortion design
- Large depth of field design for high and low difference imaging products
- High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
- Lightweight fastening structure designed to perform stably at high speed
- 25 million pixels
- Coaxial version available (C suffix, LS-TCL-2976)
- WD=178mm, Magnification 0.4X, DOF 3.5mm, Distortion TV<0.02%.
Typical uses
- Imaging products with high and low differences (large depth of field)
All 25 models in the Bi-telecentric lens for 1.1" sensor (LS-TCL-S94)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2975 | 1x, WD 110 mm, 1.1", C-mount | 1.1" | 1 | 110 | $1,129.00 | View |
| LS-TCL-2976 | 1x, WD 110 mm, 1.1", C-mount | 1.1" | 1 | 110 | $1,129.00 | View |
| LS-TCL-2988 | 1x, WD 220 mm, 1.1", C-mount | 1.1" | 1 | 220 | $1,129.00 | View |
| LS-TCL-2978 | 0.8x, WD 110 mm, 1.1", C-mount | 1.1" | 0.8 | 110 | $1,209.00 | View |
| LS-TCL-2991 | 0.8x, WD 220 mm, 1.1", C-mount | 1.1" | 0.8 | 220 | $1,209.00 | View |
| LS-TCL-2977 | 0.7x, WD 110 mm, 1.1", C-mount | 1.1" | 0.7 | 110 | $1,269.00 | View |
| LS-TCL-2990 | 0.6x, WD 190 mm, 1.1", C-mount | 1.1" | 0.6 | 190 | $1,349.00 | View |
| LS-TCL-2981 | 0.52x, WD 110 mm, 1.1", C-mount | 1.1" | 0.52 | 110 | $1,429.00 | View |
| LS-TCL-2989 | 0.5x, WD 220 mm, 1.1", C-mount | 1.1" | 0.5 | 220 | $1,459.00 | View |
| LS-TCL-2979 | 1.5x, WD 110 mm, 1.1", C-mount | 1.1" | 1.5 | 110 | $1,469.00 | View |
| LS-TCL-2984 | 0.6x, WD 190 mm, 1.1" | 1.1" | 190 | $1,479.00 | View | |
| LS-TCL-2980 | 1.5x, WD 110 mm, 1.1", C-mount | 1.1"dia. 18.5mm | 110 | $1,549.00 | View | |
| LS-TCL-2982 | 0.4x, WD 178 mm, 1.1", C-mount | 1.1" | 0.4 | 178 | $1,619.00 | View |
| LS-TCL-2974 | 0.5x, WD 65 mm, 1.1" | 1.1" | 65 | $1,619.00 | View | |
| LS-TCL-2983 | 0.345x, WD 178 mm, 1.1", C-mount | 1.1" | 0.345 | 178 | $1,749.00 | View |
| LS-TCL-2985 | 0.3x, WD 200 mm, 1.1", C-mount | 1.1" | 0.3 | 200 | $1,889.00 | View |
| LS-TCL-2987 | 0.275x, WD 200 mm, 1.1", C-mount | 1.1" | 0.275 | 200 | $1,989.00 | View |
| LS-TCL-2992 | 0.25x, WD 230 mm, 1.1", C-mount | 1.1" | 0.25 | 230 | $2,109.00 | View |
| LS-TCL-2986 | 0.22x, WD 200 mm, 1.1", C-mount | 1.1" | 0.22 | 200 | $2,289.00 | View |
| LS-TCL-2994 | 0.2x, WD 250 mm, 1.1", C-mount | 1.1" | 0.2 | 250 | $2,439.00 | View |
| LS-TCL-2993 | 0.172x, WD 230 mm, 1.1", C-mount | 1.1" | 0.172 | 230 | $2,699.00 | View |
| LS-TCL-2995 | 0.153x, WD 250 mm, 1.1", C-mount | 1.1" | 0.153 | 250 | $2,939.00 | View |
| LS-TCL-2996 | 0.13x, WD 300 mm, 1.1", C-mount | 1.1" | 0.13 | 300 | $3,309.00 | View |
| LS-TCL-2997 | 0.11x, WD 320 mm, 1.1", C-mount | 1.1" | 0.11 | 320 | $3,759.00 | View |
| LS-TCL-2998 | 0.078x, WD 410 mm, 1.1", C-mount | 1.1" | 0.078 | 410 | $6,039.00 | View |
