Telecentric lenses

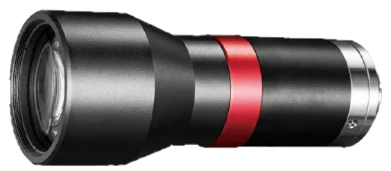

LS-TCL-S35 Series Bi-Telecentric lenses
- 9 models
- from $1,029.00
- Series LS-TCL-S35
The LS-TCL-S35 Series Bi-Telecentric lenses is a range of 9 telecentric lenses from LumaSpec Vision, from $1,029.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.09x, 238 mm WD, 1/1.8", 0.1x, 178 mm WD, 1/2.5", 0.113x, 158 mm WD, 1/2.5", 0.125x, 158 mm WD, 1/2", 0.141x, 158 mm WD, 1/1.8", 0.171x, 118 mm WD, 1/2.5", 0.19x, 118 mm WD, 1/2", 0.214x, 118 mm WD, 1/1.8", 0.381x, 40 mm WD, 1/1.8"
- Image circle
- Up to 8 mm, 8-11 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x
- Working distance
- Under 65 mm, 110-200 mm, 200 mm +
- Mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56"
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to 1/1.8"
- Supports cameras up to 1/1.8”
- Supports cameras up to 1/2.5"
- Supports cameras up to 1/2"
All 9 models in the LS-TCL-S35 Series Bi-Telecentric lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-0489 | 0.381x, 40 mm WD, 1/1.8" | 0.381 | 40 ± 1 mm | F6.8 | $1,029.00 | View |
| LS-TCL-0488 | 0.214x, 118 mm WD, 1/1.8" | 0.214 | 118 ± 3 mm | F4.6 | $1,259.00 | View |
| LS-TCL-0487 | 0.171x, 118 mm WD, 1/2.5" | 0.171 | 118 ± 3 mm | F4.2 | $1,279.00 | View |
| LS-TCL-0482 | 0.19x, 118 mm WD, 1/2" | 0.19 | 118 ± 3 mm | F4.2 | $1,379.00 | View |
| LS-TCL-0486 | 0.141x, 158 mm WD, 1/1.8" | 0.141 | 158 ± 3 mm | F4.6 | $1,649.00 | View |
| LS-TCL-0484 | 0.113x, 158 mm WD, 1/2.5" | 0.113 | 158 ± 3 mm | F4.2 | $1,649.00 | View |
| LS-TCL-0485 | 0.125x, 158 mm WD, 1/2" | 0.125 | 158 ± 3 mm | F4.2 | $1,649.00 | View |
| LS-TCL-0483 | 0.1x, 178 mm WD, 1/2.5" | 0.1 | 178 ± 3 mm | F4.2 | $1,789.00 | View |
| LS-TCL-0481 | 0.09x, 238 mm WD, 1/1.8" | 0.09 | 238 ± 4 mm | F4.6 | $2,269.00 | View |
