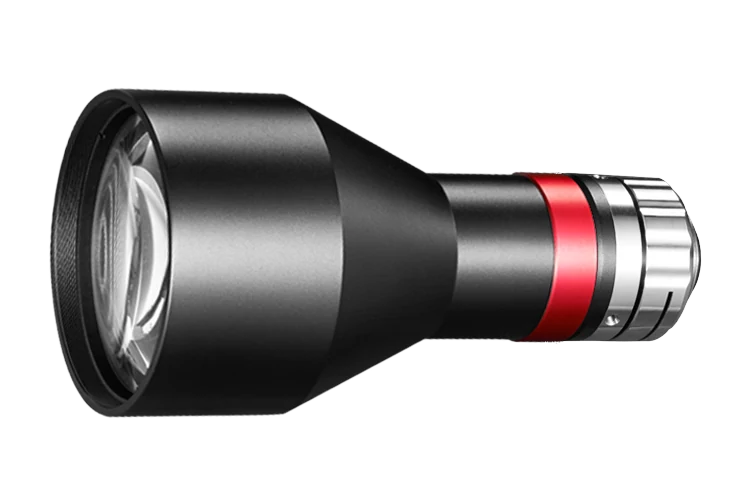

Bi-Telecentric Lens, 0.214x, 118 mm WD, 1/1.8" (LS-TCL-0488)
  • Bi-Telecentric Lens, 0.214x, 118 mm WD, 1/1.8" (LS-TCL-0488)

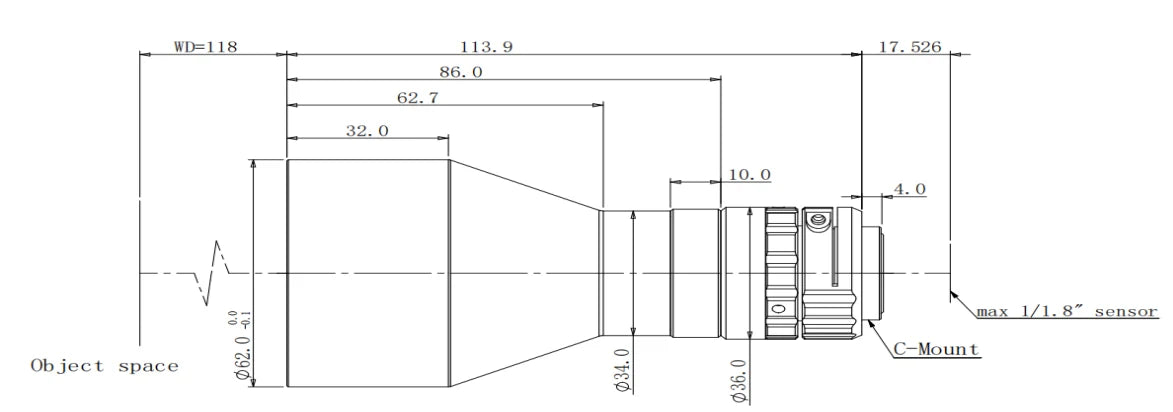

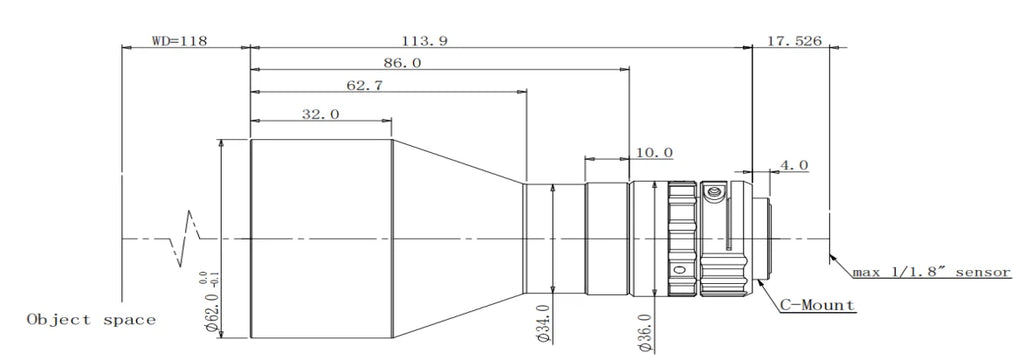

  • LS-TCL-0488 dimensions (mm)

Telecentric lenses

Bi-Telecentric Lens, 0.214x, 118 mm WD, 1/1.8" (LS-TCL-0488)

Model LS-TCL-0488

  • Magnification0.214
  • MountC-mount
  • Sensor1/1.8"
  • Working distance118 ± 3 mm
  • ApertureF4.6
$1,259.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-Telecentric Lens, 0.214x, 118 mm WD, 1/1.8" (LS-TCL-0488)LS-TCL-0488

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-Telecentric Lens, 0.214x, 118 mm WD, 1/1.8". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0488

Optics

Magnification0.214
Working distance118 ± 3 mm
F-numberF4.6
Image size1/1.8"
Depth of field±9.6 mm @F11
Distortion≤ 0.1%
Object-side resolution12.0 μm
Object-side telecentricity≤ 0.1°
Coaxial lightNot supported
Optical distortion< 0.1%

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension113.8 mm × Φ62 mm
Weight400 g
Shipping weight (estimated)0.66 kg

Other models in the LS-TCL-S35 Series Bi-Telecentric lenses series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-0489 0.381x, 40 mm WD, 1/1.8" $1,029.00 Ships in 2-3 weeks View
LS-TCL-0487 0.171x, 118 mm WD, 1/2.5" $1,279.00 Ships in 2-3 weeks View
LS-TCL-0482 0.19x, 118 mm WD, 1/2" $1,379.00 Ships in 2-3 weeks View
LS-TCL-0486 0.141x, 158 mm WD, 1/1.8" $1,649.00 Ships in 2-3 weeks View
LS-TCL-0484 0.113x, 158 mm WD, 1/2.5" $1,649.00 Ships in 2-3 weeks View
LS-TCL-0485 0.125x, 158 mm WD, 1/2" $1,649.00 Ships in 2-3 weeks View
LS-TCL-0483 0.1x, 178 mm WD, 1/2.5" $1,789.00 Ships in 2-3 weeks View
LS-TCL-0481 0.09x, 238 mm WD, 1/1.8" $2,269.00 Ships in 2-3 weeks View
