Telecentric lenses

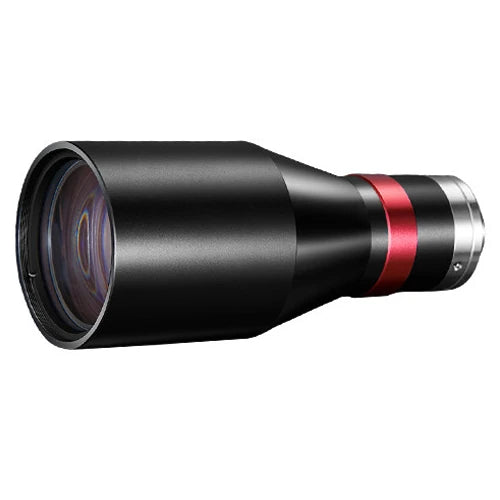

Bi-telecentric lens for 1/1.8" cameras (LS-TCL-S73)
- 24 models
- from $1,659.00
- Series LS-TCL-S73
The Bi-telecentric lens for 1/1.8" cameras (LS-TCL-S73) is a range of 24 telecentric lenses from LumaSpec Vision, from $1,659.00. It comes in 24 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- C-mount, 0.038x, WD 410 mm, 1/1.8", C-Mount, 0.047x, WD 330 mm, 1/1.8", C-mount, 0.053x, WD 318 mm, 1/1.8", C-Mount, 0.061x, WD 301 mm, 1/1.8", C-Mount, 0.066x, WD 288 mm, 1/1.8", C-Mount, 0.075x, WD 280 mm, 1/1.8", C-mount, 0.082x, WD 251 mm, 1/1.8", C-Mount, 0.097x, WD 254 mm, 1/1.8", C-Mount, 0.1x, WD 208 mm, 1/1.8", C-mount, 0.113x, WD 229 mm, 1/1.8", C-Mount, 0.126x, WD 178 mm, 1/1.8", C-Mount, 0.141x, WD 159 mm, 1/1.8", C-Mount, 0.142x, WD 187 mm, 1/1.8", C-Mount, 0.162x, WD 138 mm, 1/1.8", C-Mount, 0.188x, WD 128 mm, 1/1.8", C-Mount and 8 more
- Mount
- C-mount
- Image circle
- 8-11 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1/1.8" - 1/1.56"
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 24 models in the Bi-telecentric lens for 1/1.8" cameras (LS-TCL-S73)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2500 | 0.25x, WD 111 mm, 1/1.8", C-Mount | 0.250 | 111±2 | $1,659.00 | View | |
| LS-TCL-2499 | 0.25x, WD 110 mm, 1/1.8", C-mount | 0.250 | 110±2 | 4.6 | $1,659.00 | View |
| LS-TCL-2502 | 0.217x, WD 119 mm, 1/1.8", C-Mount | 0.217 | 119±2 | $1,749.00 | View | |
| LS-TCL-2501 | 0.214x, WD 118 mm, 1/1.8", C-mount | 0.214 | 118±3 | 4.6 | $1,769.00 | View |
| LS-TCL-2498 | 0.348x, WD 72 mm, 1/1.8", C-Mount | 0.347x | 72±2 | 5.3 | $1,809.00 | View |
| LS-TCL-2497 | 0.346x, WD 73 mm, 1/1.8", C-mount | 0.346 | 73±1 | 4.6 | $1,809.00 | View |
| LS-TCL-2504 | 0.188x, WD 128 mm, 1/1.8", C-Mount | 0.188 | 128±2 | $1,899.00 | View | |
| LS-TCL-2505 | 0.188x, WD 138 mm, 1/1.8", C-mount | 0.188 | 138±3 | 5.3 | $1,899.00 | View |
| LS-TCL-2503 | 0.188x, WD 128 mm, 1/1.8", C-mount | 0.188 | 128±3 | 4.6 | $1,899.00 | View |
| LS-TCL-2506 | 0.162x, WD 138 mm, 1/1.8", C-Mount | 0.162 | 138±2 | 4.6 | $2,139.00 | View |
| LS-TCL-2507 | 0.142x, WD 187 mm, 1/1.8", C-Mount | 0.142 | 187±2 | 5.3 | $2,509.00 | View |
| LS-TCL-2508 | 0.141x, WD 159 mm, 1/1.8", C-Mount | 0.141 | 159±2 | $2,699.00 | View | |
| LS-TCL-2509 | 0.126x, WD 178 mm, 1/1.8", C-Mount | 0.126 | 178±2 | 4.6 | $2,699.00 | View |
| LS-TCL-2510 | 0.113x, WD 229 mm, 1/1.8", C-Mount | 0.113 | 229±2 | 5.3 | $2,699.00 | View |
| LS-TCL-2511 | 0.1x, WD 208 mm, 1/1.8", C-mount | 0.100 | 208±3 | 4.6 | $2,889.00 | View |
| LS-TCL-2512 | 0.097x, WD 254 mm, 1/1.8", C-Mount | 0.097 | 254±3 | $3,239.00 | View | |
| LS-TCL-2513 | 0.082x, WD 251 mm, 1/1.8", C-Mount | 0.082 | 251±3 | $3,399.00 | View | |
| LS-TCL-2514 | 0.075x, WD 280 mm, 1/1.8", C-mount | 280±5 | 4.6 | $3,629.00 | View | |
| LS-TCL-2515 | 0.066x, WD 288 mm, 1/1.8", C-Mount | 0.066 | 288±4 | $4,049.00 | View | |
| LS-TCL-2516 | 0.061x, WD 301 mm, 1/1.8", C-Mount | 0.061 | 301±4 | 4.6 | $4,649.00 | View |
| LS-TCL-2517 | 0.053x, WD 318 mm, 1/1.8", C-Mount | 0.053 | 318±4 | $4,819.00 | View | |
| LS-TCL-2518 | 0.047x, WD 330 mm, 1/1.8", C-mount | 0.047 | 330±5 | 4.6 | $5,369.00 | View |
| LS-TCL-2519 | 0.038x, WD 410 mm, 1/1.8", C-Mount | 0.038 | 410±5 | 4.6 | $6,589.00 | View |
| LS-TCL-2520 | C-mount | $7,289.00quote | View |
