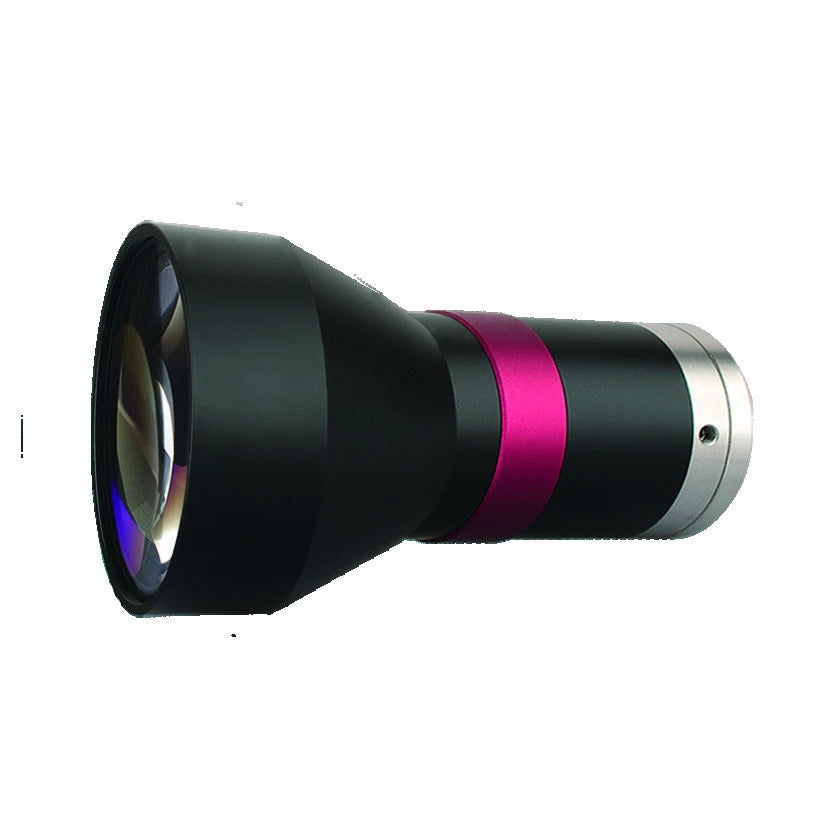

Bi-telecentric lens for 1/1.8" cameras, 0.188x, WD 128 mm, C-mount (LS-TCL-2503)

Model LS-TCL-2503

Magnification0.188x
MountC-mount
Sensor1/1.8"
Working distance128±3
Field of view48

$1,899.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-TCL-S73 series bi-telecentric lenses for 1/1.8" cameras. Matrix-design with extremely high imaging quality, standard FOV from 26 to 240 mm; each LS-TCL-S73 series lens comes with an imaging quality test report.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2503

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
Magnification (x)	0.188
Object field of view (dia. mm)	48
Working distance (mm)	128±3
Best Aperture (F/#)	4.6
MTF30 (lp/mm)	>190
Depth of field (mm)	±12.4@F11
Field of view with ICX274/687 (7.16x5.44 sensor) (mm x mm)	38.1x28.9
Field of view with EV76C570 (7.2x5.4 sensor) (mm x mm)	38.3x28.7
Compatible telecentric led lighting	LS-CLM-0070

Sensor and imaging

Max sensor size (dia. mm)	9(1/1.8")

Interfaces and I/O

Length of I/O (mm)	273±3

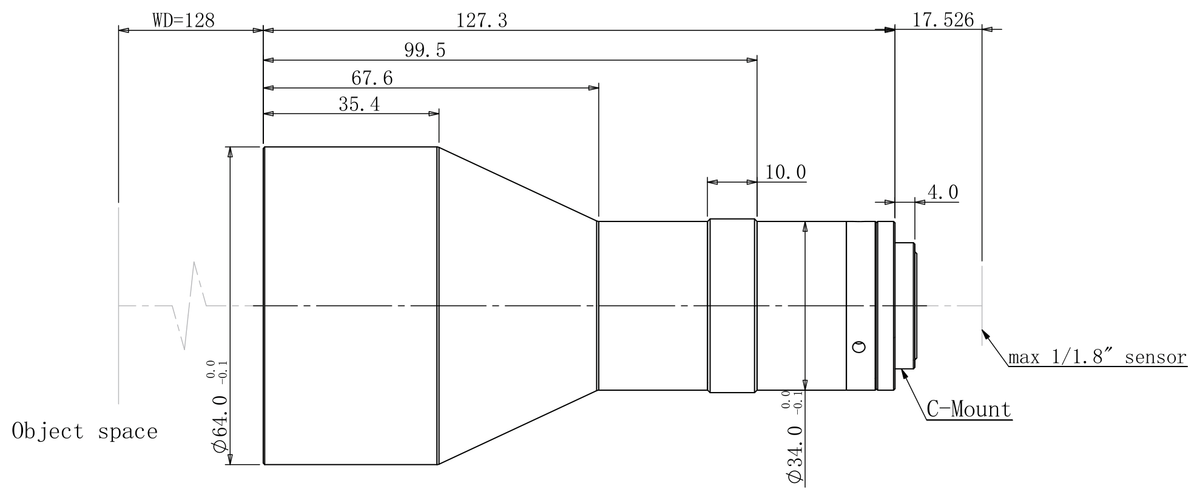

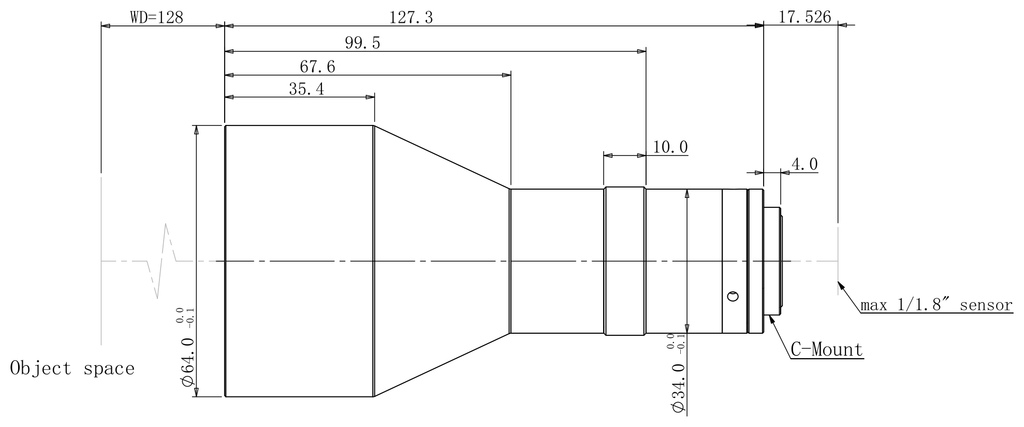

Mechanical

Mount	C-Mount
Length (mm)	127.3
Weight (kg)	0.4

Downloads

Datasheet (PDF)LS-TCL-2503 · 2.7 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S73 series lens comes with an imaging quality test report

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)
