Bi-telecentric lens for 1/1.8" cameras (LS-TCL-S73)

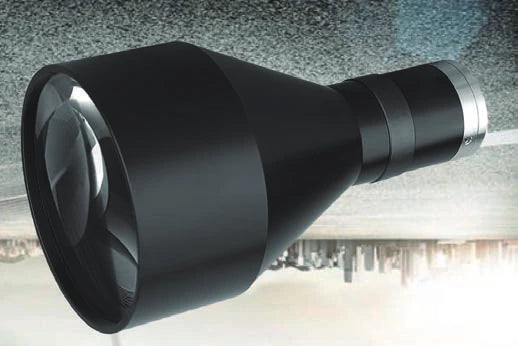

Representative photo of this series

Telecentric lenses

Bi-telecentric lens for 1/1.8" cameras, 0.053x, WD 318 mm, C-Mount (LS-TCL-2517)

Model LS-TCL-2517

Magnification0.053x
MountC-mount
Sensor1/1.8"
Working distance318±4
Field of view135.0x102.6

$4,819.00

Ships in 2-3 weeks

9.76 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-TCL-S73 series bi-telecentric lenses for 1/1.8" cameras. Matrix-design with extremely high imaging quality, standard FOV from 26 to 240 mm; each LS-TCL-S73 series lens comes with an imaging quality test report.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2517
FOV (dia. mm)	170

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
F/#	4.7
MTF30 (lp/mm)	>180
Magnification (x)	0.053
Working distance (mm)	318±4
Depth of field (mm)	±25
Field of view on 1/1.8" ICX274/687(7.16x5.44) (mm x mm)	135.0x102.6
Field of view on 1/1.8" EV76C570(7.2x5.4) (mm x mm)	135.8x101.8

Sensor and imaging

Max sensor size (dia. mm)	9(1/1.8")
Sensor format	1/1.8"

Interfaces and I/O

I/O (mm)	726.5

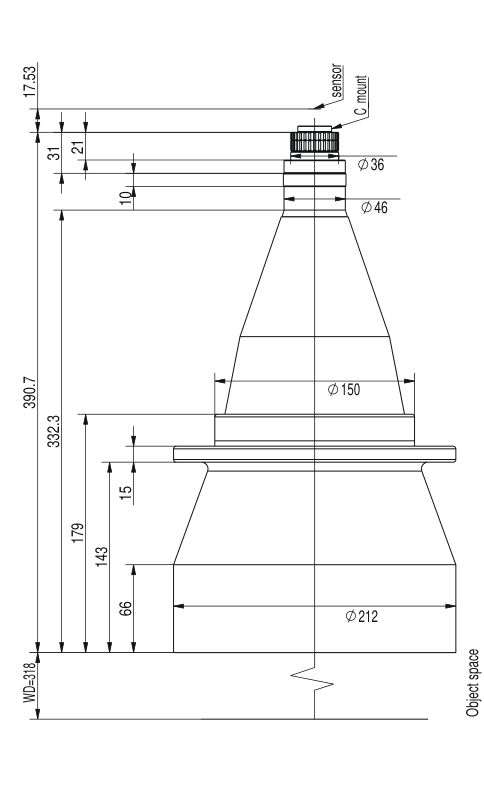

Mechanical

Mount	C-Mount
Length (mm)	390.7
Weight (kg)	6.9

Downloads

Datasheet (PDF)LS-TCL-2517 · 2.7 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S73 series lens comes with an imaging quality test report

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)
