Telecentric lenses

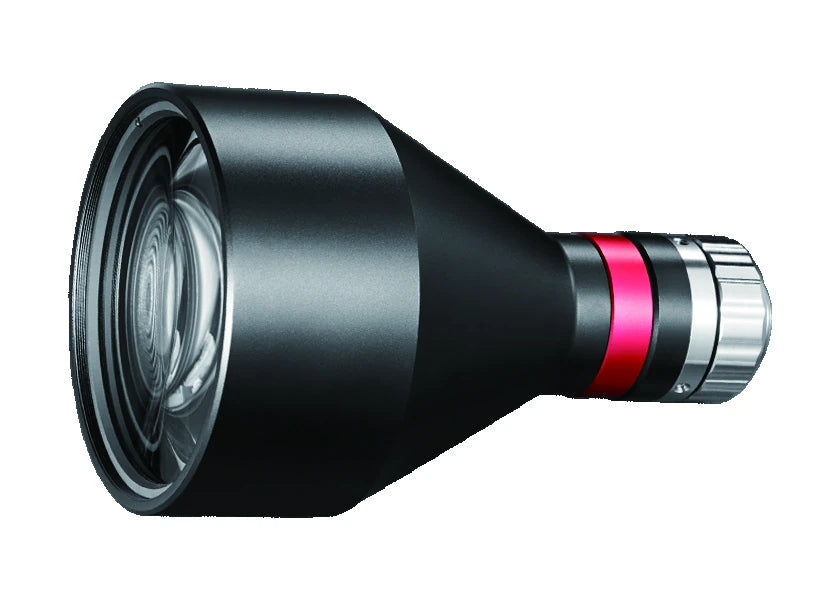

Bi-telecentric lens for 1/1.8" cameras, 0.126x, WD 178 mm, C-Mount (LS-TCL-2509)

Model LS-TCL-2509

Magnification0.126x
MountC-mount
Sensor1/1.8"
Working distance178±2
Field of view57.3x43.5

$2,699.00

Ships in 2-3 weeks

1.64 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-TCL-S73 series bi-telecentric lenses for 1/1.8" cameras. Matrix-design with extremely high imaging quality, standard FOV from 26 to 240 mm; each LS-TCL-S73 series lens comes with an imaging quality test report.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2509
FOV (dia. mm)	72

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
F/#	7.1
MTF30 (lp/mm)	>175
Magnification (x)	0.126
Working distance (mm)	178±2
Depth of field (mm)	±4
Best Aperture (F/#)	4.6
Field of view with ICX274/687 (7.16x5.44 sensor) (mm x mm)	57.3x43.5
Field of view with EV76C570 (7.2x5.4 sensor) (mm x mm)	57.6x43.2
Compatible telecentric led lighting	LS-CLM-0075

Sensor and imaging

Max sensor size (dia. mm)	9(1/1.8")
Sensor format	1/1.8"

Interfaces and I/O

I/O (mm)	378±3

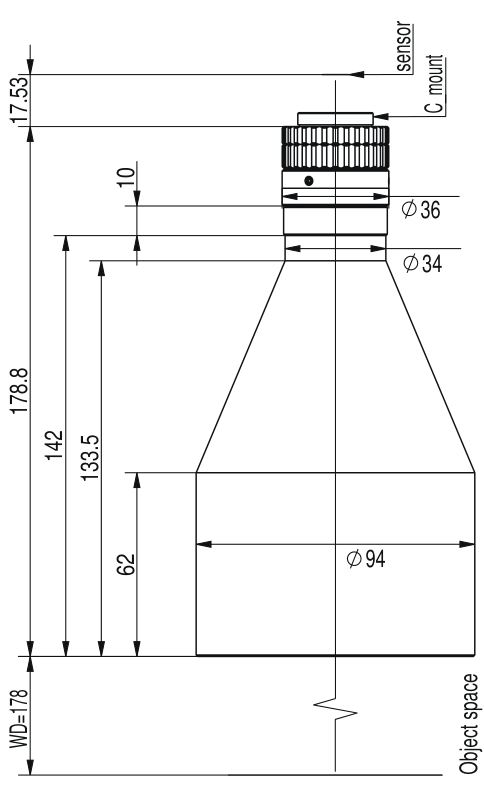

Mechanical

Mount	C-Mount
Length (mm)	178.8
Weight (kg)	1.1

Downloads

Datasheet (PDF)LS-TCL-2509 · 2.7 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S73 series lens comes with an imaging quality test report

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Bi-telecentric lens for 1/1.8" cameras (LS-TCL-S73) series

See all 24 models

Model	Size / key data	Price	Availability	Link
LS-TCL-2500	0.25x, WD 111 mm, 1/1.8", C-Mount	$1,659.00	Ships in 2-3 weeks	View
LS-TCL-2499	0.25x, WD 110 mm, 1/1.8", C-mount	$1,659.00	Ships in 2-3 weeks	View
LS-TCL-2502	0.217x, WD 119 mm, 1/1.8", C-Mount	$1,749.00	Ships in 2-3 weeks	View
LS-TCL-2501	0.214x, WD 118 mm, 1/1.8", C-mount	$1,769.00	Ships in 2-3 weeks	View
LS-TCL-2498	0.348x, WD 72 mm, 1/1.8", C-Mount	$1,809.00	Ships in 2-3 weeks	View
LS-TCL-2497	0.346x, WD 73 mm, 1/1.8", C-mount	$1,809.00	Ships in 2-3 weeks	View
LS-TCL-2504	0.188x, WD 128 mm, 1/1.8", C-Mount	$1,899.00	Ships in 2-3 weeks	View
LS-TCL-2505	0.188x, WD 138 mm, 1/1.8", C-mount	$1,899.00	Ships in 2-3 weeks	View
LS-TCL-2503	0.188x, WD 128 mm, 1/1.8", C-mount	$1,899.00	Ships in 2-3 weeks	View
LS-TCL-2506	0.162x, WD 138 mm, 1/1.8", C-Mount	$2,139.00	Ships in 2-3 weeks	View
LS-TCL-2507	0.142x, WD 187 mm, 1/1.8", C-Mount	$2,509.00	Ships in 2-3 weeks	View
LS-TCL-2508	0.141x, WD 159 mm, 1/1.8", C-Mount	$2,699.00	Ships in 2-3 weeks	View
LS-TCL-2510	0.113x, WD 229 mm, 1/1.8", C-Mount	$2,699.00	Ships in 2-3 weeks	View
LS-TCL-2511	0.1x, WD 208 mm, 1/1.8", C-mount	$2,889.00	Ships in 2-3 weeks	View
LS-TCL-2512	0.097x, WD 254 mm, 1/1.8", C-Mount	$3,239.00	Ships in 2-3 weeks	View
LS-TCL-2513	0.082x, WD 251 mm, 1/1.8", C-Mount	$3,399.00	Ships in 2-3 weeks	View
LS-TCL-2514	0.075x, WD 280 mm, 1/1.8", C-mount	$3,629.00	Ships in 2-3 weeks	View
LS-TCL-2515	0.066x, WD 288 mm, 1/1.8", C-Mount	$4,049.00	Ships in 2-3 weeks	View
LS-TCL-2516	0.061x, WD 301 mm, 1/1.8", C-Mount	$4,649.00	Ships in 2-3 weeks	View
LS-TCL-2517	0.053x, WD 318 mm, 1/1.8", C-Mount	$4,819.00	Ships in 2-3 weeks	View
LS-TCL-2518	0.047x, WD 330 mm, 1/1.8", C-mount	$5,369.00	Ships in 2-3 weeks	View
LS-TCL-2519	0.038x, WD 410 mm, 1/1.8", C-Mount	$6,589.00	Ships in 2-3 weeks	View
LS-TCL-2520	C-mount	$7,289.00 Quote	Ships in 2-3 weeks	View
