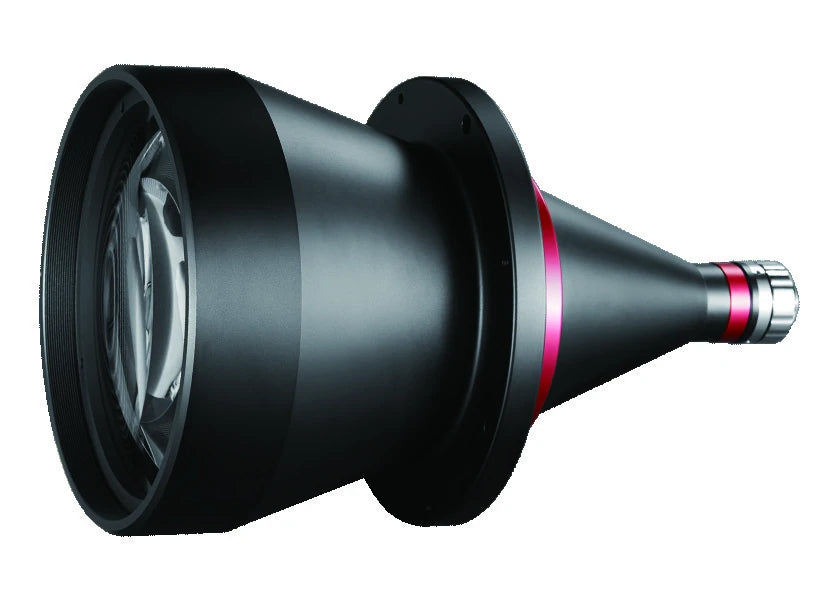

Bi-telecentric lens for 1/1.8" cameras, 0.038x, WD 410 mm, C-Mount (LS-TCL-2519)

Model LS-TCL-2519

Magnification0.038x
MountC-mount
Sensor1/1.8"
Working distance410±5
Field of view188.4x143.2

$6,589.00

Ships in 2-3 weeks

24.6 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-TCL-S73 series bi-telecentric lenses for 1/1.8" cameras. Matrix-design with extremely high imaging quality, standard FOV from 26 to 240 mm; each LS-TCL-S73 series lens comes with an imaging quality test report.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2519
FOV (dia. mm)	240

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
F/#	5.9
MTF30 (lp/mm)	>180
Magnification (x)	0.038
Working distance (mm)	410±5
Depth of field (mm)	±30
Best Aperture (F/#)	4.6
Field of view with ICX274/687 (7.16x5.44 sensor) (mm x mm)	188.4x143.2
Field of view with EV76C570 (7.2x5.4 sensor) (mm x mm)	189.5x142.1
Compatible telecentric led lighting	LS-CLM-0089

Sensor and imaging

Max sensor size (dia. mm)	9(1/1.8")
Sensor format	1/1.8"

Interfaces and I/O

I/O (mm)	982±6

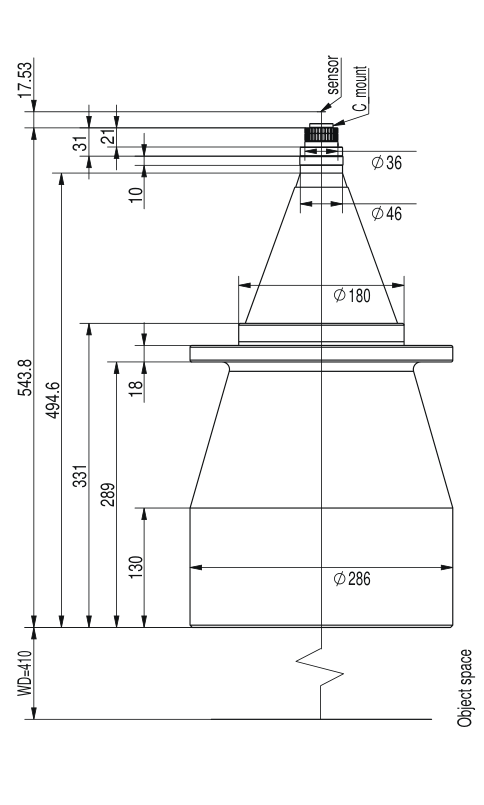

Mechanical

Mount	C-Mount
Length (mm)	543.8
Weight (kg)	17.5

Downloads

Datasheet (PDF)LS-TCL-2519 · 2.7 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S73 series lens comes with an imaging quality test report

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)
