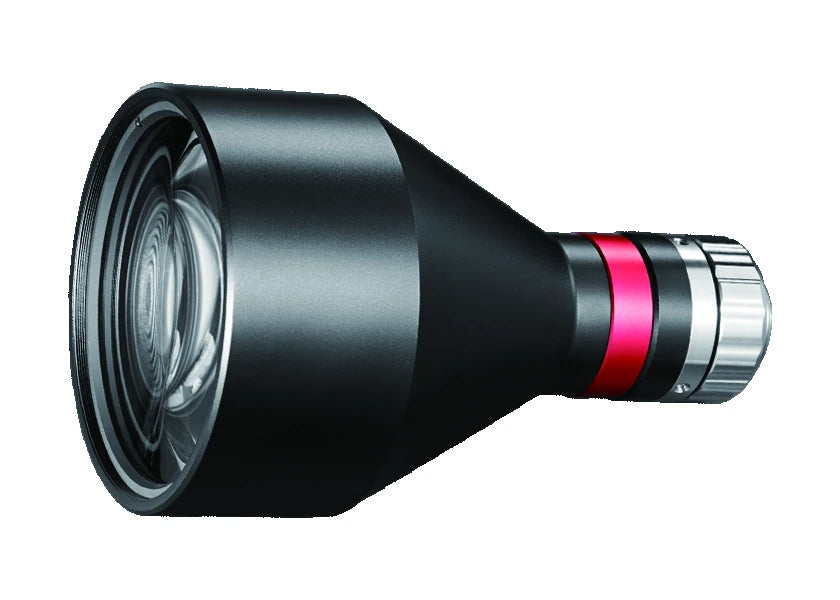

Bi-telecentric lens for 1/1.8" cameras (VCM118 series), 0.188x, WD 138 mm, 1/1.8", C-mount (LS-VCM118-48S-AL)
  • Bi-telecentric lens for 1/1.8" cameras (VCM118 series), 0.188x, WD 138 mm, 1/1.8", C-mount (LS-VCM118-48S-AL)

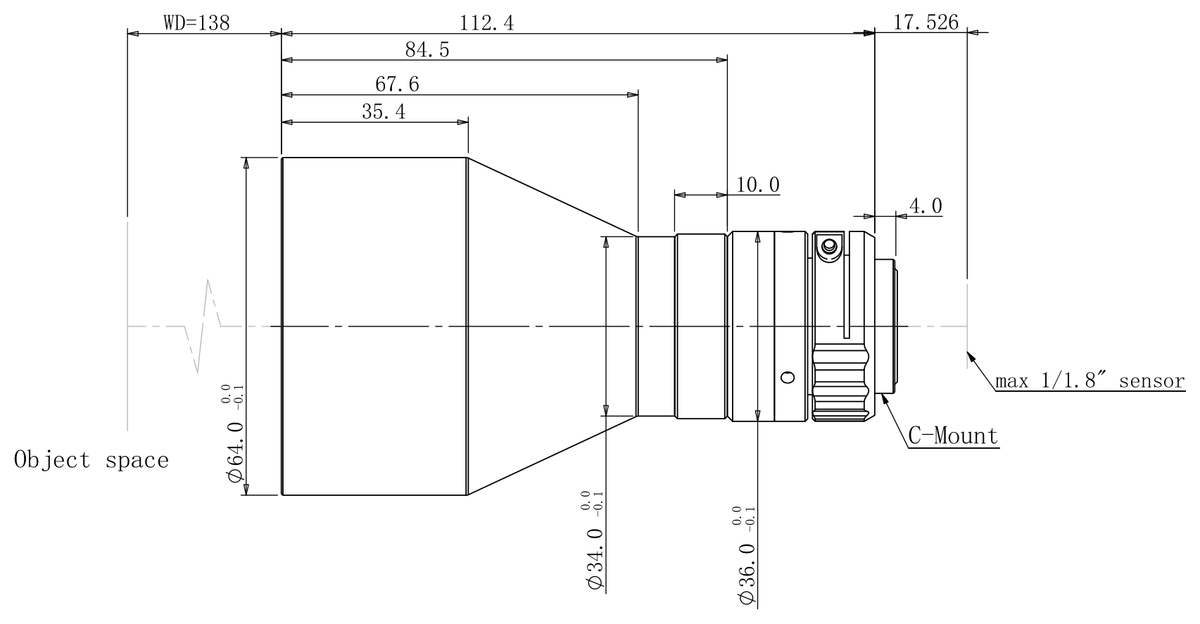

  • LS-VCM118-48S-AL dimensions (mm)

Telecentric lenses

Bi-telecentric lens for 1/1.8" cameras, 0.188x, WD 138 mm, C-mount (LS-TCL-2505)

Model LS-TCL-2505

  • Magnification0.188x
  • MountC-mount
  • Sensor1/1.8"
  • Working distance138±3
  • Field of view48
$1,899.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens for 1/1.8" cameras, 0.188x, WD 138 mm, C-mount (LS-TCL-2505)LS-TCL-2505

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-S73 series bi-telecentric lenses for 1/1.8" cameras. Matrix-design with extremely high imaging quality, standard FOV from 26 to 240 mm; each LS-TCL-S73 series lens comes with an imaging quality test report.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2505

Optics

Distortion (% max)<0.1
Telecentricity (deg max)<0.1
Magnification (x)0.188
Object field of view (dia. mm)48
Working distance (mm)138±3
Best Aperture (F/#)5.3
MTF30 (lp/mm)>165
Depth of field (mm)±12.4@F11
Field of view with ICX274/687 (7.16x5.44 sensor) (mm x mm)38.1x28.9
Field of view with EV76C570 (7.2x5.4 sensor) (mm x mm)38.3x28.7
Compatible telecentric led lightingLS-CLM-0070

Sensor and imaging

Max sensor size (dia. mm)9(1/1.8")

Interfaces and I/O

Length of I/O (mm)268±3

Mechanical

MountC-Mount
Length (mm)112.4
Weight (kg)0.4

Other models in the Bi-telecentric lens for 1/1.8" cameras (LS-TCL-S73) series

See all 24 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2500 0.25x, WD 111 mm, 1/1.8", C-Mount $1,659.00 5 in stock View
LS-TCL-2499 0.25x, WD 110 mm, 1/1.8", C-mount $1,659.00 5 in stock View
LS-TCL-2502 0.217x, WD 119 mm, 1/1.8", C-Mount $1,749.00 4 in stock View
LS-TCL-2501 0.214x, WD 118 mm, 1/1.8", C-mount $1,769.00 4 in stock View
LS-TCL-2498 0.348x, WD 72 mm, 1/1.8", C-Mount $1,809.00 5 in stock View
LS-TCL-2497 0.346x, WD 73 mm, 1/1.8", C-mount $1,809.00 2 in stock View
LS-TCL-2504 0.188x, WD 128 mm, 1/1.8", C-Mount $1,899.00 5 in stock View
LS-TCL-2503 0.188x, WD 128 mm, 1/1.8", C-mount $1,899.00 5 in stock View
LS-TCL-2506 0.162x, WD 138 mm, 1/1.8", C-Mount $2,139.00 5 in stock View
LS-TCL-2507 0.142x, WD 187 mm, 1/1.8", C-Mount $2,509.00 2 in stock View
LS-TCL-2508 0.141x, WD 159 mm, 1/1.8", C-Mount $2,699.00 3 in stock View
LS-TCL-2509 0.126x, WD 178 mm, 1/1.8", C-Mount $2,699.00 4 in stock View
LS-TCL-2510 0.113x, WD 229 mm, 1/1.8", C-Mount $2,699.00 5 in stock View
LS-TCL-2511 0.1x, WD 208 mm, 1/1.8", C-mount $2,889.00 3 in stock View
LS-TCL-2512 0.097x, WD 254 mm, 1/1.8", C-Mount $3,239.00 2 in stock View
LS-TCL-2513 0.082x, WD 251 mm, 1/1.8", C-Mount $3,399.00 2 in stock View
LS-TCL-2514 0.075x, WD 280 mm, 1/1.8", C-mount $3,629.00 2 in stock View
LS-TCL-2515 0.066x, WD 288 mm, 1/1.8", C-Mount $4,049.00 3 in stock View
LS-TCL-2516 0.061x, WD 301 mm, 1/1.8", C-Mount $4,649.00 3 in stock View
LS-TCL-2517 0.053x, WD 318 mm, 1/1.8", C-Mount $4,819.00 3 in stock View
LS-TCL-2518 0.047x, WD 330 mm, 1/1.8", C-mount $5,369.00 2 in stock View
LS-TCL-2519 0.038x, WD 410 mm, 1/1.8", C-Mount $6,589.00 4 in stock View
LS-TCL-2520 C-mount $7,289.00 Quote Ships in 2-3 weeks View
