Telecentric lenses

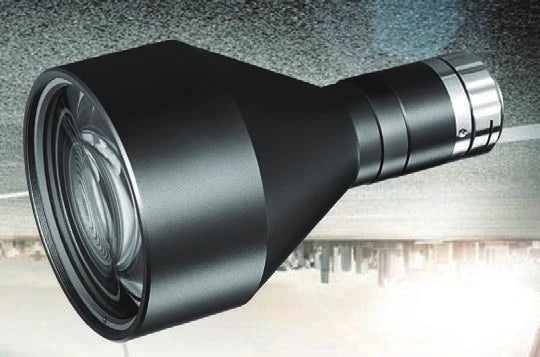

Bi-telecentric lens for 2/3" cameras (LS-TCL-S84)
- 19 models
- from $1,399.00
- Series LS-TCL-S84
The Bi-telecentric lens for 2/3" cameras (LS-TCL-S84) is a range of 19 telecentric lenses from LumaSpec Vision, from $1,399.00. It comes in 19 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.048x, WD 410 mm, 2/3", C-Mount, 0.067x, WD 318 mm, 2/3", C-Mount, 0.076x, WD 301 mm, 2/3", C-Mount, 0.084x, WD 288 mm, 2/3", C-Mount, 0.103x, WD 251 mm, 2/3", C-Mount, 0.115x, WD 238 mm, 2/3", C-Mount, 0.123x, WD 254 mm, 2/3", C-Mount, 0.127x, WD 208 mm, 2/3", C-Mount, 0.143x, WD 229 mm, 2/3", C-Mount, 0.143x, WD 230 mm, 2/3", C-Mount, 0.159x, WD 178 mm, 2/3", C-Mount, 0.179x, WD 159 mm, 2/3", C-Mount, 0.179x, WD 187 mm, 2/3", C-Mount, 0.204x, WD 138 mm, 2/3", C-Mount, 0.238x, WD 128 mm, 2/3", C-Mount, 0.271x, WD 119 mm, 2/3", C-Mount and 3 more
- Mount
- C-mount
- Image circle
- 8-11 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 2/3"
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 19 models in the Bi-telecentric lens for 2/3" cameras (LS-TCL-S84)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2703 | 0.439x, WD 72 mm, 2/3", C-Mount | 0.439 | 72±2 | 5.3 | $1,399.00 | View |
| LS-TCL-2706 | 0.273x, WD 118 mm, 2/3", C-Mount | 0.273 | 118±2 | $1,529.00 | View | |
| LS-TCL-2704 | 0.314x, WD 111 mm, 2/3", C-Mount | 0.314 | 111±2 | 5.5 | $1,629.00 | View |
| LS-TCL-2705 | 0.271x, WD 119 mm, 2/3", C-Mount | 0.271 | 119±2 | 4.8 | $1,769.00 | View |
| LS-TCL-2707 | 0.238x, WD 128 mm, 2/3", C-Mount | 0.238 | 128±2 | 5 | $1,899.00 | View |
| LS-TCL-2708 | 0.204x, WD 138 mm, 2/3", C-Mount | 0.204 | 138±2 | 5 | $2,089.00 | View |
| LS-TCL-2713 | 0.143x, WD 230 mm, 2/3", C-Mount | 0.143 | 230±2 | $2,179.00 | View | |
| LS-TCL-2709 | 0.179x, WD 187 mm, 2/3", C-Mount | 0.179 | 187±2 | 6.5 | $2,279.00 | View |
| LS-TCL-2710 | 0.179x, WD 159 mm, 2/3", C-Mount | 0.179 | 159±2 | 4.8 | $2,279.00 | View |
| LS-TCL-2714 | 0.127x, WD 208 mm, 2/3", C-Mount | 0.127 | 208±2 | $2,349.00 | View | |
| LS-TCL-2711 | 0.159x, WD 178 mm, 2/3", C-Mount | 0.159 | 178±2 | 5.4 | $2,459.00 | View |
| LS-TCL-2716 | 0.115x, WD 238 mm, 2/3", C-Mount | 0.115 | 238±3 | $2,529.00 | View | |
| LS-TCL-2712 | 0.143x, WD 229 mm, 2/3", C-Mount | 0.143 | 229±2 | 5 | $2,659.00 | View |
| LS-TCL-2715 | 0.123x, WD 254 mm, 2/3", C-Mount | 0.123 | 254±3 | 5 | $2,979.00 | View |
| LS-TCL-2717 | 0.103x, WD 251 mm, 2/3", C-Mount | 0.103 | 251±3 | 5 | $3,419.00 | View |
| LS-TCL-2718 | 0.084x, WD 288 mm, 2/3", C-Mount | 0.084 | 288±4 | 4.5 | $4,049.00 | View |
| LS-TCL-2719 | 0.076x, WD 301 mm, 2/3", C-Mount | 0.076 | 301±4 | 5 | $4,359.00 | View |
| LS-TCL-2720 | 0.067x, WD 318 mm, 2/3", C-Mount | 0.067 | 318±4 | 4.5 | $4,829.00 | View |
| LS-TCL-2721 | 0.048x, WD 410 mm, 2/3", C-Mount | 0.048 | 410±5 | 4.5 | $6,609.00 | View |
