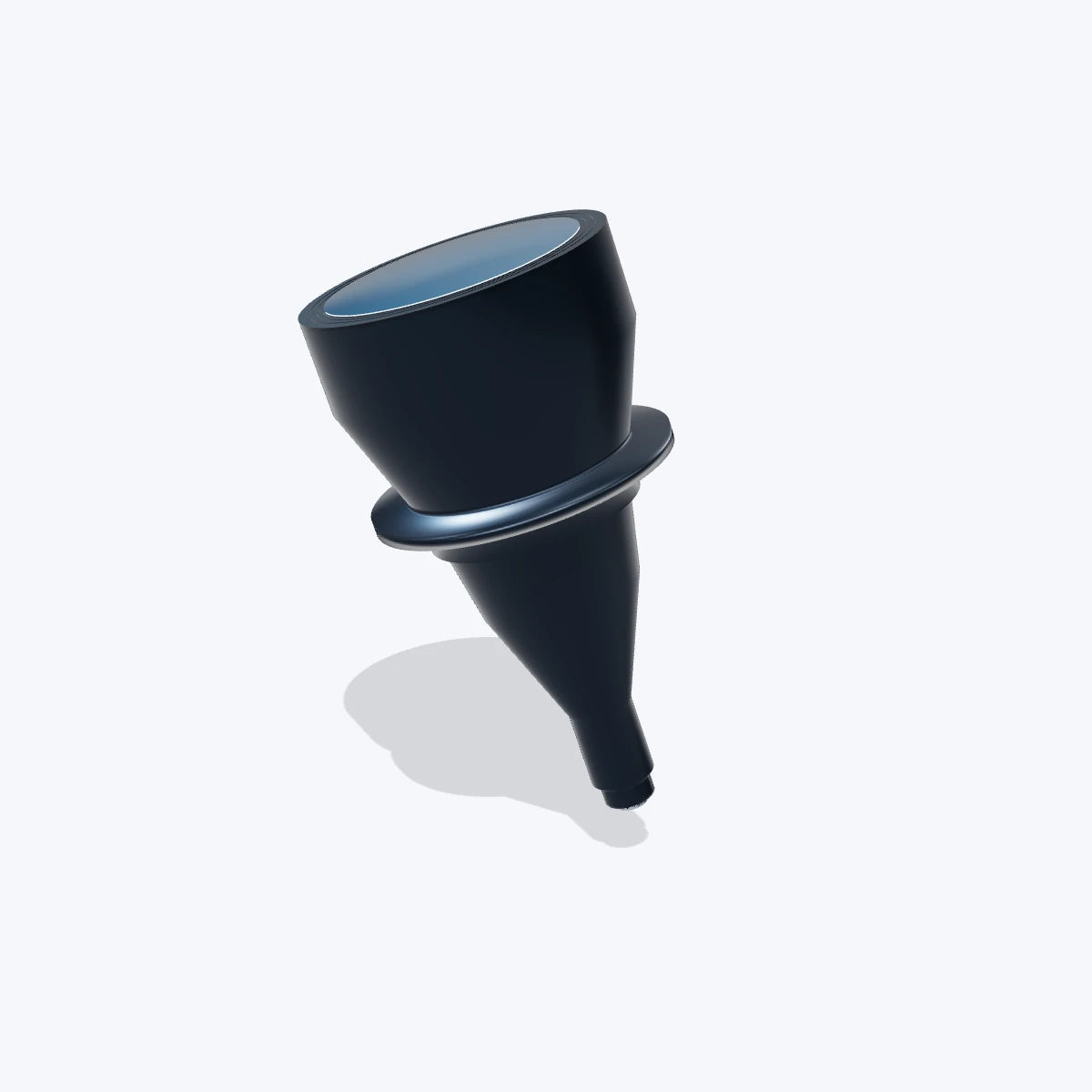

LS-TCL-2720 — Telecentric lenses. Dimension-based illustration; details and finish are representative.
  • LS-TCL-2720 — Telecentric lenses. Dimension-based illustration; details and finish are representative.

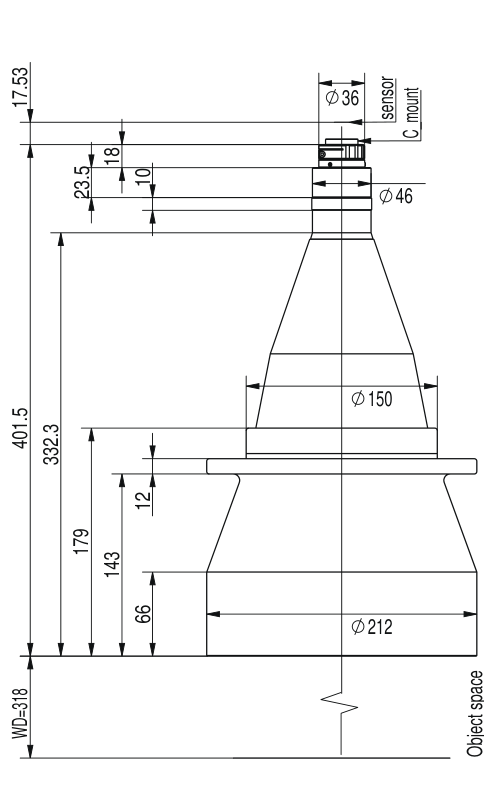

  • LS-TCL-2720 dimensions (mm)

Drawing-based illustration. Exterior profile follows this model's own dimensioned drawing; traced contours and port reach are approximate. Glass aperture, small surface details and finish are representative.

Telecentric lenses

Bi-telecentric lens for 2/3" cameras, 0.067x, WD 318 mm, C-Mount (LS-TCL-2720)

Model LS-TCL-2720

  • Magnification0.067x
  • MountC-mount
  • Sensor2/3"
  • Working distance318±4
  • Field of view126.4x105.9
$4,829.00

Ships in 2-3 weeks

9.9 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bi-telecentric lens for 2/3" cameras, 0.067x, WD 318 mm, C-Mount (LS-TCL-2720)LS-TCL-2720

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bi-telecentric lens series for sensors up to 2/3" (11.4 mm dia.), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2720
FOV with 8.45x7.07 with IMX264 (mm x mm)126.1x105.5

Optics

Distortion (% max)<0.1
Telecentricity (deg max)<0.1
F/#4.5
MTF30 (lp/mm)>145
Magnification (x)0.067
Working distance (mm)318±4
Depth of field (mm)±20
Field of view on 2/3" ICX625/655(8.47x7.1) (mm x mm)126.4x105.9
Field of view (dia. mm)170
Object-to-image distance I/O (mm)737.3

Sensor and imaging

Max sensor size (dia. mm)11.4(2/3")
Sensor format2/3"

Mechanical

MountC-Mount
Length (mm)401.5
Weight (kg)7.0

Other models in the Bi-telecentric lens for 2/3" cameras (LS-TCL-S84) series

See all 19 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2703 0.439x, WD 72 mm, 2/3", C-Mount $1,399.00 Ships in 2-3 weeks View
LS-TCL-2706 0.273x, WD 118 mm, 2/3", C-Mount $1,529.00 Ships in 2-3 weeks View
LS-TCL-2704 0.314x, WD 111 mm, 2/3", C-Mount $1,629.00 Ships in 2-3 weeks View
LS-TCL-2705 0.271x, WD 119 mm, 2/3", C-Mount $1,769.00 Ships in 2-3 weeks View
LS-TCL-2707 0.238x, WD 128 mm, 2/3", C-Mount $1,899.00 Ships in 2-3 weeks View
LS-TCL-2708 0.204x, WD 138 mm, 2/3", C-Mount $2,089.00 Ships in 2-3 weeks View
LS-TCL-2713 0.143x, WD 230 mm, 2/3", C-Mount $2,179.00 Ships in 2-3 weeks View
LS-TCL-2709 0.179x, WD 187 mm, 2/3", C-Mount $2,279.00 Ships in 2-3 weeks View
LS-TCL-2710 0.179x, WD 159 mm, 2/3", C-Mount $2,279.00 Ships in 2-3 weeks View
LS-TCL-2714 0.127x, WD 208 mm, 2/3", C-Mount $2,349.00 Ships in 2-3 weeks View
LS-TCL-2711 0.159x, WD 178 mm, 2/3", C-Mount $2,459.00 Ships in 2-3 weeks View
LS-TCL-2716 0.115x, WD 238 mm, 2/3", C-Mount $2,529.00 Ships in 2-3 weeks View
LS-TCL-2712 0.143x, WD 229 mm, 2/3", C-Mount $2,659.00 Ships in 2-3 weeks View
LS-TCL-2715 0.123x, WD 254 mm, 2/3", C-Mount $2,979.00 Ships in 2-3 weeks View
LS-TCL-2717 0.103x, WD 251 mm, 2/3", C-Mount $3,419.00 Ships in 2-3 weeks View
LS-TCL-2718 0.084x, WD 288 mm, 2/3", C-Mount $4,049.00 Ships in 2-3 weeks View
LS-TCL-2719 0.076x, WD 301 mm, 2/3", C-Mount $4,359.00 Ships in 2-3 weeks View
LS-TCL-2721 0.048x, WD 410 mm, 2/3", C-Mount $6,609.00 Ships in 2-3 weeks View
