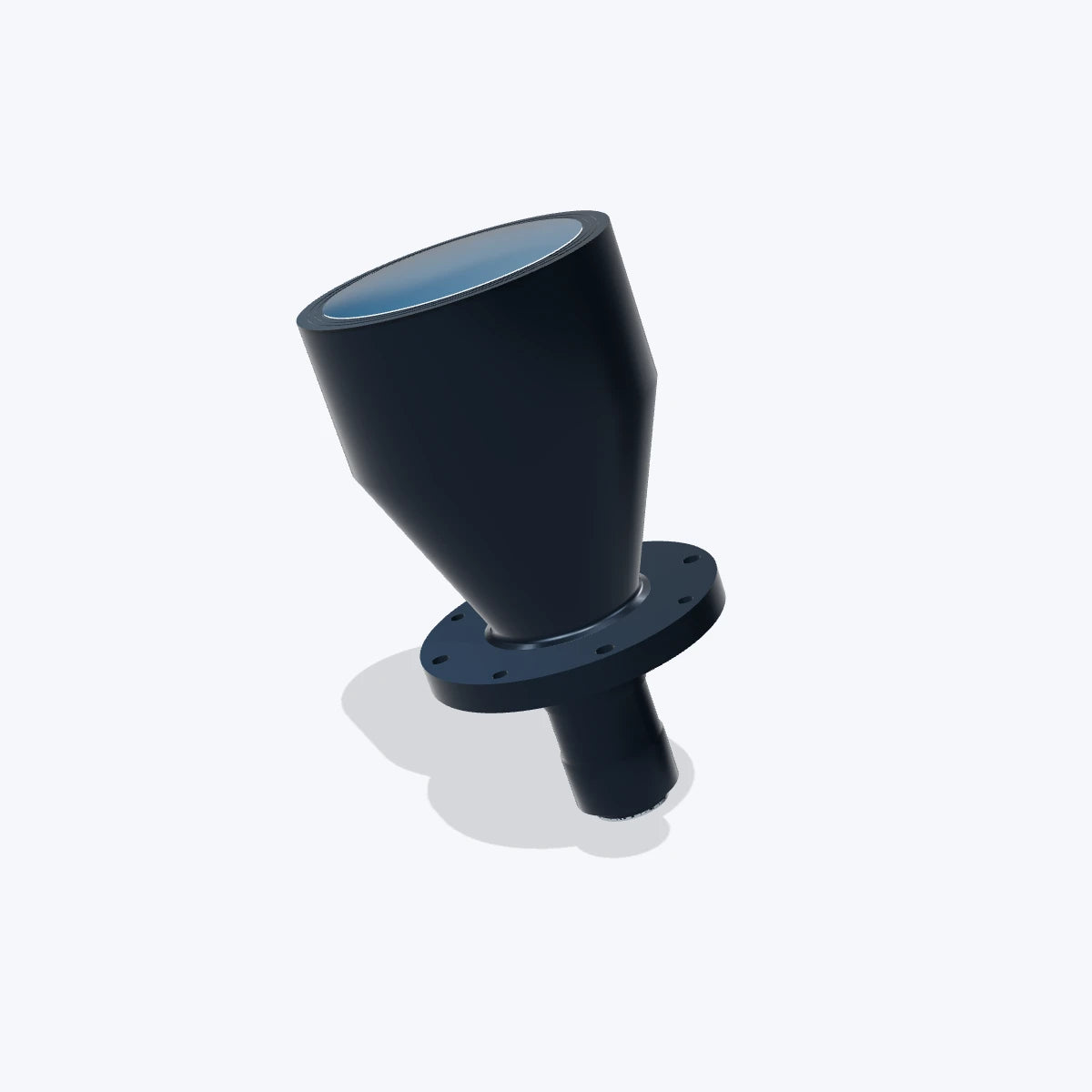

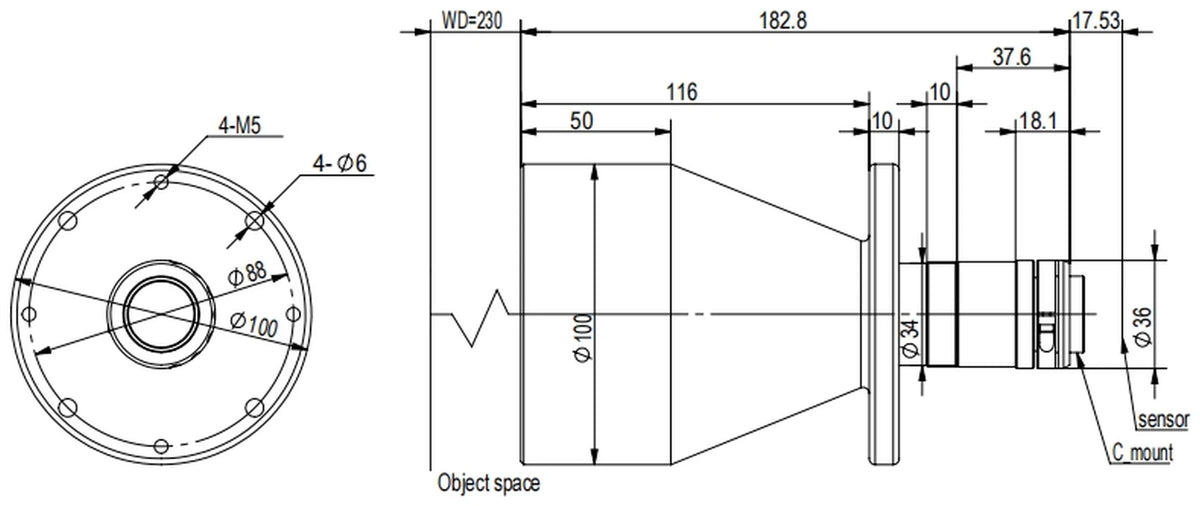

Drawing-based illustration. Exterior profile follows this model's own dimensioned drawing; traced contours and port reach are approximate. Glass aperture, small surface details and finish are representative.

Telecentric lenses

Bi-telecentric lens for 2/3" cameras, 0.143x, WD 230 mm, C-Mount (LS-TCL-2713)

Model LS-TCL-2713

Magnification0.143x
MountC-mount
Sensor2/3"
Working distance230±2
Field of view80

$2,179.00

Ships in 2-3 weeks

2.65 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bi-telecentric lens series for sensors up to 2/3" (11.4 mm dia.), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2713
FOV with 8.45x7.07 with IMX264 (mm x mm)	59.0x49.4

Optics

Distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
Magnification (x)	0.143
Object field of view (dia. mm)	80
Working distance (mm)	230±2
Best Aperture (F/#)	5.4
MTF30 (lp/mm)	>141
Depth of field (mm)	±6

Sensor and imaging

Max sensor size (dia. mm)	11.4(2/3")
Sensor format	2/3"

Interfaces and I/O

Length of I/O (mm)	430.3

Mechanical

Mount	C-Mount
Length (mm)	182.8
Weight (kg)	1.82

Downloads

Datasheet (PDF)LS-TCL-2713 · 2.4 MB

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality
Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
Excellent F number, high telecentricity, extremely low distortion, super large DoF
Each LS-TCL-S84 series lens comes with an imaging quality test report
Largest FOV from 26mm upto 300mm
Optimized for 1/2.5"~1.1" C-Mount cameras
Low distortion, good telecentricity, big aperture and big depth of field for high end application.

Applications

Industrial imaging applications (standard FOV 26 to 240 mm)
