Telecentric lenses

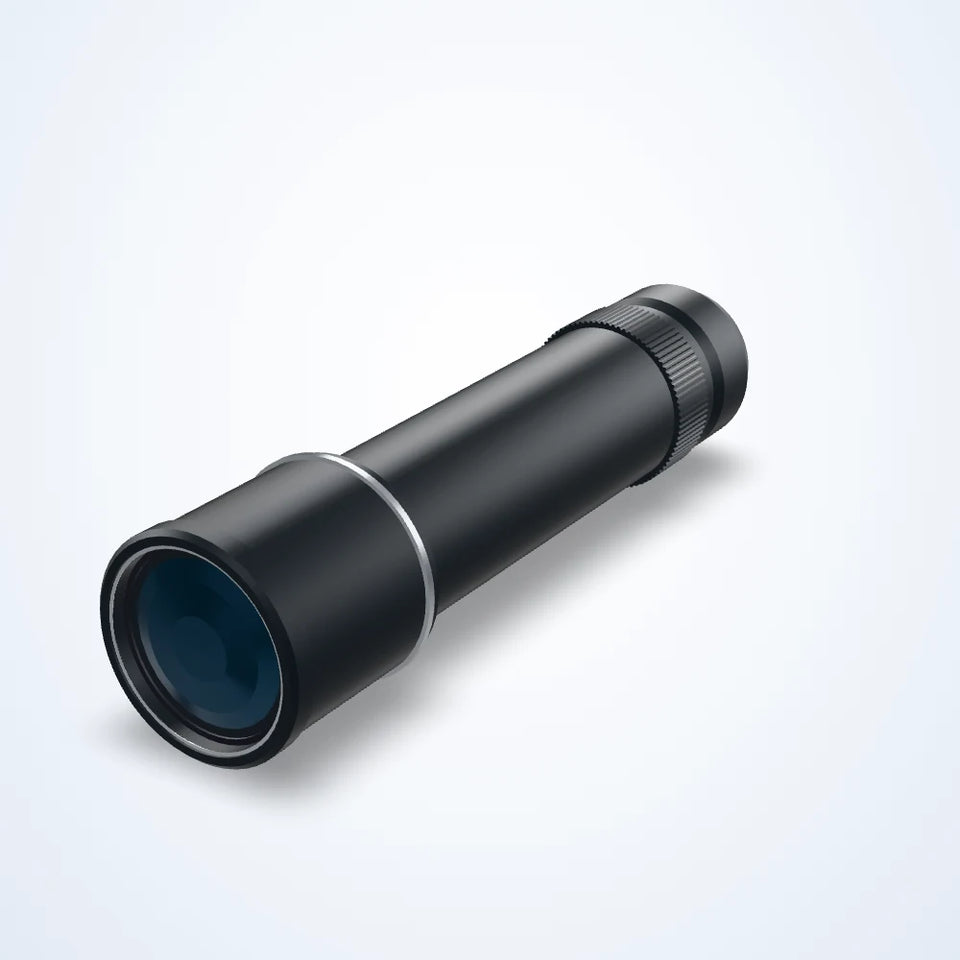

Bi-telecentric lenses, 1" (LS-TCL-S47)
- 25 models
- from $645.00
- Series LS-TCL-S47
The Bi-telecentric lenses, 1" (LS-TCL-S47) is a range of 25 telecentric lenses from LumaSpec Vision, from $645.00. It comes in 23 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.055x, WD 465 mm, 1", C-mount, 0.064x, WD 338 mm, 1", C-mount, 0.069x, WD 410 mm, 1", C-mount, 0.077x, WD 372 mm, 1", C-mount, 0.087x, WD 330 mm, 1", C-mount, 0.098x, WD 318 mm, 1", C-mount, 0.11x, WD 300 mm, 1", C-mount, 0.122x, WD 288 mm, 1", C-mount, 0.138x, WD 273 mm, 1", C-mount, 0.151x, WD 263 mm, 1", C-mount, 0.166x, WD 258 mm, 1", C-mount, 0.184x, WD 208 mm, 1", C-mount, 0.208x, WD 228 mm, 1", C-mount, 0.231x, WD 178 mm, 1", C-mount, 0.259x, WD 158 mm, 1", C-mount, 0.296x, WD 138 mm, 1", C-mount and 7 more
- Mount
- C-mount
- Image circle
- 11-16 mm
- Type
- Bi-telecentric, Object-side telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1"
- Resolution
- 6-10 MP
- Coaxial light
- Built-in coaxial light, No coaxial port
Features
- Constant magnification over the depth of field: size readings do not change with distance
- Low distortion for measurement
All 25 models in the Bi-telecentric lenses, 1" (LS-TCL-S47)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-1068 | 0.638x, WD 73 mm, 1", C-mount | 1" | 0.638x | 73±1 mm | $645.00 | View |
| LS-TCL-1066 | 0.5x, 1" | 16.0(1") | 0.5x | $670.00 | View | |
| LS-TCL-1063 | 0.46x, 1" | 16.0(1") | 0.46x | $700.00 | View | |
| LS-TCL-1067 | 0.5x, 1" | 16.0(1") | 0.5x | $715.00 | View | |
| LS-TCL-1064 | 0.46x, 1" | 16.0(1") | 0.46x | $750.00 | View | |
| LS-TCL-1065 | 0.46x, WD 110 mm, 1", C-mount | 1" | 0.46x | 110±2 mm | $750.00 | View |
| LS-TCL-1062 | 0.395x, WD 118 mm, 1", C-mount | 1" | 0.395x | 118±3 mm | $770.00 | View |
| LS-TCL-1060 | 0.346x, WD 128 mm, 1", C-mount | 1" | 0.346x | 128±3 mm | $850.00 | View |
| LS-TCL-1061 | 0.346x, WD 138 mm, 1", C-mount | 1" | 0.346x | 138±3 mm | $850.00 | View |
| LS-TCL-1058 | 0.259x, WD 158 mm, 1", C-mount | 1" | 0.259x | 158±3 mm | $1,060.00 | View |
| LS-TCL-1059 | 0.296x, WD 138 mm, 1", C-mount | 1" | 0.296x | 138±3 mm | $1,060.00 | View |
| LS-TCL-1057 | 0.231x, WD 178 mm, 1", C-mount | 1" | 0.231x | 178±3 mm | $1,285.00 | View |
| LS-TCL-1056 | 0.208x, WD 228 mm, 1", C-mount | 1" | 0.208x | 228±4 mm | $1,720.00 | View |
| LS-TCL-1053 | 0.151x, WD 263 mm, 1", C-mount | 1" | 0.151x | 263±4 mm | $1,875.00 | View |
| LS-TCL-1054 | 0.166x, WD 258 mm, 1", C-mount | 1" | 0.166x | 258±4 mm | $1,875.00 | View |
| LS-TCL-1055 | 0.184x, WD 208 mm, 1", C-mount | 1" | 0.184x | 208±3 mm | $1,925.00 | View |
| LS-TCL-1050 | 0.11x, WD 300 mm, 1", C-mount | 1" | 0.11x | 300±5 mm | $2,350.00 | View |
| LS-TCL-1051 | 0.122x, WD 288 mm, 1", C-mount | 1" | 0.122x | 288±5 mm | $2,350.00 | View |
| LS-TCL-1052 | 0.138x, WD 273 mm, 1", C-mount | 1" | 0.138x | 273±5 mm | $2,350.00 | View |
| LS-TCL-1049 | 0.098x, WD 318 mm, 1", C-mount | 1" | 0.098x | 318±5 mm | $3,000.00 | View |
| LS-TCL-1048 | 0.087x, WD 330 mm, 1", C-mount | 1" | 0.087x | 330±5 mm | $3,425.00 | View |
| LS-TCL-1047 | 0.077x, WD 372 mm, 1", C-mount | 1" | 0.077x | 372±5 mm | $4,925.00 | View |
| LS-TCL-1046 | 0.069x, WD 410 mm, 1", C-mount | 1" | 0.069x | 410±6 mm | $5,245.00 | View |
| LS-TCL-1045 | 0.064x, WD 338 mm, 1", C-mount | 1" | 0.064x | 338±5 mm | $8,025.00quote | View |
| LS-TCL-1044 | 0.055x, WD 465 mm, 1", C-mount | 1" | 0.055x | 465±6 mm | $8,560.00quote | View |
