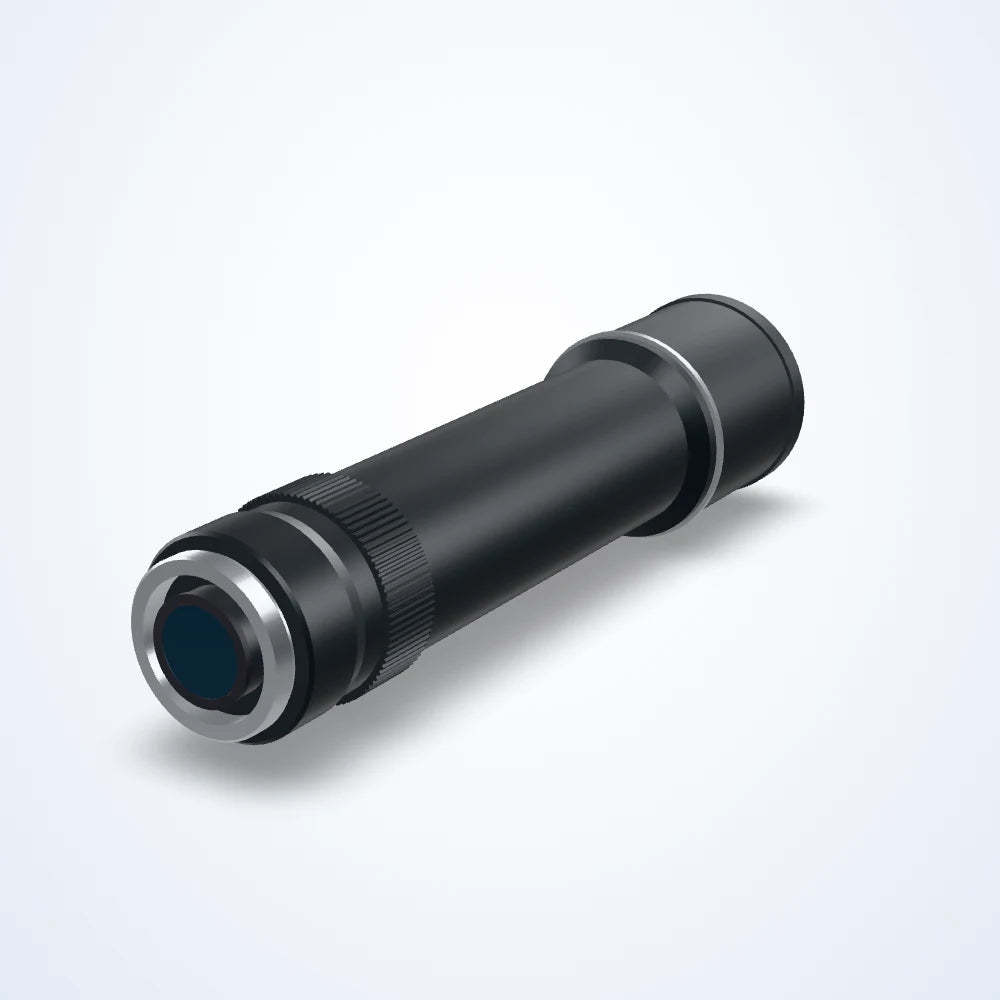

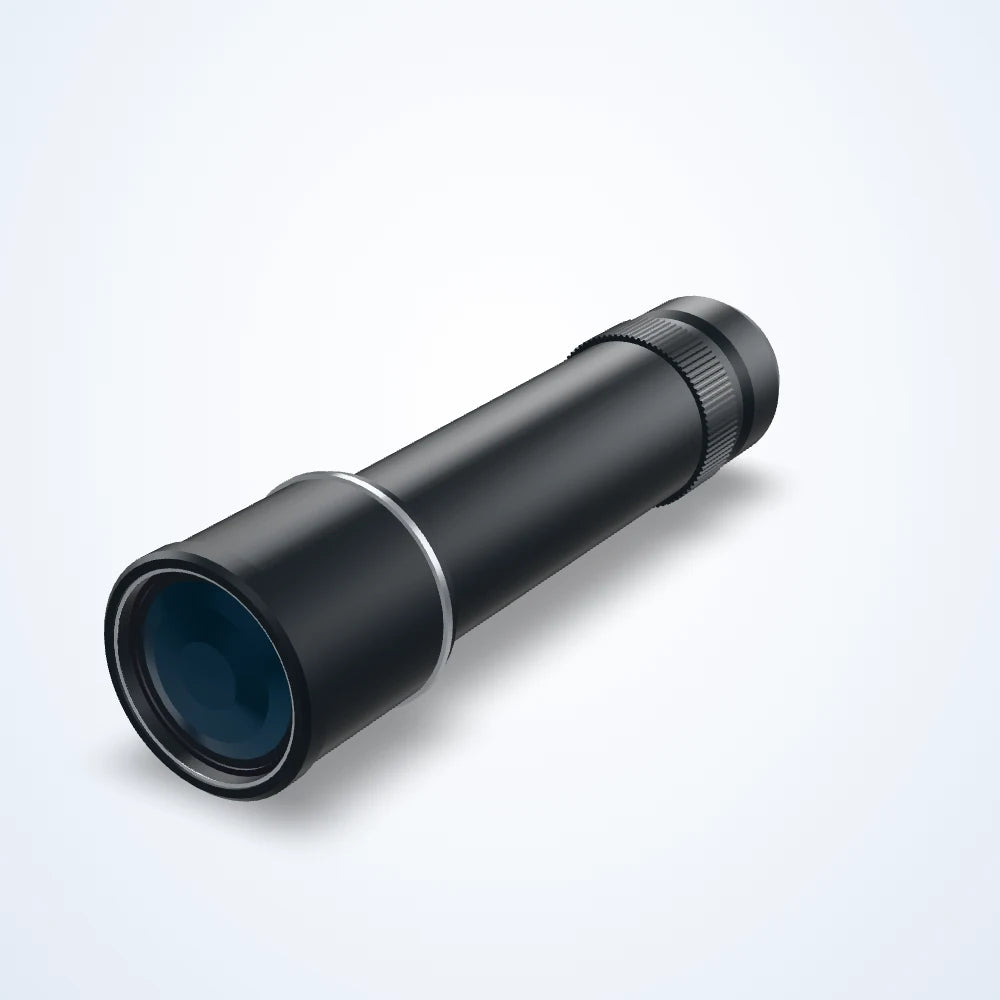

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.064x bi-telecentric lens, WD 338 mm, 1", C-mount (LS-TCL-1045)

Model LS-TCL-1045

  • Magnification0.064x
  • MountC-mount
  • Sensor1"
  • Working distance338±5 mm
  • Aperture6.5
  • Field of viewdia. 258 mm
$8,025.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

48.0 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.064x bi-telecentric lens, WD 338 mm, 1", C-mount (LS-TCL-1045)LS-TCL-1045

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.064x bi-telecentric lens for non-contact measurement and gauging. Magnification 0.064x; working distance 338 mm; covers sensors up to 1"; C-mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1045

Optics

Working distance338±5 mm
Field of viewdia. 258 mm
Magnification0.064x
Aperture6.5
MTF>140 lp/mm
Depth of field±156.3@F11
Distortion<0.1 % max
Telecentricity<0.1 ° max
Object-to-image distance804±5 mm

Sensor and imaging

Sensor format1"

Mechanical

MountC-mount
Length448.4 mm
Weight24.4 kg
