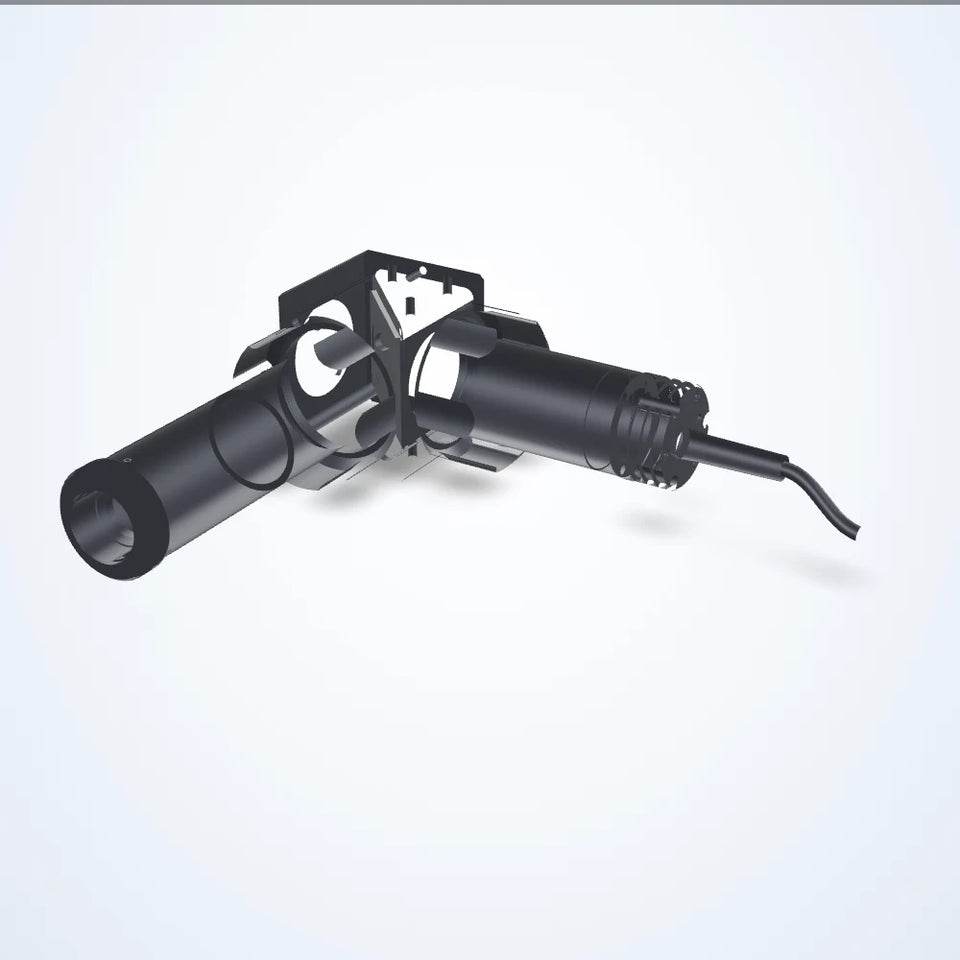

Telecentric lens series, C-mount, M8

  • 20 models
  • from $3,489.00
  • Series LS-TCL-S27

The Telecentric lens series, C-mount, M8 is a range of 20 telecentric lenses from LumaSpec Vision, from $3,489.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 20 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.11×, 0.138×, 0.184×, 0.243×, 0.5×, 0.66×, 0.75×, 1×, 1.5×
Mount
C-mount
Image circle
8-11 mm
Type
Object-side telecentric
Magnification
0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
Working distance
Under 65 mm, 65-110 mm
Sensor format
2/3"
Coaxial light
Built-in coaxial light

All 20 models in the Telecentric lens series, C-mount, M8

Link
LS-TCL-04150.5×15 μm78 mm525 nm$3,489.00quoteView
LS-TCL-04160.5×15 μm78 mm6000 K$3,489.00quoteView
LS-TCL-04170.66×12 μm78 mm525 nm$3,599.00quoteView
LS-TCL-04180.66×12 μm78 mm6000 K$3,599.00quoteView
LS-TCL-04190.75×10 μm78 mm525 nm$3,599.00quoteView
LS-TCL-04200.75×10 μm78 mm6000 K$3,599.00quoteView
LS-TCL-04130.243×21 μm20 mm525 nm$3,819.00quoteView
LS-TCL-04140.243×21 μm20 mm6000 K$3,819.00quoteView
LS-TCL-04211×8 μm78 mm525 nm$3,959.00quoteView
LS-TCL-04221×8 μm78 mm6000 K$3,959.00quoteView
LS-TCL-04231.5×7 μm78 mm525 nm$3,959.00quoteView
LS-TCL-04241.5×7 μm78 mm6000 K$3,959.00quoteView
LS-TCL-04110.184×28 μm35.6 mm525 nm$4,329.00quoteView
LS-TCL-04120.184×28 μm35.6 mm6000 K$4,329.00quoteView
LS-TCL-040932 μm525 nm$4,839.00quoteView
LS-TCL-041032 μm6000 K$4,839.00quoteView
LS-TCL-04070.138×37 μm64.4 mm525 nm$5,329.00quoteView
LS-TCL-04080.138×37 μm64.4 mm6000 K$5,329.00quoteView
LS-TCL-04050.11×46 μm89.6 mm525 nm$6,729.00quoteView
LS-TCL-04060.11×46 μm89.6 mm6000 K$6,729.00quoteView
