Telecentric lenses
0.5× telecentric lens, 2/3", C-mount, wavelength 525 nm, WD 78 mm (LS-TCL-0415)
Model LS-TCL-0415
- Magnification0.5×
- MountC-mount
- Sensor2/3"
- Working distance78 mm
- Resolution15 μm
$3,489.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8; working distance 78 mm; depth of field 2.5 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0415 |
|---|---|
| FOV @ 1/1.8″ | 14.26 x 10.66 mm |
| Fov @ 1/2.0″ | 12.80 x 9.60 mm |
| Fov @ 1/2.5″ | 11.40 x 8.56 mm |
| FOV @ 1/2″ | 12.80 x 9.60 mm |
| Fov @ 1/3.0″ | 9.60 x 7.20 mm |
| FOV @ 2/3″ | 17.00 x 14.18 mm |
| Lens type | Telecentric |
| Spectral fwhm | 40 nm |
| Working ƒ/n | f/12 |
Optics
| Magnification | 0.5× |
|---|---|
| Working distance | 78 mm |
| Depth of field | 2.5 mm |
| Distortion maximum (%) | < 0.2 |
| Distortion typical (%) | < 0.1 |
| Filter thread | No Filter Threads |
| Image circle | 11 mm |
| Telecentricity maximum | 0.06° |
| Telecentricity typical | < 0.04° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 15 μm |
Interfaces and I/O
| Connector | M8 |
|---|
Light
| LED current | 350 mA |
|---|---|
| LED voltage | 3.3 Volts |
| LED voltage maximum | 4 Volts |
| Light color | Green |
| Wavelength | 525 nm |
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Power consumption maximum | 2.5 Watts |
|---|---|
| Pulse current maximum | 2000 mA |
| Supply voltage | 12 - 24 Volts |
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions approximate | 185.5 x 64 x 155 mm |
| Installation location | Indoor Use Only |
| Weight | 972 Grams |
LS-TCL-0415

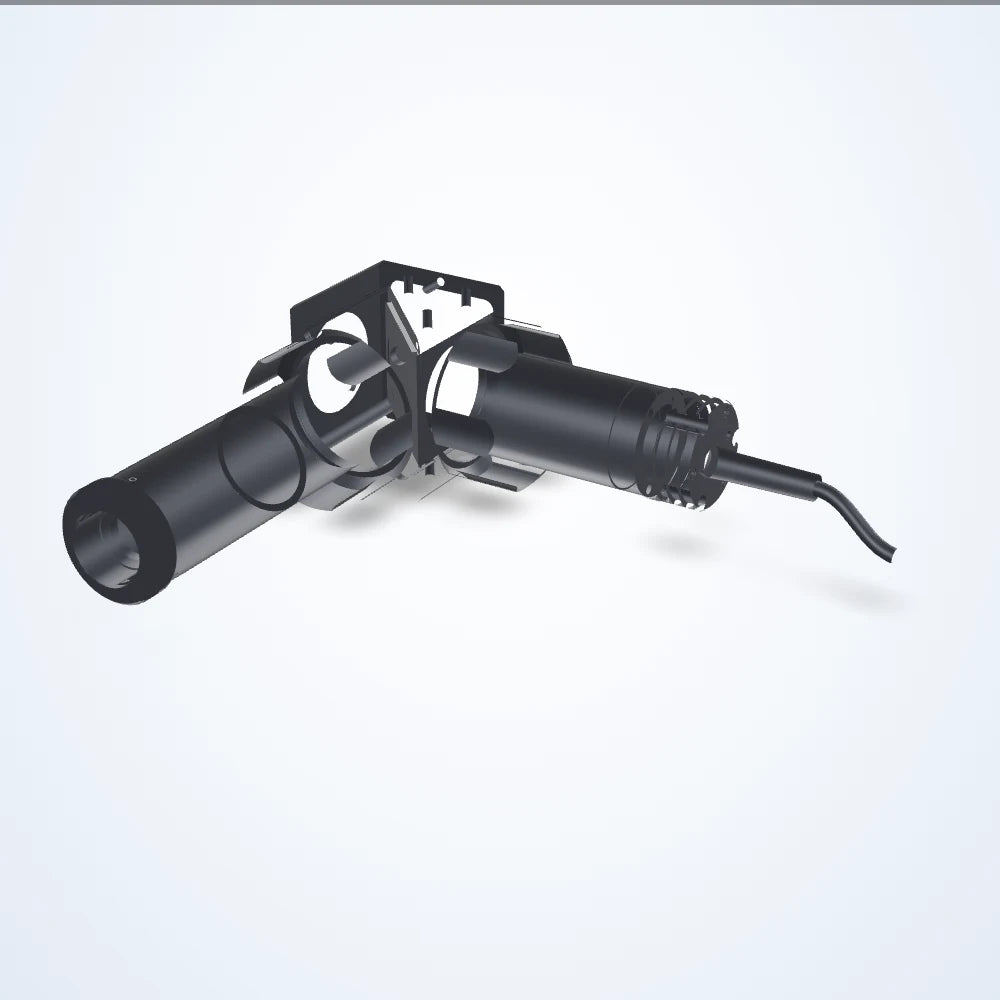

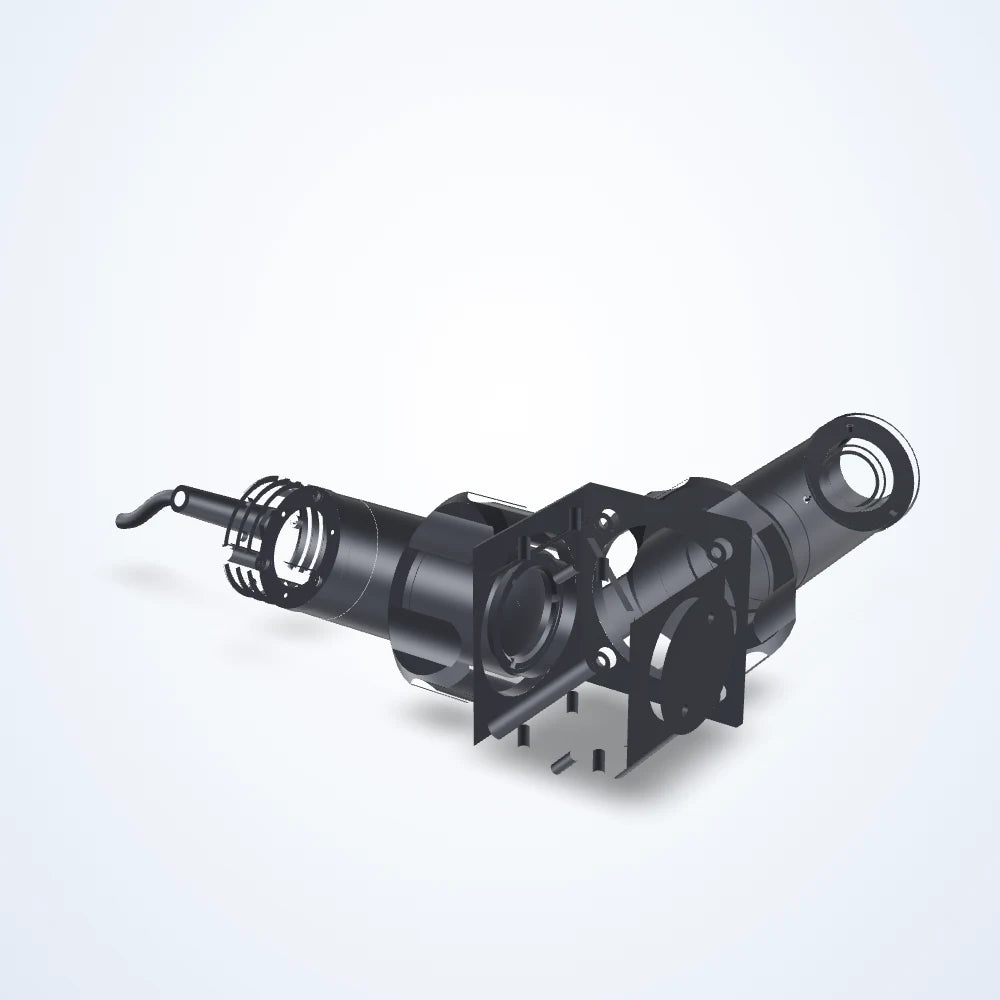

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 0.5×
- Sensor format
- 2/3"
- Mount
- C-mount
- Working distance
- 78 mm

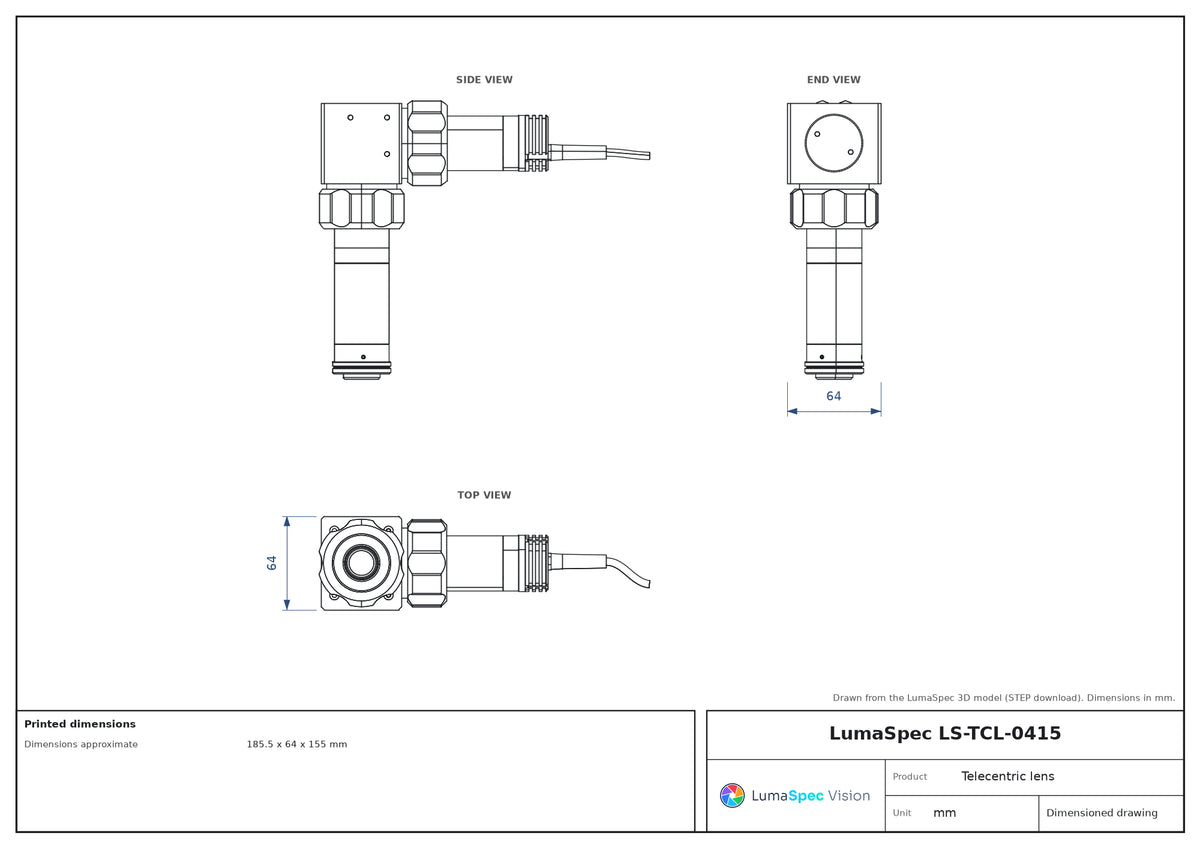

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
