0.75× telecentric lens, 2/3", C-mount, wavelength 525 nm (LS-TCL-0419)

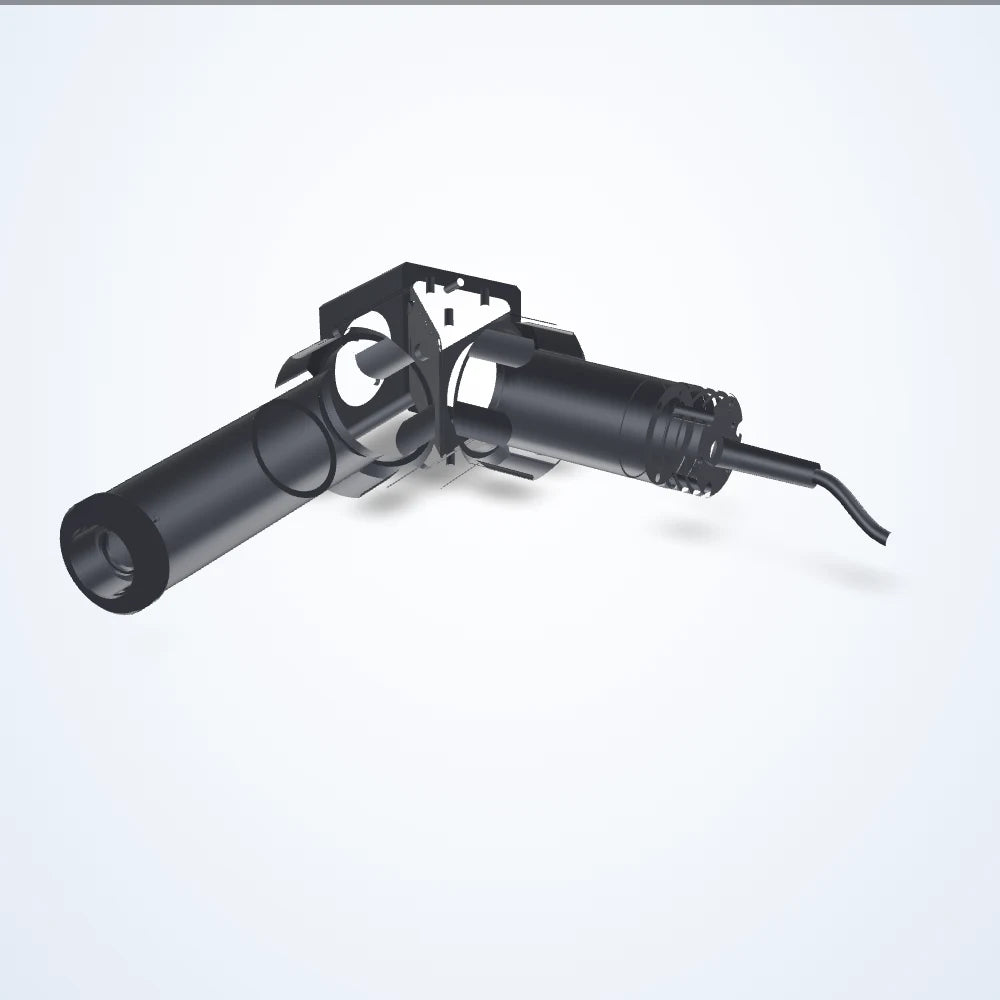

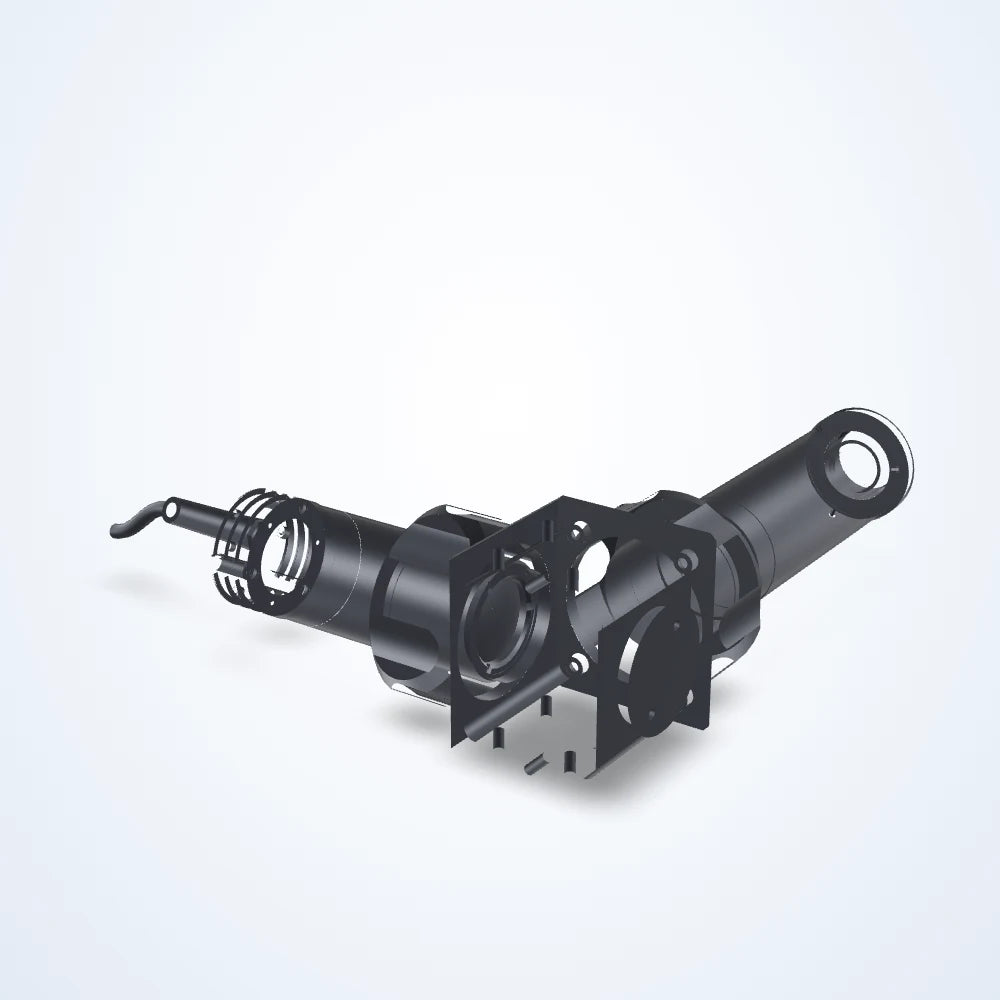

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.75× telecentric lens, 2/3", C-mount, wavelength 525 nm, WD 78 mm (LS-TCL-0419)

Model LS-TCL-0419

Magnification0.75×
MountC-mount
Sensor2/3"
Working distance78 mm
Resolution10 μm

$3,599.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8; working distance 78 mm; depth of field 1.1 mm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0419
FOV @ 1/1.8″	9.51 x 7.11 mm
Fov @ 1/2.0″	8.53 x 6.40 mm
Fov @ 1/2.5″	7.60 x 5.71 mm
FOV @ 1/2″	8.53 x 6.40 mm
Fov @ 1/3.0″	6.40 x 4.80 mm
FOV @ 2/3″	11.33 x 9.45 mm
Lens type	Telecentric
Spectral fwhm	40 nm
Working ƒ/n	f/12

Optics

Magnification	0.75×
Working distance	78 mm
Depth of field	1.1 mm
Distortion maximum (%)	< 0.2
Distortion typical (%)	< 0.1
Filter thread	No Filter Threads
Image circle	11 mm
Telecentricity maximum	0.06°
Telecentricity typical	< 0.04°

Sensor and imaging

Sensor format	2/3"
Resolution (pixel size)	10 μm

Interfaces and I/O

Connector	M8

Light

LED current	350 mA
LED voltage	3.3 Volts
LED voltage maximum	4 Volts
Light color	Green
Wavelength	525 nm

Environment and compliance

Operating relative humidity (%)	20-85 Non Condensing
Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Electrical

Power consumption maximum	2.5 Watts
Pulse current maximum	2000 mA
Supply voltage	12 - 24 Volts

Mechanical

Mount	C-mount

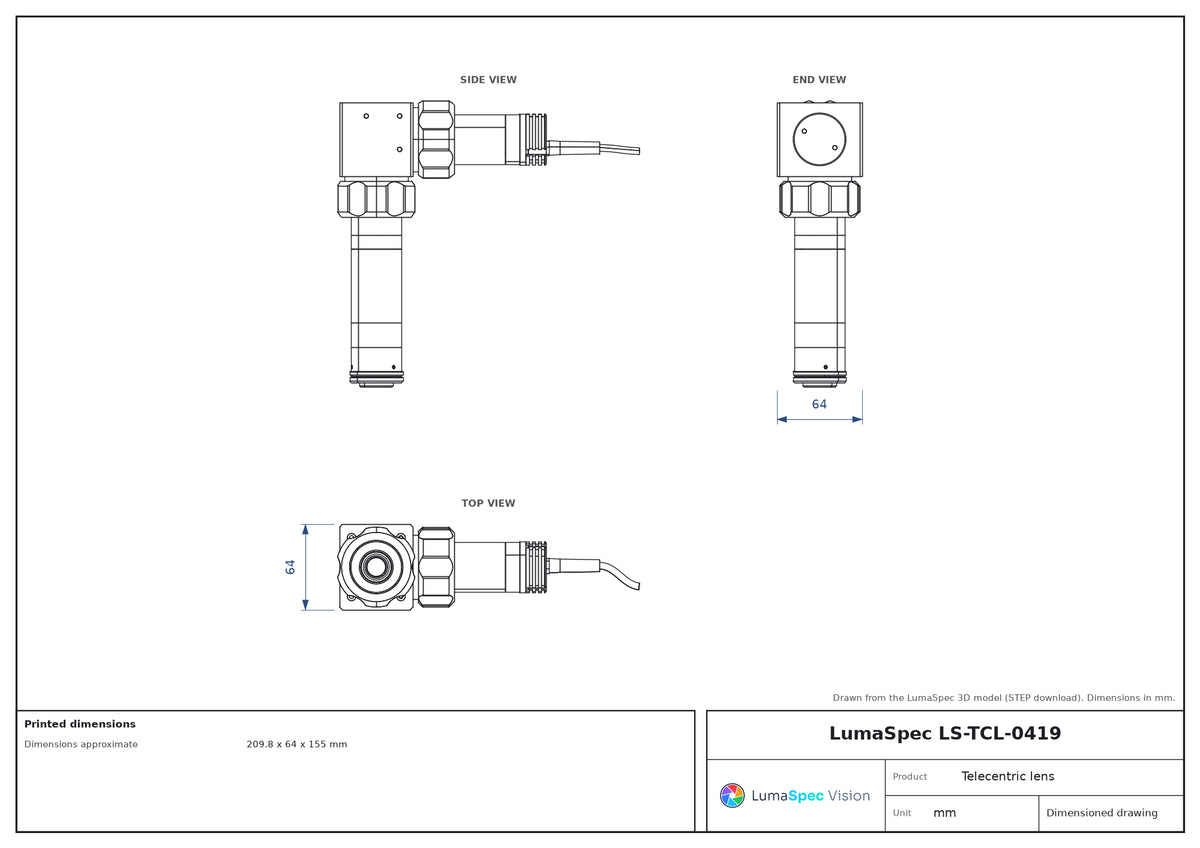

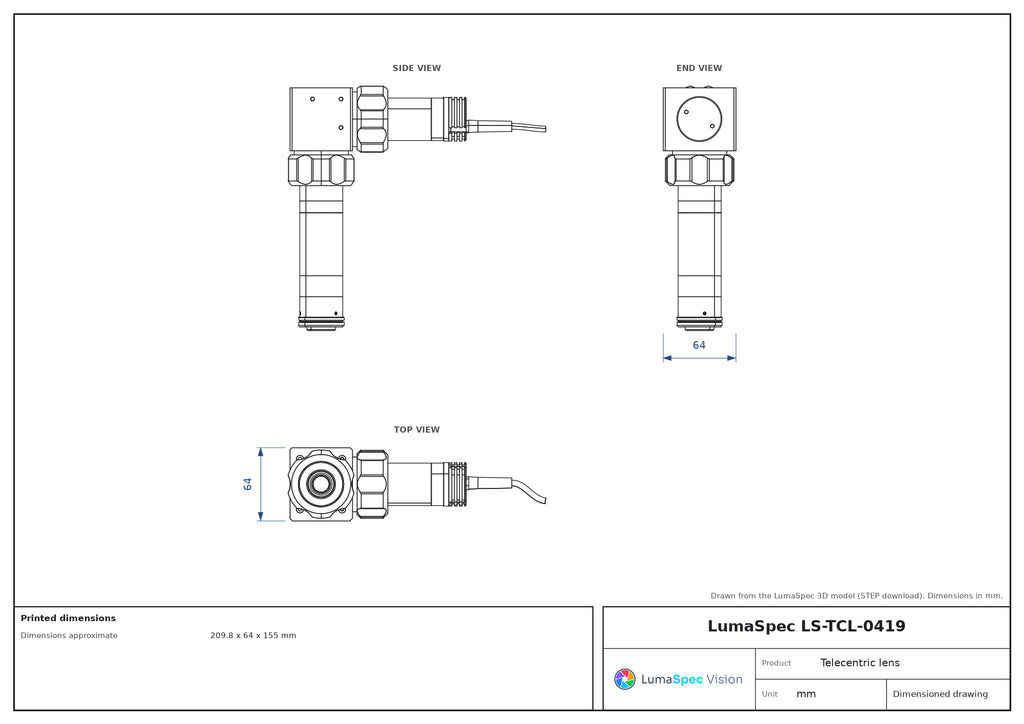

Dimensions approximate	209.8 x 64 x 155 mm
Installation location	Indoor Use Only
Weight	1041 Grams
