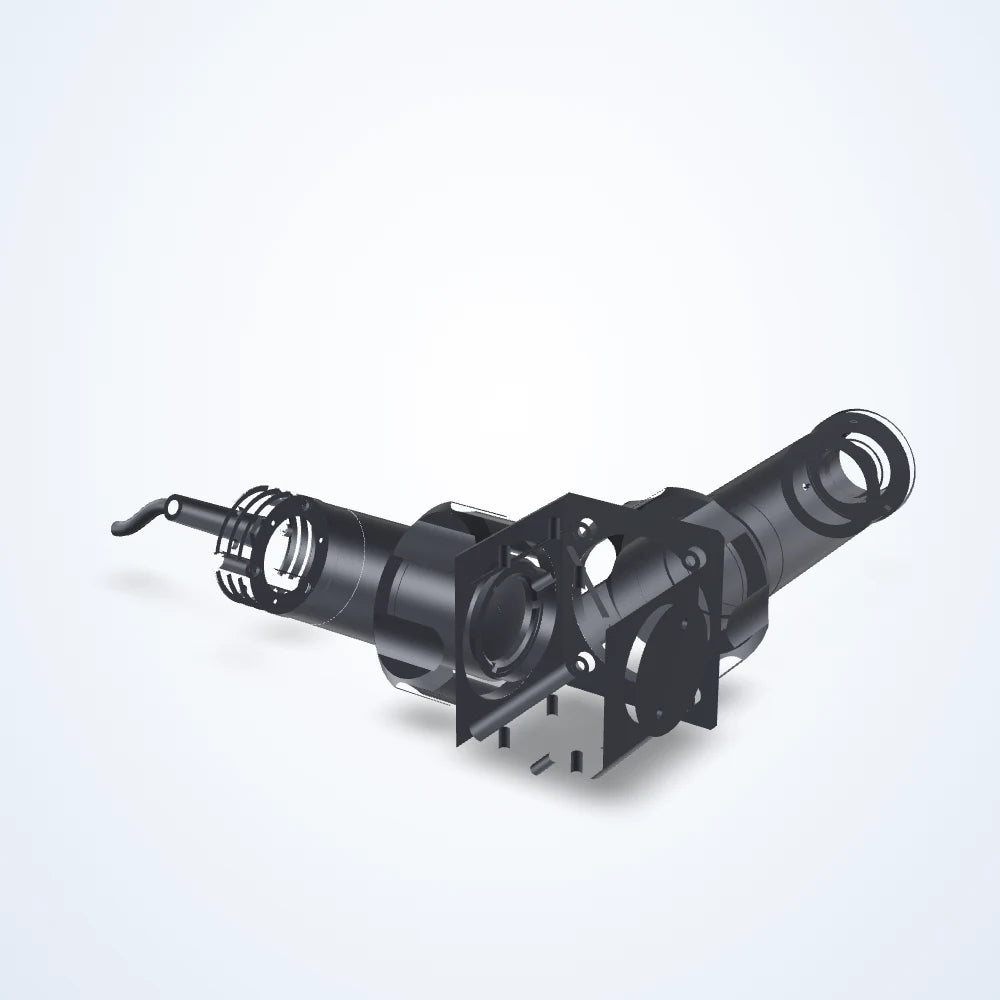

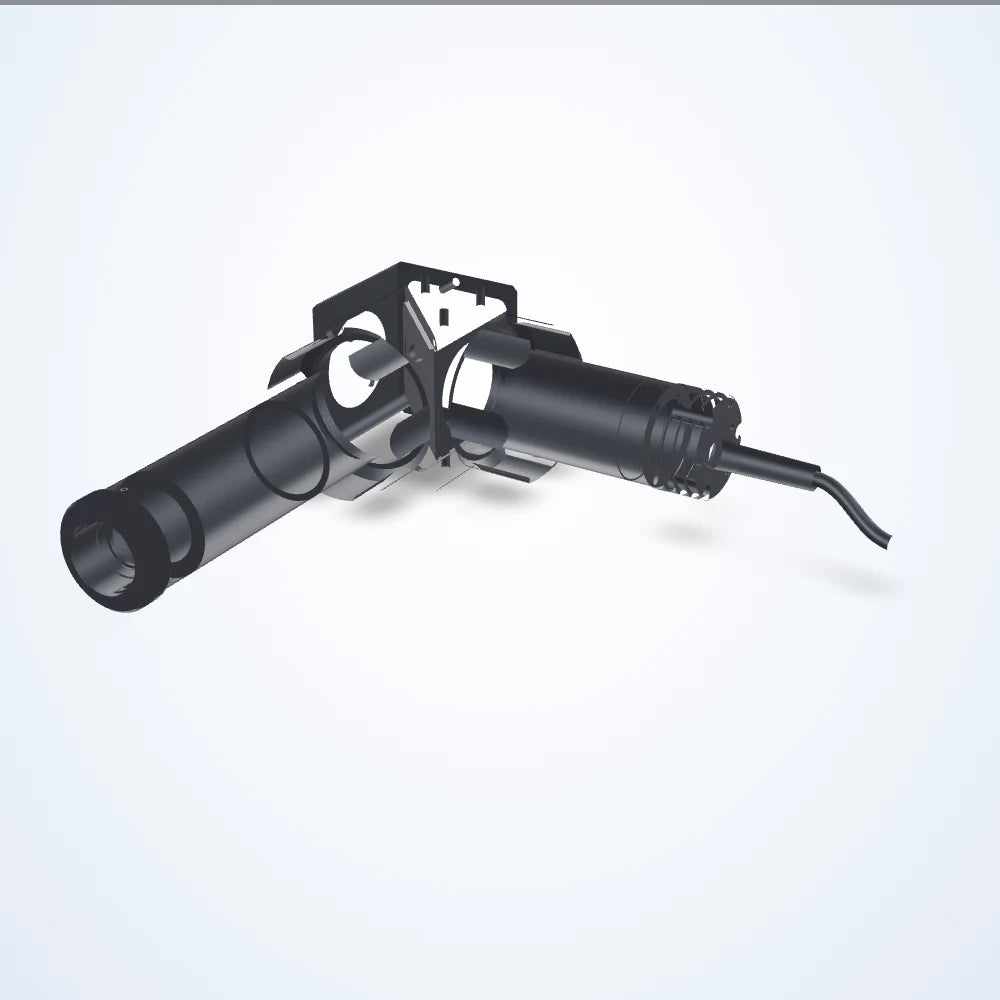

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.66× telecentric lens, 2/3", C-mount, wavelength 6000 K, WD 78 mm (LS-TCL-0418)

Model LS-TCL-0418

Magnification0.66×
MountC-mount
Sensor2/3"
Working distance78 mm
Resolution12 μm

$3,599.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8; working distance 78 mm; depth of field 1.4 mm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0418
FOV @ 1/1.8″	10.80 x 8.08 mm
Fov @ 1/2.0″	9.70 x 7.27 mm
Fov @ 1/2.5″	8.64 x 6.48 mm
FOV @ 1/2″	9.70 x 7.27 mm
Fov @ 1/3.0″	7.27 x 5.45 mm
FOV @ 2/3″	12.88 x 10.74 mm
Lens type	Telecentric
Working ƒ/n	f/12

Optics

Magnification	0.66×
Working distance	78 mm
Depth of field	1.4 mm
Distortion maximum (%)	< 0.2
Distortion typical (%)	< 0.1
Filter thread	No Filter Threads
Image circle	11 mm
Telecentricity maximum	0.06°
Telecentricity typical	< 0.04°

Sensor and imaging

Sensor format	2/3"
Resolution (pixel size)	12 μm

Interfaces and I/O

Connector	M8

Light

LED current	350 mA
LED voltage	2.8 Volts
Light color	White
Wavelength	6000 K

Environment and compliance

Operating relative humidity (%)	20-85 Non Condensing
Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Electrical

Power consumption maximum	2.5 Watts
Pulse current maximum	2000 mA
Supply voltage	12 - 24 Volts

Mechanical

Mount	C-mount

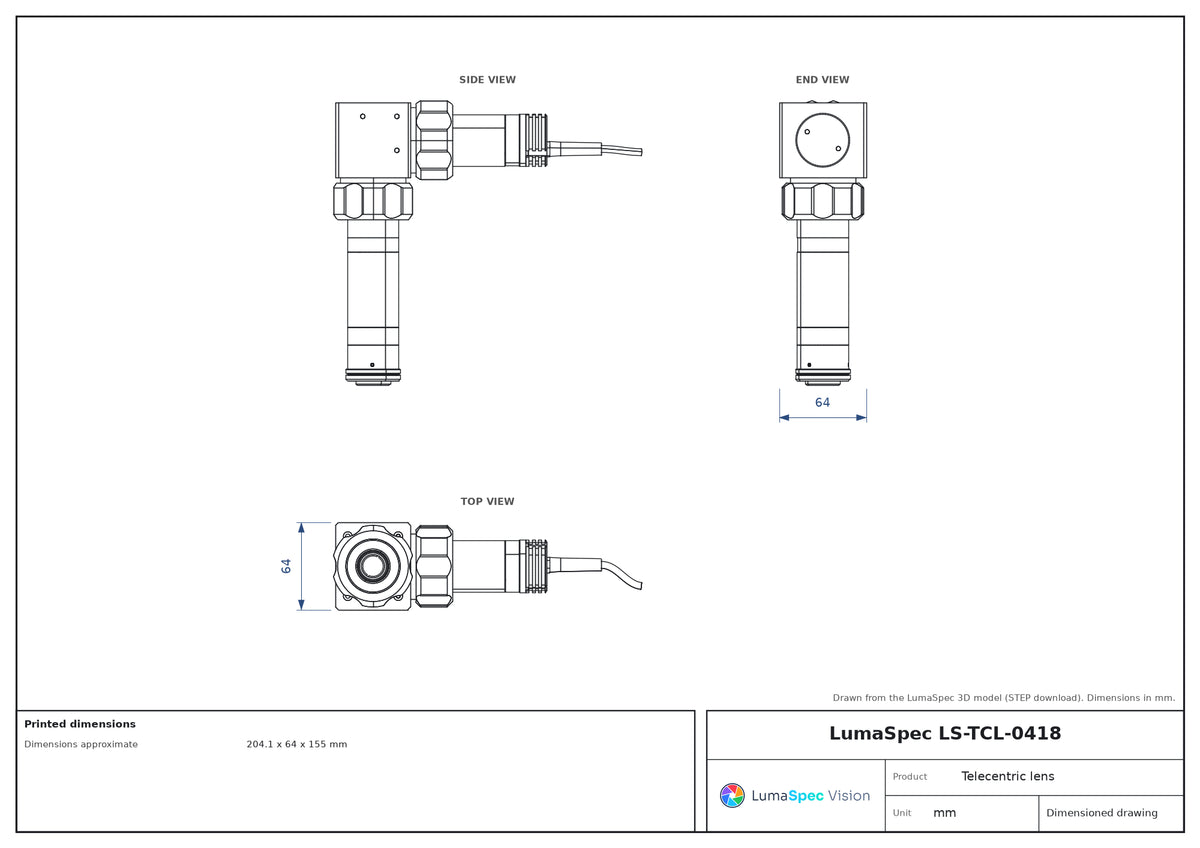

Dimensions approximate	204.1 x 64 x 155 mm
Installation location	Indoor Use Only
Weight	1025 Grams
