0.157× telecentric lens, 2/3", C-mount, wavelength 525 nm (LS-TCL-0409)

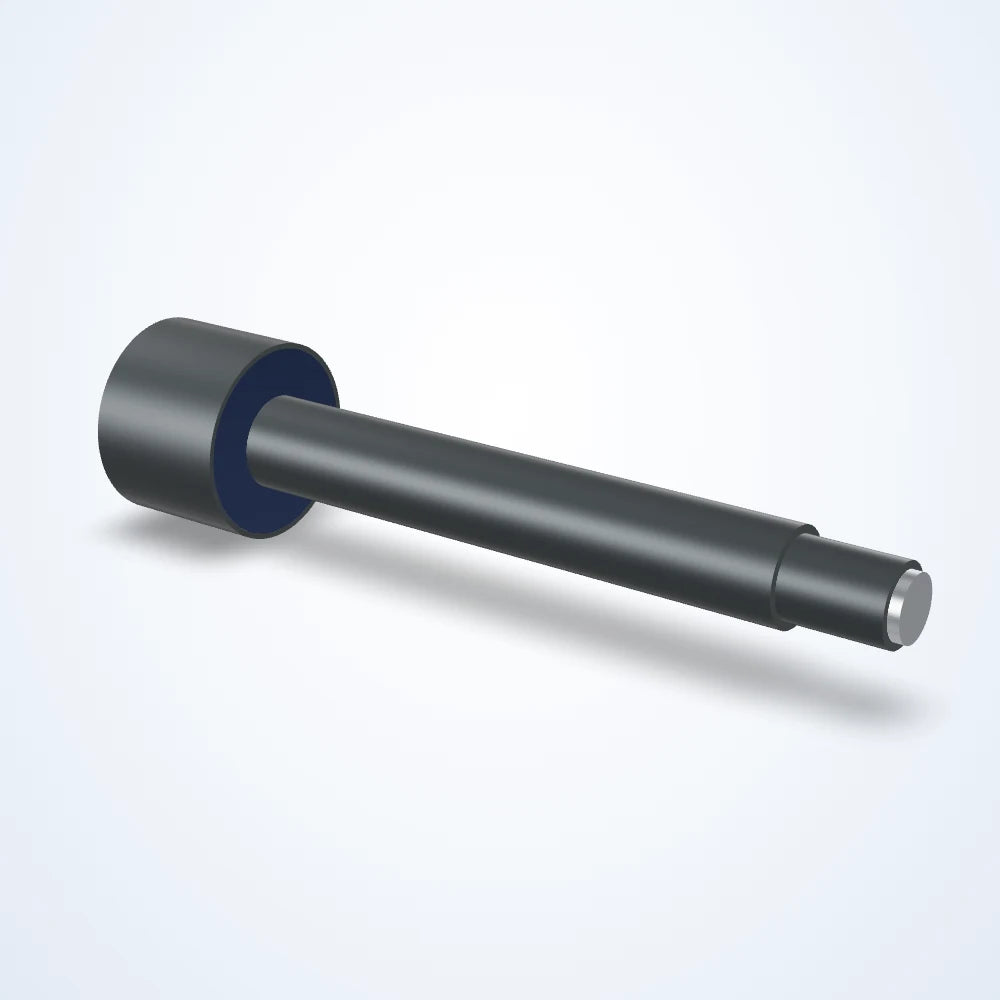

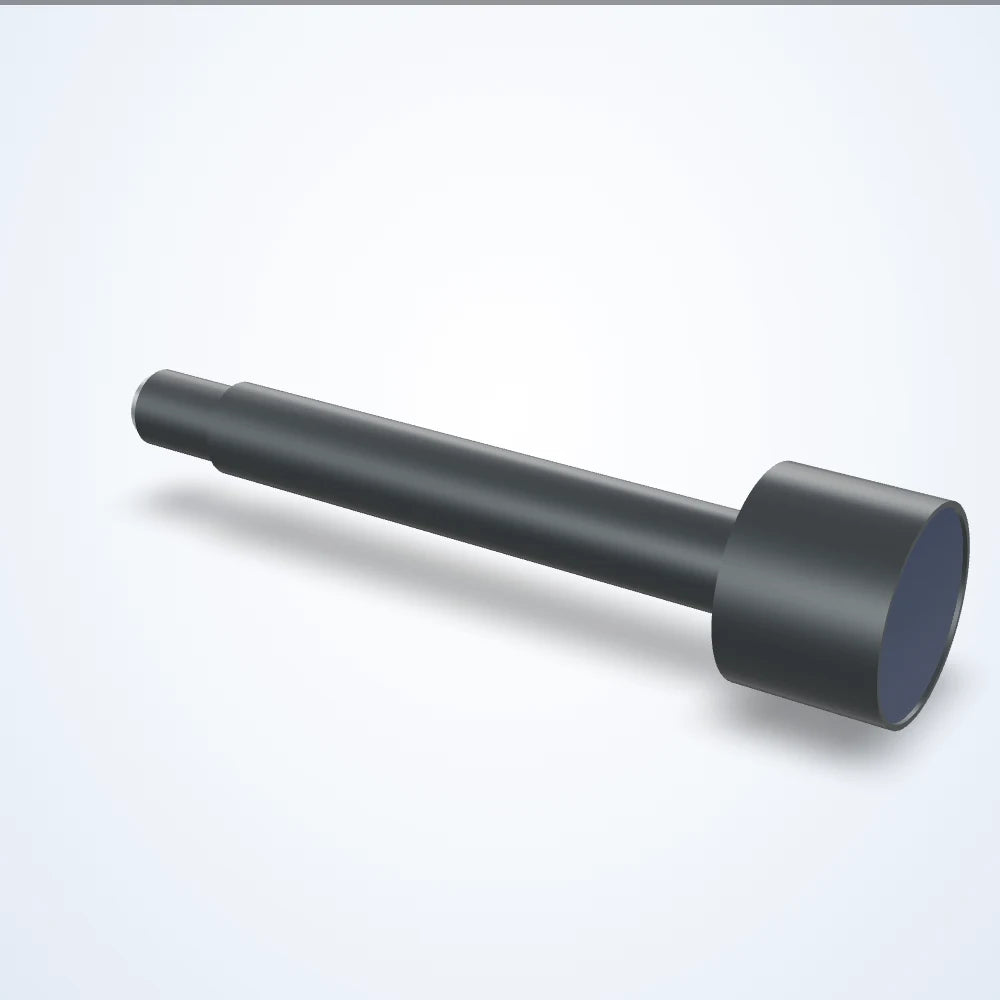

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.157× telecentric lens, 2/3", C-mount, wavelength 525 nm, 80 x 332.69 mm (LS-TCL-0409)

Model LS-TCL-0409

MountC-mount
Sensor2/3"
Resolution32 μm
Sensor format2/3"

$4,839.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0409
Cube depth	131.28 mm
FOV @ 1/1.8″	45.41 x 33.95 mm
Fov @ 1/2.0″	40.76 x 30.57 mm
Fov @ 1/2.5″	36.31 x 27.26 mm
FOV @ 1/2″	40.76 x 30.57 mm
Fov @ 1/3.0″	30.57 x 22.93 mm
FOV @ 2/3″	54.14 x 45.16 mm
Front	square cube face 108 x 108.28 mm, clear aperture Ø76.14
Lens type	Telecentric
Locking bush	yes
Spectral fwhm	40 nm
Type	coaxial-illumination telecentric (beam-splitter cube + side illuminator arm)
Working ƒ/n	f/8

Optics

Distortion maximum (%)	< 0.08
Distortion typical (%)	< 0.03
Image circle	11 mm
Telecentricity maximum	0.08°
Telecentricity typical	< 0.05°

Sensor and imaging

Resolution (pixel size)	32 μm

Interfaces and I/O

Connector	M8

Light

Illuminator arm length	318.82 mm
LED current	350 mA
LED voltage	3.3 Volts
LED voltage maximum	4 Volts
Light color	Green
Wavelength	525 nm

Environment and compliance

Operating relative humidity (%)	20-85 Non Condensing
Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Electrical

Power consumption maximum	2.5 Watts
Pulse current maximum	2000 mA
Supply voltage	12 - 24 Volts

Mechanical

Mount	C-mount
Clamping diameters	Ø80 h8, Ø61 h8, Ø37.80 h8

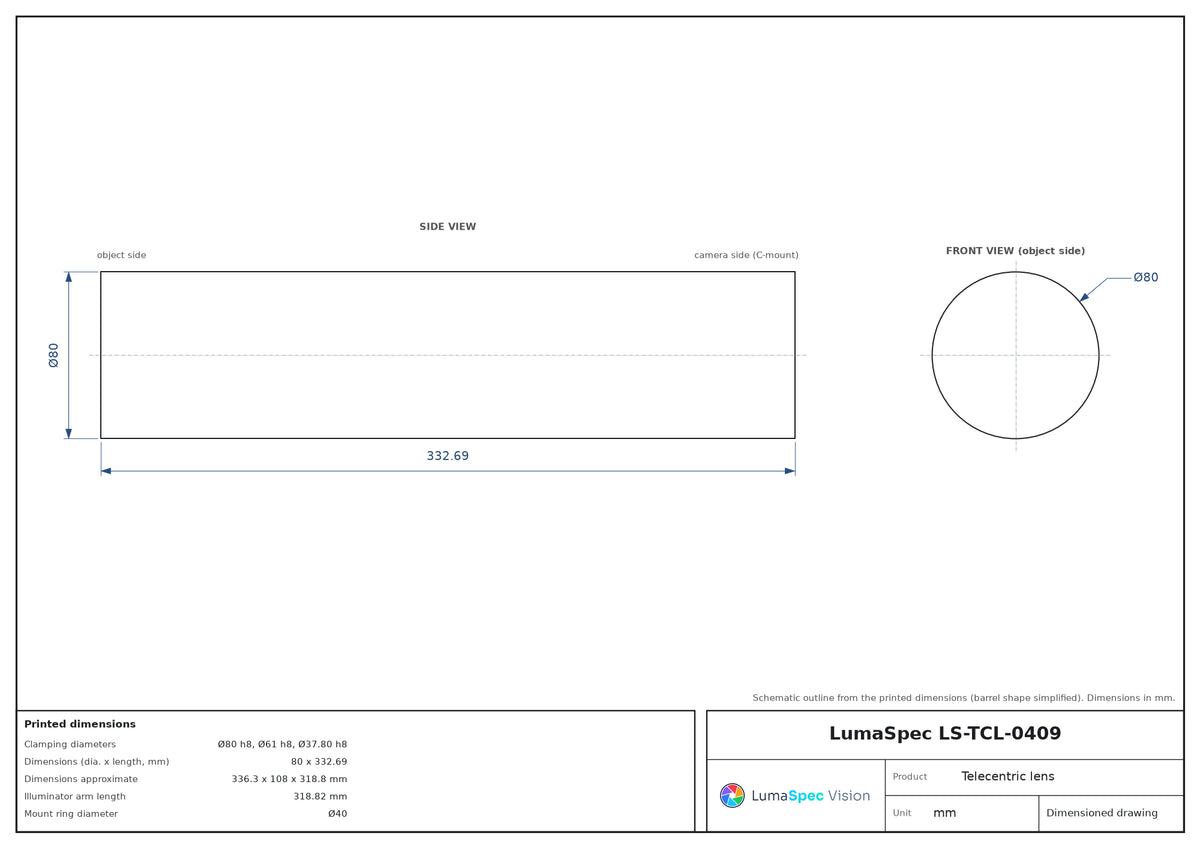

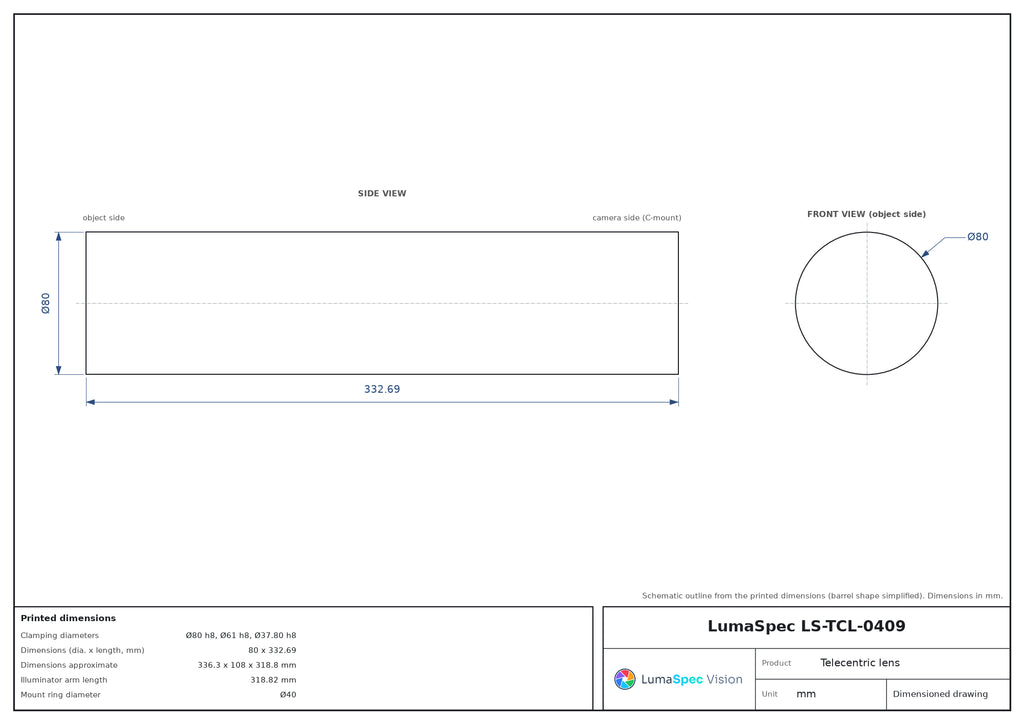

Dimensions (dia. x length, mm)	80 x 332.69
Dimensions approximate	336.3 x 108 x 318.8 mm
Installation location	Indoor Use Only
Mount ring diameter	Ø40
Mounting holes	3x M5 depth 10 per side
Weight (g)	3132
