Telecentric lenses

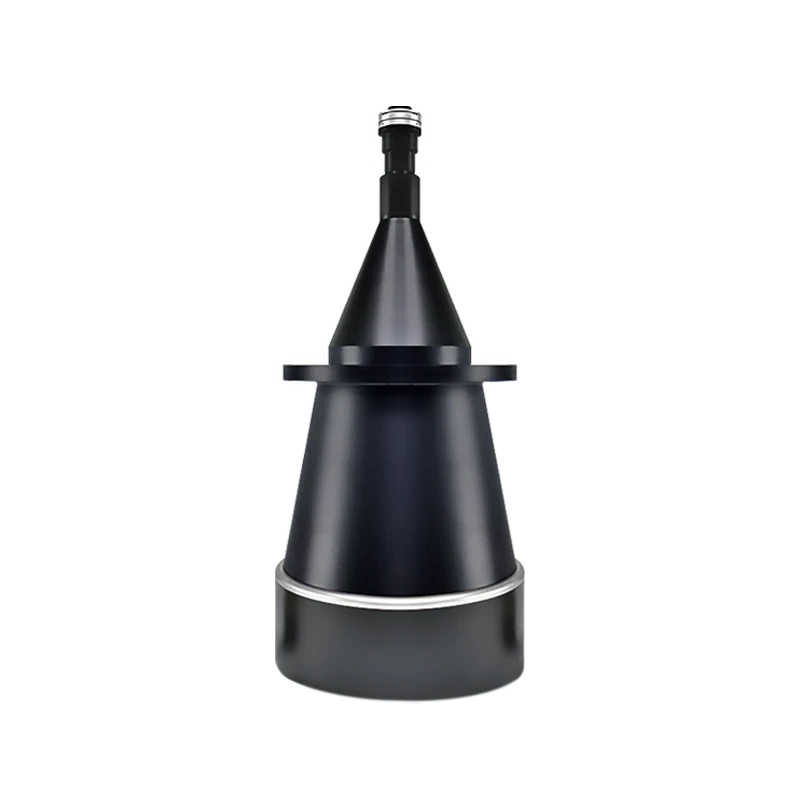

Bi-telecentric lens, large field (LS-TCL-S65)
- 30 models
- from $1,769.00
- Series LS-TCL-S65
The Bi-telecentric lens, large field (LS-TCL-S65) is a range of 30 telecentric lenses from LumaSpec Vision, from $1,769.00. It comes in 30 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.068x, WD 410 mm, 1", 0.073x, WD 320 mm, 2/3", 0.074x, WD 615 mm, 1/2", C-mount, 0.077x, WD 410 mm, 1.1", 0.08x, WD 280 mm, 2/3", 0.089x, WD 398 mm, 1", 0.09x, WD 260 mm, 2/3", 0.1x, WD 250 mm, 2/3", 0.1x, WD 398 mm, 1.1", 0.11x, WD 320 mm, 1", 0.12x, WD 250 mm, 2/3", 0.12x, WD 280 mm, 1", 0.123x, WD 320 mm, 1.1", 0.13x, WD 260 mm, 1", 0.136x, WD 280 mm, 1.1", 0.14x, WD 180 mm, 2/3" and 14 more
- Image circle
- Up to 8 mm, 8-11 mm, 11-16 mm, 16-22 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x
- Working distance
- 110-200 mm, 200 mm +
- Sensor format
- 1/2", 2/3", 1", 1.1" - 1.2"
- Mount
- C-mount
Features
- WD=615mm, Magnification 0.074X, DOF 111.49mm, Distortion TV<0.1%.
- Eliminate parallax and distortion .
- Compact Metallic construction; Multi-layer Coating; Magnification does not change with respect to depth.
- Suitable for mechanical parts measurement, electronic components inspection, glass inspection and other special applications.
All 30 models in the Bi-telecentric lens, large field (LS-TCL-S65)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2369 | 0.42x, WD 120 mm, 1.1" | 1.1" | 0.42 | 120 | $1,769.00 | View |
| LS-TCL-2367 | 0.24x, WD 120 mm, 2/3" | 2/3" | 0.24 | 120 | $1,859.00 | View |
| LS-TCL-2368 | 0.36x, WD 120 mm, 1.1" | 1.1" | 0.36 | 120 | $1,929.00 | View |
| LS-TCL-2370 | 0.29x, WD 138 mm, 1.1" | 1.1" | 0.29 | 138 | $2,199.00 | View |
| LS-TCL-2373 | 0.28x, WD 160 mm, 1.1" | 1.1" | 0.28 | 160 | $2,249.00 | View |
| LS-TCL-2371 | 0.17x, WD 160 mm, 2/3" | 2/3" | 0.17 | 160 | $2,289.00 | View |
| LS-TCL-2372 | 0.25x, WD 160 mm, 1.1" | 1.1" | 0.25 | 160 | $2,419.00 | View |
| LS-TCL-2376 | 0.23x, WD 180 mm, 1.1" | 1.1" | 0.23 | 180 | $2,559.00 | View |
| LS-TCL-2375 | 0.14x, WD 180 mm, 2/3" | 2/3" | 0.14 | 180 | $2,609.00 | View |
| LS-TCL-2374 | 0.2x, WD 180 mm, 1.1" | 1.1" | 0.2 | 180 | $2,819.00 | View |
| LS-TCL-2378 | 0.2x, WD 250 mm, 1.1" | 1.1" | 0.2 | 250 | $2,819.00 | View |
| LS-TCL-2379 | 0.12x, WD 250 mm, 2/3" | 2/3" | 0.12 | 250 | $2,909.00 | View |
| LS-TCL-2381 | 0.18x, WD 250 mm, 1.1" | 1.1" | 0.18 | 250 | $3,049.00 | View |
| LS-TCL-2382 | 0.168x, WD 250 mm, 1.1" | 1.1" | 0.168 | 250 | $3,209.00 | View |
| LS-TCL-2380 | 0.15x, WD 250 mm, 1" | 1" | 0.15 | 250 | $3,249.00 | View |
| LS-TCL-2396 | 0.074x, WD 615 mm, 1/2", C-mount | 1/2"dia. 19.3mm | 0.074 | 615 | $3,289.00 | View |
| LS-TCL-2377 | 0.1x, WD 250 mm, 2/3" | 2/3" | 0.1 | 250 | $3,329.00 | View |
| LS-TCL-2385 | 0.153x, WD 260 mm, 1.1" | 1.1" | 0.153 | 260 | $3,439.00 | View |
| LS-TCL-2383 | 0.09x, WD 260 mm, 2/3" | 2/3" | 0.09 | 260 | $3,609.00 | View |
| LS-TCL-2384 | 0.13x, WD 260 mm, 1" | 1" | 0.13 | 260 | $3,629.00 | View |
| LS-TCL-2388 | 0.136x, WD 280 mm, 1.1" | 1.1" | 0.136 | 280 | $3,769.00 | View |
| LS-TCL-2387 | 0.12x, WD 280 mm, 1" | 1" | 0.12 | 280 | $3,859.00 | View |
| LS-TCL-2386 | 0.08x, WD 280 mm, 2/3" | 2/3" | 0.08 | 280 | $3,959.00 | View |
| LS-TCL-2391 | 0.123x, WD 320 mm, 1.1" | 1.1" | 0.123 | 320 | $4,089.00 | View |
| LS-TCL-2389 | 0.11x, WD 320 mm, 1" | 1" | 0.11 | 320 | $4,139.00 | View |
| LS-TCL-2390 | 0.073x, WD 320 mm, 2/3" | 2/3" | 0.073 | 320 | $4,259.00 | View |
| LS-TCL-2392 | 0.1x, WD 398 mm, 1.1" | 1.1" | 0.1 | 398 | $4,839.00 | View |
| LS-TCL-2393 | 0.089x, WD 398 mm, 1" | 1" | 0.089 | 398 | $4,929.00 | View |
| LS-TCL-2395 | 0.077x, WD 410 mm, 1.1" | 1.1" | 0.077 | 410 | $6,049.00 | View |
| LS-TCL-2394 | 0.068x, WD 410 mm, 1" | 1" | 0.068 | 410 | $6,199.00 | View |
