Telecentric lenses

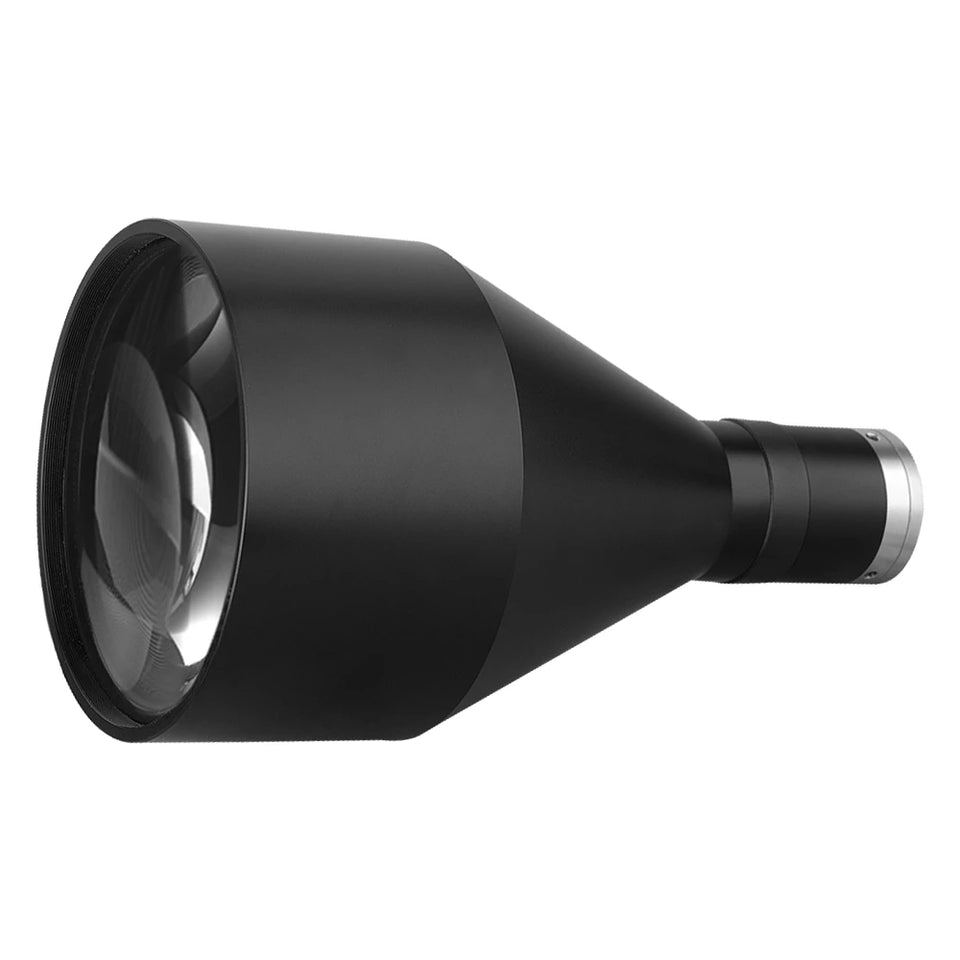

Bi-telecentric lens for 1/2.3" cameras - B variant (LS-TCL-S76)
- 11 models
- from $1,399.00
- Series LS-TCL-S76
The Bi-telecentric lens for 1/2.3" cameras - B variant (LS-TCL-S76) is a range of 11 telecentric lenses from LumaSpec Vision, from $1,399.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.08x, WD 238 mm, 1/2", C-mount, 0.09x, WD 208 mm, 1/2", C-mount, 0.1x, WD 230 mm, 1/2", C-mount, 0.111x, WD 178 mm, 1/2", C-mount, 0.124x, WD 159 mm, 1/2", C-mount, 0.125x, WD 187 mm, 1/2", C-mount, 0.143x, WD 138 mm, 1/2", C-mount, 0.166x, WD 128 mm, 1/2", C-mount, 0.19x, WD 118 mm, 1/2", C-mount, 0.221x, WD 111 mm, 1/2", C-mount, 0.308x, WD 72 mm, 1/2", C-mount
- Mount
- C-mount
- Image circle
- Up to 8 mm
- Type
- Bi-telecentric
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1/2"
All 11 models in the Bi-telecentric lens for 1/2.3" cameras - B variant (LS-TCL-S76)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2556 | 0.308x, WD 72 mm, 1/2", C-mount | 72±2 | 4.7 | 20.9x15.0 | $1,399.00 | View |
| LS-TCL-2557 | 0.221x, WD 111 mm, 1/2", C-mount | 111±2 | 4.18 | 29.1x20.9 | $1,629.00 | View |
| LS-TCL-2558 | 0.19x, WD 118 mm, 1/2", C-mount | 118±2 | 4.18 | 33.8x24.3 | $1,769.00 | View |
| LS-TCL-2559 | 0.166x, WD 128 mm, 1/2", C-mount | 128±2 | 4.18 | 38.7x27.8 | $1,899.00 | View |
| LS-TCL-2560 | 0.143x, WD 138 mm, 1/2", C-mount | 138±2 | 4.18 | 45.0x32.3 | $2,089.00 | View |
| LS-TCL-2561 | 0.125x, WD 187 mm, 1/2", C-mount | 187±2 | 4.18 | 51.5x36.9 | $2,269.00 | View |
| LS-TCL-2562 | 0.124x, WD 159 mm, 1/2", C-mount | 159±2 | 4.18 | 51.9x37.2 | $2,279.00 | View |
| LS-TCL-2563 | 0.111x, WD 178 mm, 1/2", C-mount | 178±2 | 4.18 | 58.0x41.6 | $2,459.00 | View |
| LS-TCL-2564 | 0.1x, WD 230 mm, 1/2", C-mount | 230±2 | 4.18 | 64.4x46.2 | $2,649.00 | View |
| LS-TCL-2565 | 0.09x, WD 208 mm, 1/2", C-mount | 208±3 | 4.18 | 71.5x51.3 | $2,879.00 | View |
| LS-TCL-2566 | 0.08x, WD 238 mm, 1/2", C-mount | 238±3 | 4.18 | 80.5x57.7 | $3,139.00 | View |
